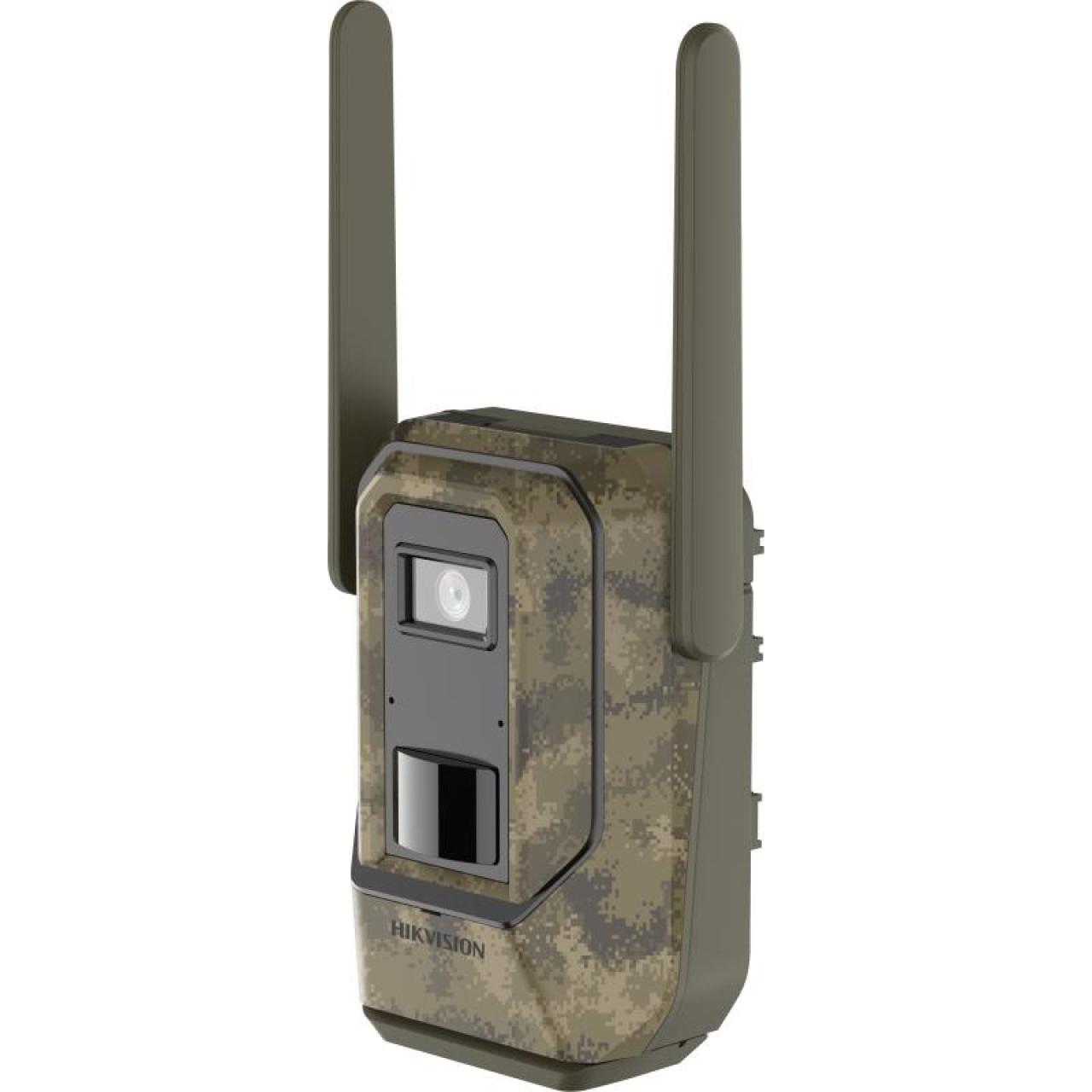

8MP Wildlife Network Camera

High-sensitivity PIR detector to realize accurate detection of wild animals and high-definition image acquisition with the detection range covering horizontal 90° ± 5°
Ultra-low power consumption: support sleep mode and performance mode. In sleep mode, the standby time can be up to 125 days
Support short-range WLAN AP function to conveniently debug, record, and preview the video
Clear imaging against strong back light due to 120 dB true WDR technology
Advanced infrared technology with IR distance up to 15 m
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Supports LTE-TDD/LTE-FDD/WCDMA/GSM to realize wireless connection
Supports GPS positioning
Built-in microphone for real-time audio security

View Less

Data Sheet

Available models:

DS-2XS6F85G1-IC1/4G(2.8mm)

DS-2XS6F85G1-I(L)C1/4G

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen 1/1.8" Progressive Scan CMOS
Max. Resolución 3840 × 2160 (only for captured pictures), 8 MP only for captured pictures, 4 MP maximum for video
Iluminación mínima Color: 0.003 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Tiempo de obturación 1 s to 1/100,000 s
Día y Noche -I: IR cut filter, -L: 24/7 color imaging

Lente
Focal Length & FOV 2.8 mm, horizontal FOV 108.1°, vertical FOV 53.2°, diagonal FOV 132.7° 4 mm, horizontal FOV 87.6°°, vertical FOV 46.0°, diagonal FOV 103.5°
Apertura F1.6
Montura del lente M12

DORI
DORI 2.8 mm: D: 97.4 m, O: 38.7 m, R: 19.5 m, I: 9.7 m 4 mm: D: 111.2 m, O: 44.1 m, R: 22.2 m, I: 11.1 m

Iluminador
Tipo de luz suplementaria -I: IR, -L: White Light
IR Wavelength -I: 850 nm
Rango de luz suplementaria Up to 15 m
Luz de suplemento inteligente Yes

Vídeo
Main stream 50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Compresión de video Main stream: H.265
Vídeo bitrate 32 Kbps to 8 Mbps
Tipo H.265 Baseline Profile,Main Profile,High Profile
Bit Rate Control CBR,VBR
Codificación de video escalable (SVC) H.265

Audio
Filtro de ruido ambiental Yes
Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/48 kHz
Compresión de audio G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Tipo de audio Mono sound

Red
Vista en vivo simultánea Up to 6 channels
API Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
Protocolos TCP/IP, IPv6, DDNS, RTSP, HTTPS, HTTP, FTP, QoS, Bonjour, SNMP, WebSocket, WebSockets
Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
Almacenamiento en red Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Cliente iVMS-4200,Hik-Connect
Navegador web Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Safari 13+, Edge 89+

Mobile Communication
Frecuencia LTE-TDD Band 38/40/41 LTE-FDD Band 1/3/5/7/8/20/28 WCDMA Band 1/5/8 GSM 850/900/1800MHz
Estándar LTE-TDD/LTE-FDD/WCDMA/GSM

Imagen
Interruptor día/noche Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
Superposición de imagen LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Mejora de la imagen BLC,HLC,Defog,3D DNR
Interruptor de parámetros de imagen Yes
Configuración de imagen Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser
SNR ≥ 52 dB

Transducer
Transducer Type PIR
Rango de detección Up to 15 m
Detection Angle 2.8 mm: Horizontal: 90° ± 5°, vertical: 25° ± 5°; 4 mm: Horizontal: 50° ± 5°, vertical: 20° ± 5°

Posicionamiento satelital
Satellite Positioning Detection Support GPS and searching longitude and latitude of the device

Interfaz
Micrófono incorporado 1 built-in microphone
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Ethernet Interface 1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)
Reset Key Yes, Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.

Evento
Evento Básico Exception,PIR Alarm
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording

General
alimentación 6 to 15 VDC, 1.03 to 0.73 A, max. 6.2 W
Función general Heartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter
Material Plastic
Dimensión With antennas folded: 172.8 mm × 139.7 mm × 86.7 mm (6.8" × 5.5" × 3.4"), with antennas extending: 283.3 mm × 139.7 mm × 86.7 mm (11.2" × 5.5" × 3.4")
Idioma 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Dimensión del paquete 260 mm × 217 mm × 241 mm (10.2" × 8.5" × 9.5")
Approx. 0.63 kg (1.39 lb.)
Con peso del paquete Approx. 1.588 kg (3.5 lb.)
Condiciones de almacenaje -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

batería
Tipo de batería Chargeable lithium battery or 5AA dry cell
Voltaje de la batería Rated voltage: 7.2 VDC Charging voltage: 8.4 VDC Discharging cut-off voltage: 5.6 VDC
Capacidad 9.4 Ah
Temperatura de funcionamiento -20 °C to 60°C (-4 °F to 140 °F)
Ciclo de vida Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night), uploads once per day, and keeps alive for 3 hours per day with the ambient temperature at 25 °C (77 °F). Cycle lifetime: 125 days Make sure the battery is fully charged before using the device.

Certificaciones
RF CE-RED: EN 301489-1 V2.2.3, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300 328 V2.2.2, EN IEC 62311:2020
EMC CE-EMC: EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014, RCM: AS/NZS CISPR 32: 2015
Seguridad CB: IEC 62368-1: 2014+A11
Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección IP67: IEC 60529-2013

Cámara

Sensor de imagen

1/1.8" Progressive Scan CMOS

Max. Resolución

3840 × 2160 (only for captured pictures), 8 MP only for captured pictures, 4 MP maximum for video

Iluminación mínima

Color: 0.003 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR

Tiempo de obturación

1 s to 1/100,000 s

Día y Noche

-I: IR cut filter, -L: 24/7 color imaging

Lente

Focal Length & FOV

2.8 mm, horizontal FOV 108.1°, vertical FOV 53.2°, diagonal FOV 132.7° 4 mm, horizontal FOV 87.6°°, vertical FOV 46.0°, diagonal FOV 103.5°

Apertura

F1.6

Montura del lente

M12

DORI

2.8 mm: D: 97.4 m, O: 38.7 m, R: 19.5 m, I: 9.7 m 4 mm: D: 111.2 m, O: 44.1 m, R: 22.2 m, I: 11.1 m

Iluminador

Tipo de luz suplementaria

-I: IR, -L: White Light

IR Wavelength

-I: 850 nm

Rango de luz suplementaria

Up to 15 m

Luz de suplemento inteligente

Yes

Vídeo

Main stream

50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Compresión de video

Main stream: H.265

Vídeo bitrate

32 Kbps to 8 Mbps

Tipo H.265

Baseline Profile,Main Profile,High Profile

Bit Rate Control

CBR,VBR

Codificación de video escalable (SVC)

H.265

Audio

Filtro de ruido ambiental

Yes

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/48 kHz

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Velocidad de bits de audio

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Tipo de audio

Mono sound

Red

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP

Protocolos

TCP/IP, IPv6, DDNS, RTSP, HTTPS, HTTP, FTP, QoS, Bonjour, SNMP, WebSocket, WebSockets

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Almacenamiento en red

Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200,Hik-Connect

Navegador web

Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Safari 13+, Edge 89+

Mobile Communication

Frecuencia

LTE-TDD Band 38/40/41 LTE-FDD Band 1/3/5/7/8/20/28 WCDMA Band 1/5/8 GSM 850/900/1800MHz

Estándar

LTE-TDD/LTE-FDD/WCDMA/GSM

Imagen

Interruptor día/noche

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

Superposición de imagen

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Mejora de la imagen

BLC,HLC,Defog,3D DNR

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser

SNR

≥ 52 dB

Transducer

Transducer Type

PIR

Rango de detección

Up to 15 m

Detection Angle

2.8 mm: Horizontal: 90° ± 5°, vertical: 25° ± 5°; 4 mm: Horizontal: 50° ± 5°, vertical: 20° ± 5°

Posicionamiento satelital

Satellite Positioning Detection

Support GPS and searching longitude and latitude of the device

Interfaz

Micrófono incorporado

1 built-in microphone

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Ethernet Interface

1 six-core 1.25 mm interface (it can be transferred as 1 12 VDC coaxial interface and 1 RJ 45 10 m/100 m self-adaptive Ethernet port)

Reset Key

Yes, Press to switch between performance mode and proactive mode. Hold the button for 10 sec to restore to defaults.

Evento

Evento Básico

Exception,PIR Alarm

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording

General

alimentación

6 to 15 VDC, 1.03 to 0.73 A, max. 6.2 W

Función general

Heartbeat,one-key reset,anti-banding,password protection,watermark, IP address filter

Material

Plastic

Dimensión

With antennas folded: 172.8 mm × 139.7 mm × 86.7 mm (6.8" × 5.5" × 3.4"), with antennas extending: 283.3 mm × 139.7 mm × 86.7 mm (11.2" × 5.5" × 3.4")

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Dimensión del paquete

260 mm × 217 mm × 241 mm (10.2" × 8.5" × 9.5")

Approx. 0.63 kg (1.39 lb.)

Con peso del paquete

Approx. 1.588 kg (3.5 lb.)

Condiciones de almacenaje

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)

batería

Tipo de batería

Chargeable lithium battery or 5AA dry cell

Voltaje de la batería

Rated voltage: 7.2 VDC Charging voltage: 8.4 VDC Discharging cut-off voltage: 5.6 VDC

Capacidad

9.4 Ah

Temperatura de funcionamiento

-20 °C to 60°C (-4 °F to 140 °F)

Ciclo de vida

Cycle lifetime is calculated under the condition that the camera captures pictures 10 times per day (9 times during the day and 1 time at night), uploads once per day, and keeps alive for 3 hours per day with the ambient temperature at 25 °C (77 °F). Cycle lifetime: 125 days Make sure the battery is fully charged before using the device.

Certificaciones

CE-RED: EN 301489-1 V2.2.3, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300 328 V2.2.2, EN IEC 62311:2020

EMC

CE-EMC: EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014, RCM: AS/NZS CISPR 32: 2015

Seguridad

CB: IEC 62368-1: 2014+A11

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013
