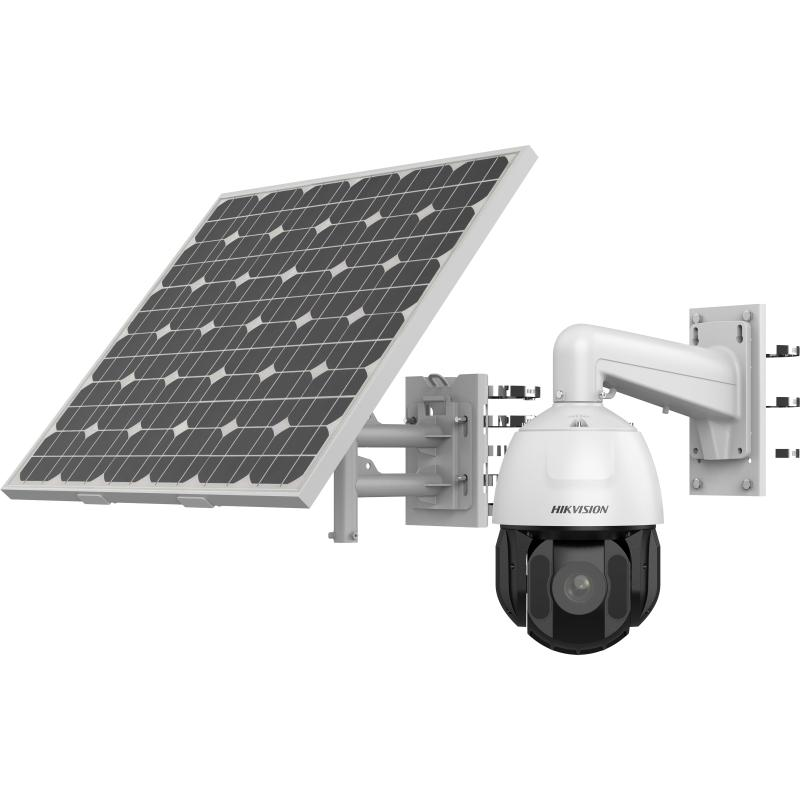

4MP 25X Pro Solar-powered Security PTZ Camera Kit

Supports performance mode and low power mode. The consumption is 3 W in low power mode, and 0.3 W in sleep mode.
Built-in heating glass for effective defog
Water and dust resistant (IP66)
The built-in eMMC storage is up to 256 GB.
Supports Wi-Fi AP for short-distance debugging;The Wi-Fi function of the device only works as AP mode on Channel 11, no other modes and channels are supported
Supports 12 V 1 A reverse power supply
Expansive night view with up to 150 m IR distance

View Less

Data Sheet

Available models:

DS-2DE5425IWG-K/4G

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen1/2.8" progressive scan CMOS
Max. Resolución2560 × 1440
Iluminación mínimacolor: 0.05Lux @ (F1.6，AGC ON)||B/W: 0.01Lux @(F1.6，AGC ON)||0 Lux with IR
Velocidad de obturación1 s~1/30,000 s
Día y NocheIR cut filter
Zoom25 × optical,16 × digital
Obturador lentoyes
HLCyes
DNR 3Dyes

Lente
Longitud focal4.8 mm~120 mm
FOVHorizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
Enfoquesemi-auto||manual||auto
AperturaF1.6
Velocidad del Zoomapprox.3.6s

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaIR distance: up to 150 m

PTZ
Rango de movimiento (pan)360°
Rango de movimiento (tilt)-15° to 90° (auto flip)
Velocidad de movimiento horizontal (pan)pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Velocidad de vertical (tilt)tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Panyes
Preajustes300
Congelación preestablecidayes
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans
Acción del parquepreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Tarea programadapreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Memoria de apagadoyes

Vídeo
Main stream50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720） 60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
Sub-stream50 Hz：25 fps（704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
Third Stream50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
Compresión de vídeoH.265||H.264||MJPEG
Tipo H.264Baseline Profile||Main Profile||High Profile
Tipo H.265Main Profile
Codificación de video escalable (SVC)yes
Región de interés (ROI)fixed region

Audio
Compresión de audioG.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC
Frecuencia de muestreo de audioMP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Filtro de ruido ambientalyes

Red
ProtocolosIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets
APIOpen-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface
Usuario/operador32
SeguridadAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Almacenamiento en redNAS (NFS, SMB/ CIFS)
ClienteiVMS-4200
Navegador webChrome 57+、Firefox 52+、Safari 12+||IE10-11

Wireless (Wi-Fi)
Alcance inalámbricoUp to 20 m (The performance varies based on actual environment)

Wireless (Mobile Communication)
FrecuenciaLTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
EstándarLTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH

Imagen
Interruptor de parámetros de imagenyes
Configuración de imagensaturation||brightness||contrast||sharpness
Interruptor día/nocheday||night||auto||scheduled-switch
Wide Dynamic Range (WDR)yes
SNR＞52dB
Desempañaryes
Mejora de la imagenBLC
Máscara de privacidadup to 24 masks||mask color configurable
Enfoque regionalyes
Exposición regionalyes

Interfaz
Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256 GB
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarma2 alarm inputs
Reiniciaryes
Salida de alimentación12 VDC, max. 1000 mA

Evento
Evento BásicoMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligenteLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,audio exception detection, Face detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,and PTZ actions (such as preset, patrol scan, pattern scan)

General
alimentación12 VDC
DimensiónØ208 mm × 344.8 mm
Approx. 29.9 kg (65.9 lb.) With Package Weight:Approx. 35.3 kg (77.8 lb.)
MaterialMetal
Operating Condition-30℃ to 65℃ (-22°F to 149°F)
Demistayes
Consumo de energía y corrienteMax. 20 W (including max. 7 W for IR and max. 1.6 W for heater);

batería
Tipo de bateríaLithium
Voltaje de la batería10.8 V
Capacidad360 WH (90 WH for each battery)
Temperatura de funcionamientoCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Ciclo de vidaProactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
Vida de bateríaMore than 500 cycles
Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Certificaciones
ProtecciónIP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Cámara

Sensor de imagen

1/2.8" progressive scan CMOS

Max. Resolución

2560 × 1440

Iluminación mínima

color: 0.05Lux @ (F1.6，AGC ON)||B/W: 0.01Lux @(F1.6，AGC ON)||0 Lux with IR

Velocidad de obturación

1 s~1/30,000 s

Día y Noche

IR cut filter

Zoom

25 × optical,16 × digital

Obturador lento

yes

HLC

yes

DNR 3D

yes

Lente

Longitud focal

4.8 mm~120 mm

FOV

Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)

Enfoque

semi-auto||manual||auto

Apertura

F1.6

Velocidad del Zoom

approx.3.6s

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

IR distance: up to 150 m

PTZ

Rango de movimiento (pan)

360°

Rango de movimiento (tilt)

-15° to 90° (auto flip)

Velocidad de movimiento horizontal (pan)

pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s

Velocidad de vertical (tilt)

tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Pan

yes

Preajustes

300

Congelación preestablecida

yes

Escaneo de patrulla

8 patrols, up to 32 presets for each patrol

Patrón de escaneo

4 pattern scans

Acción del parque

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan

Posicionamiento 3D

yes

Pantalla de estado de PTZ

yes

Tarea programada

preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output

Memoria de apagado

yes

Vídeo

Main stream

50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720） 60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

Sub-stream

50 Hz：25 fps（704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（704 × 480，640 × 480，352 × 240）

Third Stream

50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）

Compresión de vídeo

H.265||H.264||MJPEG

Tipo H.264

Baseline Profile||Main Profile||High Profile

Tipo H.265

Main Profile

Codificación de video escalable (SVC)

yes

Región de interés (ROI)

fixed region

Audio

Compresión de audio

G.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC

Frecuencia de muestreo de audio

MP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Filtro de ruido ambiental

yes

Red

Protocolos

IPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets

API

Open-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface

Usuario/operador

Seguridad

Authenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter

Almacenamiento en red

NAS (NFS, SMB/ CIFS)

Cliente

iVMS-4200

Navegador web

Chrome 57+、Firefox 52+、Safari 12+||IE10-11

Wireless (Wi-Fi)

Alcance inalámbrico

Up to 20 m (The performance varies based on actual environment)

Wireless (Mobile Communication)

Frecuencia

LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE

Estándar

LTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH

Imagen

Interruptor de parámetros de imagen

yes

Configuración de imagen

saturation||brightness||contrast||sharpness

Interruptor día/noche

day||night||auto||scheduled-switch

Wide Dynamic Range (WDR)

yes

SNR

＞52dB

Desempañar

yes

Mejora de la imagen

BLC

Máscara de privacidad

up to 24 masks||mask color configurable

Enfoque regional

yes

Exposición regional

yes

Interfaz

Ethernet Interface

RJ45, self-adaptive 10M/100M Ethernet port

Almacenamiento a bordo

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256 GB

Audio

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω

Alarma

2 alarm inputs

Reiniciar

yes

Salida de alimentación

12 VDC, max. 1000 mA

Evento

Evento Básico

Motion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Evento inteligente

Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,audio exception detection, Face detection

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,and PTZ actions (such as preset, patrol scan, pattern scan)

General

alimentación

12 VDC

Dimensión

Ø208 mm × 344.8 mm

Approx. 29.9 kg (65.9 lb.) With Package Weight:Approx. 35.3 kg (77.8 lb.)

Material

Metal

Operating Condition

-30℃ to 65℃ (-22°F to 149°F)

Demista

yes

Consumo de energía y corriente

Max. 20 W (including max. 7 W for IR and max. 1.6 W for heater);

batería

Tipo de batería

Lithium

Voltaje de la batería

10.8 V

Capacidad

360 WH (90 WH for each battery)

Temperatura de funcionamiento

Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

Ciclo de vida

Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)

Vida de batería

More than 500 cycles

Battery Weight

Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Certificaciones

Protección

IP66 Standard; 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Cámara

Sensor de imagen1/2.8" progressive scan CMOS
Max. Resolución2560 × 1440
Iluminación mínimacolor: 0.05Lux @ (F1.6，AGC ON)||B/W: 0.01Lux @(F1.6，AGC ON)||0 Lux with IR
Velocidad de obturación1 s~1/30,000 s
Día y NocheIR cut filter
Zoom25 × optical,16 × digital
Obturador lentoyes
HLCyes
DNR 3Dyes

Lente

Longitud focal4.8 mm~120 mm
FOVHorizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
Enfoquesemi-auto||manual||auto
AperturaF1.6
Velocidad del Zoomapprox.3.6s

Iluminador

Tipo de luz suplementariaIR
Rango de luz suplementariaIR distance: up to 150 m

PTZ

Rango de movimiento (pan)360°
Rango de movimiento (tilt)-15° to 90° (auto flip)
Velocidad de movimiento horizontal (pan)pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Velocidad de vertical (tilt)tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Panyes
Preajustes300
Congelación preestablecidayes
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans
Acción del parquepreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Tarea programadapreset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan||dome reboot||dome adjust||aux output
Memoria de apagadoyes

Vídeo

Main stream50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720） 60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）
Sub-stream50 Hz：25 fps（704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
Third Stream50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288） 60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
Compresión de vídeoH.265||H.264||MJPEG
Tipo H.264Baseline Profile||Main Profile||High Profile
Tipo H.265Main Profile
Codificación de video escalable (SVC)yes
Región de interés (ROI)fixed region

Audio

Compresión de audioG.711,G.722.1,G.726,MP2L2,MP3,PCM,AAC-LC
Frecuencia de muestreo de audioMP2L2: 16 kHz, 32 kHz, 48 kHz,AAC-LC: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz，48kHz,MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Filtro de ruido ambientalyes

Red

ProtocolosIPv4/IPv6||HTTP||HTTPS||802.1x||Qos||FTP||SMTP||UPnP||SNMP||DNS||DDNS||NTP||RTSP||RTCP||RTP||TCP/IP||UDP||IGMP||ICMP||DHCP||Bonjour||WebSocket||WebSockets
APIOpen-ended API|| ISAPI||Hikvision SDK||Third-party management platform||Hik-Connect||ISUP||Open Network Video Interface
Usuario/operador32
SeguridadAuthenticated username and password||MAC address binding||HTTPS encryption||802.1X authenticated access||IP address filter
Almacenamiento en redNAS (NFS, SMB/ CIFS)
ClienteiVMS-4200
Navegador webChrome 57+、Firefox 52+、Safari 12+||IE10-11

Wireless (Wi-Fi)

Alcance inalámbricoUp to 20 m (The performance varies based on actual environment)

Wireless (Mobile Communication)

FrecuenciaLTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
EstándarLTE FDD:Band 1,3,5,7,8,20,28 LTE TDD:Band 38,40,41 WCDMA/HSPA+:Band 1,5,8 GSM/GPRS/EDGE:850/900/1800MH

Imagen

Interruptor de parámetros de imagenyes
Configuración de imagensaturation||brightness||contrast||sharpness
Interruptor día/nocheday||night||auto||scheduled-switch
Wide Dynamic Range (WDR)yes
SNR＞52dB
Desempañaryes
Mejora de la imagenBLC
Máscara de privacidadup to 24 masks||mask color configurable
Enfoque regionalyes
Exposición regionalyes

Interfaz

Ethernet InterfaceRJ45, self-adaptive 10M/100M Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB,Built-in eMMC storage, up to 256 GB
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
Alarma2 alarm inputs
Reiniciaryes
Salida de alimentación12 VDC, max. 1000 mA

Evento

Evento BásicoMotion detection,video tampering alarm,alarm input and output,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligenteLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection,audio exception detection, Face detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,and PTZ actions (such as preset, patrol scan, pattern scan)

General

alimentación12 VDC
DimensiónØ208 mm × 344.8 mm
Approx. 29.9 kg (65.9 lb.) With Package Weight:Approx. 35.3 kg (77.8 lb.)
MaterialMetal
Operating Condition-30℃ to 65℃ (-22°F to 149°F)
Demistayes
Consumo de energía y corrienteMax. 20 W (including max. 7 W for IR and max. 1.6 W for heater);

batería

Tipo de bateríaLithium
Voltaje de la batería10.8 V
Capacidad360 WH (90 WH for each battery)
Temperatura de funcionamientoCharging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Ciclo de vidaProactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
Vida de bateríaMore than 500 cycles
Battery WeightApprox. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)
