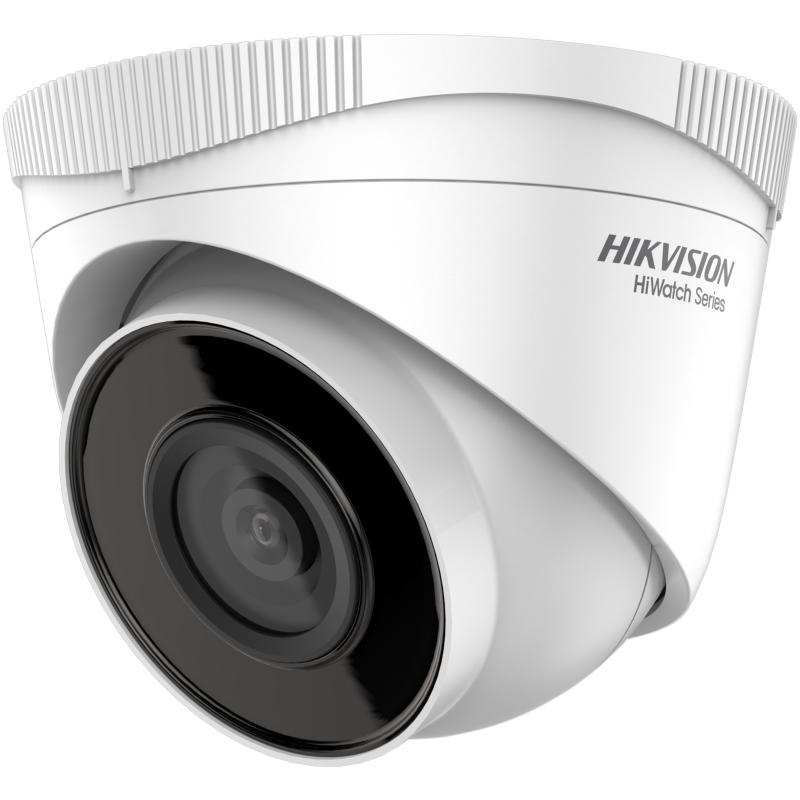

2 MP MD 2.0 Fixed Turret Network Camera

  • High quality imaging with 2 MP resolution
  • Support Human and Vehicle Detection
  • Water and dust resistant (IP67)
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Easy installation with Power over Ethernet (PoE) technology

View Less
View more
Data Sheet
Sales Inquiry

Available models:

HWI-T220HA(2.8mm)(HiWatchSTD)
HWI-T220HA(4mm)(HiWatchSTD)
HWI-T220HA
Data Sheet

Especificación

  • Cámara
  • Sensor de imagen 1/2.9" Progressive Scan CMOS
  • Max. Resolución 1920 × 1080
  • Iluminación mínima Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
  • Tiempo de obturación 1/3 s to 1/100,000 s
  • Día y Noche IR cut filter
  • Ajuste de ángulo Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lente
  • Lente Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°
  • Montura del lente M12
  • Iris Type Fixed
  • Apertura F2.0
  • DORI
  • DORI 2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m 4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m
  • Iluminador
  • Tipo de luz suplementaria IR
  • Rango de luz suplementaria Up to 30 m
  • Luz de suplemento inteligente Yes
  • IR Wavelength 850 nm
  • Vídeo
  • Main stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Compresión de video Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
  • Vídeo bitrate 32 Kbps to 8 Mbps
  • Tipo H.264 Baseline Profile/Main Profile/High Profile
  • Tipo H.265 Main Profile
  • Bit Rate Control CBR/VBR
  • Región de interés (ROI) 1 fixed region for main stream
  • Red
  • Seguridad Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
  • Vista en vivo simultánea Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
  • Protocolos TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
  • Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
  • Cliente iVMS-4200, Hik-Connect
  • Navegador web Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
  • Imagen
  • Wide Dynamic Range (WDR) Digital WDR
  • SNR ≥ 52 dB
  • Interruptor día/noche Day, Night, Auto, Schedule
  • Mejora de la imagen BLC, HLC, 3D DNR
  • Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
  • Máscara de privacidad 4 programmable polygon privacy masks
  • Interfaz
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Evento
  • Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Linkage Upload to FTP, notify surveillance center, trigger capture, send email
  • General
  • alimentación 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
  • Material Metal & Plastic
  • Dimensión Ø110 mm × 95.2 mm (Ø4.3" × 3.8")
  • Dimensión del paquete 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Approx. 360 g (0.8 lb.)
  • Con peso del paquete Approx. 570 g (1.3 lb.)
  • Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Idioma English, Ukrainian
  • Función general Heartbeat, anti-banding, mirror, password protection, password reset via email
  • Certificaciones
  • EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014
  • Seguridad CE-LVD: EN 62368-1:2014/A11:2017
  • Ambiente CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
  • Protección IP67: IEC 60529-2013
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Cámara
Sensor de imagen
1/2.9" Progressive Scan CMOS
Max. Resolución
1920 × 1080
Iluminación mínima
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Tiempo de obturación
1/3 s to 1/100,000 s
Día y Noche
IR cut filter
Ajuste de ángulo
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lente
Lente
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 58°, diagonal FOV 123° 4 mm, horizontal FOV 81°, vertical FOV 43°, diagonal FOV 96°
Montura del lente
M12
Iris Type
Fixed
Apertura
F2.0
DORI
DORI
2.8 mm, D: 42 m, O: 16 m, R: 8 m, I: 4 m 4 mm, D: 57 m, O: 22 m, R: 11 m, I: 5 m
Iluminador
Tipo de luz suplementaria
IR
Rango de luz suplementaria
Up to 30 m
Luz de suplemento inteligente
Yes
IR Wavelength
850 nm
Vídeo
Main stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream
50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Compresión de video
Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate
32 Kbps to 8 Mbps
Tipo H.264
Baseline Profile/Main Profile/High Profile
Tipo H.265
Main Profile
Bit Rate Control
CBR/VBR
Región de interés (ROI)
1 fixed region for main stream
Red
Seguridad
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Vista en vivo simultánea
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile T), ISAPI, SDK
Protocolos
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Usuario/operador
Up to 32 users 3 user levels: administrator, operator, and user
Cliente
iVMS-4200, Hik-Connect
Navegador web
Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+
Imagen
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Interruptor día/noche
Day, Night, Auto, Schedule
Mejora de la imagen
BLC, HLC, 3D DNR
Configuración de imagen
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Máscara de privacidad
4 programmable polygon privacy masks
Interfaz
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
Evento
Evento Básico
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP, notify surveillance center, trigger capture, send email
General
alimentación
12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Material
Metal & Plastic
Dimensión
Ø110 mm × 95.2 mm (Ø4.3" × 3.8")
Dimensión del paquete
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Approx. 360 g (0.8 lb.)
Con peso del paquete
Approx. 570 g (1.3 lb.)
Condiciones de almacenaje
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma
English, Ukrainian
Función general
Heartbeat, anti-banding, mirror, password protection, password reset via email
Certificaciones
EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014
Seguridad
CE-LVD: EN 62368-1:2014/A11:2017
Ambiente
CE-RoHS: 2011/65/EU WEEE: 2012/19/EU Reach: Regulation (EC) No 1907/2006
Protección
IP67: IEC 60529-2013
For better user experience, we highly recommend you to update your device to the latest firmware asap.

Resources

Technical documents

For better user experience, we highly recommend you to update your device to the latest firmware asap.
Firmware_V5.8.4_240613
Network Camera-V5.8.4_SP1 Release Note-E9
