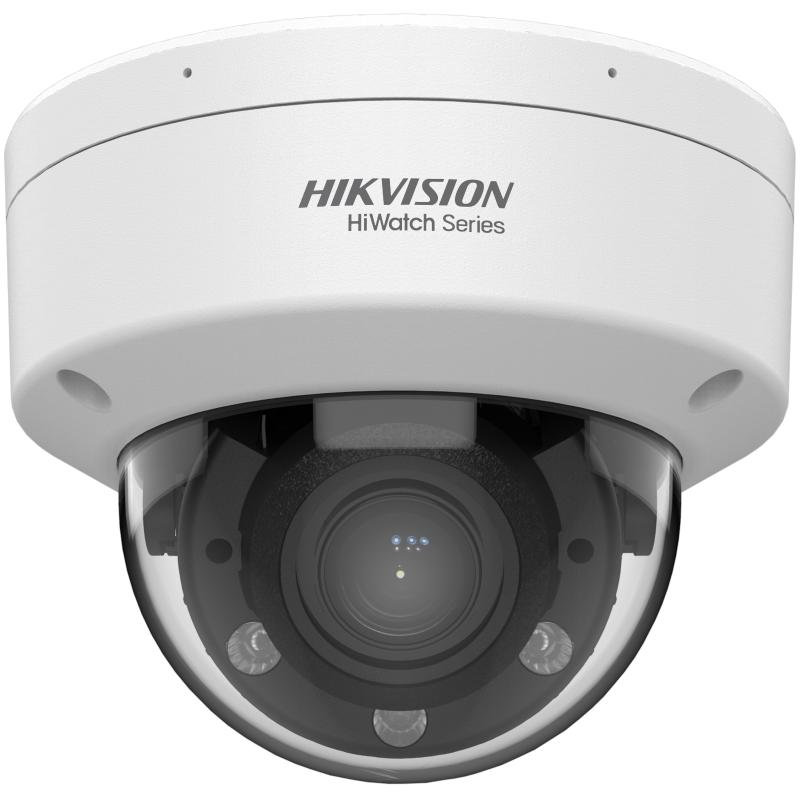

6 MP Dual Light MD 2.0 Varifocal Dome Network Camera

High quality imaging with 6 MP resolution
Support Human and Vehicle Detection
Smart Hybrid Light: advanced technology with long range
Clear imaging even with strong back lighting due to 120 dB WDR technology
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Up to 512 GB memory card slot for storage
Efficient H.265+ compression technology
Water and dust resistant (IP67) and vandal proof (IK08)

View Less

Data Sheet

Available models:

HWI-D660HA-LZU(2.8-12mm)(HiWatchSTD)

HWI-D660HA-LZU

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen1/2.4" Progressive Scan CMOS
Max. Resolución3200 × 1800
Iluminación mínimaColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Tiempo de obturación1/3 s to 1/100,000 s
Día y NocheIR cut filter
Ajuste de ánguloPan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°

Lente
LenteVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm, horizontal FOV 106° to 35.6°, vertical FOV 55.9° to 20°, diagonal FOV 127.4° to 40.8°
Montura del lenteØ14
Iris TypeFixed
AperturaF1.6

DORI
DORID: 68 to 200 m, O: 27 to 79 m, R: 13.6 to 40 m, I: 6.8 to 20 m

Iluminador
Tipo de luz suplementariaIR,White Light
Rango de luz suplementariaUp to 30 m
Luz de suplemento inteligenteYes
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile,Main Profile,High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR,VBR
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)1 fixed region for main stream

Audio
Tipo de audioMono sound
Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Velocidad de bits de audio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio8 kHz/16 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
SeguridadPassword protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Usuario/operadorUp to 32 users 3 user levels: administrator, operator, and user
ClienteiVMS-4200,Hik-Connect
Navegador webPlug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen
Configuración de imagenRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/nocheDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 52 dB
Mejora de la imagenBLC,HLC,3D DNR
Máscara de privacidad4 programmable polygon privacy masks

Interfaz
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Micrófono incorporadoYes
Reset KeyYes

Evento
Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/memory card,notify surveillance center,send email,trigger recording,trigger capture

General
alimentación 12 VDC ± 25%, 0.8 A, max. 9.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3，max. 12 W
MaterialMetal & Plastic
Dimensión Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84")
Dimensión del paquete150 mm × 150 mm × 141 mm (5.5" × 5.5" × 6.1")
Approx. 540 g (1.2 lb.)
Con peso del paqueteApprox. 740 g (1.7 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
IdiomaEnglish, Ukrainian
Función generalHeartbeat,anti-banding,mirror,password protection,password reset via email

Certificaciones
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Seguridad CE-LVD: EN 62368-1: 2014/A11: 2017
AmbienteCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtecciónIP67: IEC 60529-2013,IK08: IEC 62262:2002
