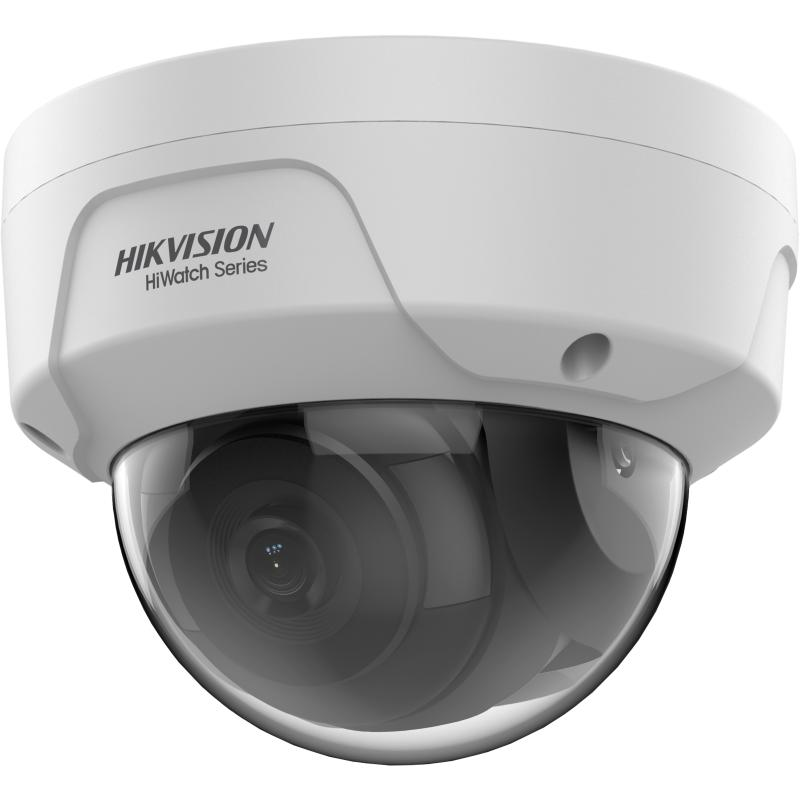

4 MP MD 2.0 Fixed Dome Network Camera

High quality imaging with 4 MP resolution
Support Human and Vehicle Detection
Water and dust resistant (IP67) and vandal resistant (IK10)
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Easy installation with Power over Ethernet (PoE) technology

View Less

View more

Available models:

HWI-D140HA(2.8mm)(HiWatchSTD)

HWI-D140HA(4mm)(HiWatchSTD)

HWI-D140HA

Especificación
Resources
Accesorios

Cámara
Sensor de imagen 1/3" Progressive Scan CMOS
Max. Resolución 2560 × 1440
Iluminación mínima Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Tiempo de obturación 1/3 s to 1/100,000 s
Día y Noche IR cut filter
Ajuste de ángulo Pan: 0° to 355°, tilt: 0° to 75°

Lente
Lente Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 99°, vertical FOV 55°, diagonal FOV 116° 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
Montura del lente M12
Iris Type Fixed
Apertura F2.0

DORI
DORI 2.8 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m 4 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m

Iluminador
Tipo de luz suplementaria IR
Rango de luz suplementaria Up to 30 m
Luz de suplemento inteligente Yes
IR Wavelength 850 nm

Vídeo
Main stream 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
Compresión de video Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate 32 Kbps to 8 Mbps
Tipo H.264 Baseline Profile, Main Profile, High Profile
Tipo H.265 Main Profile
Bit Rate Control CBR/VBR
Región de interés (ROI) 1 fixed region for main stream

Red
Seguridad Password protection, complicated password, watermark, basic and digest authent
