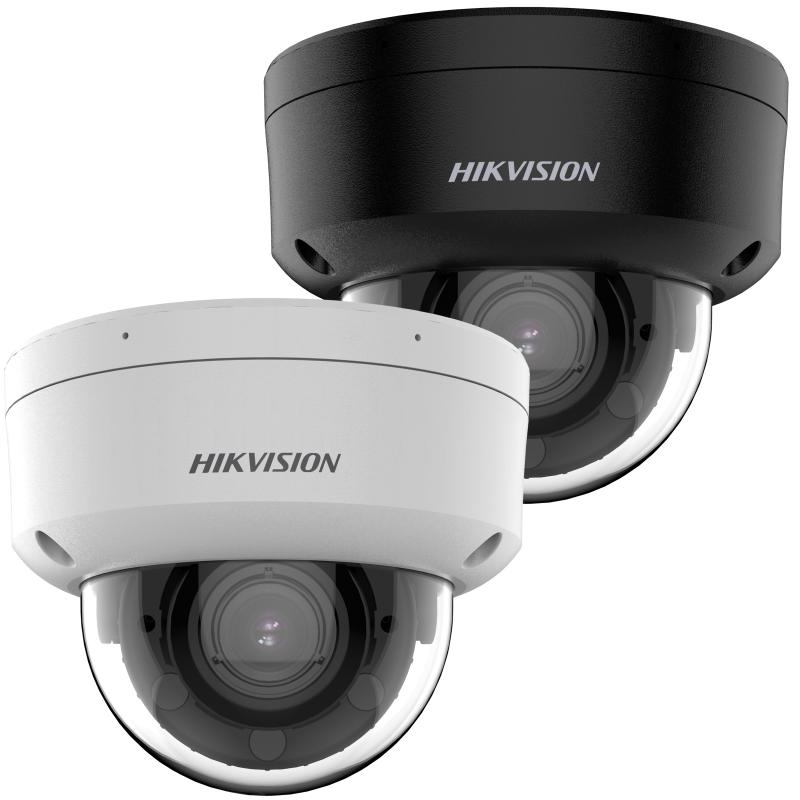

6 MP AcuSense Motorized Varifocal Dome Network Camera

  • High quality imaging with 6 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal-resistant (IK10)

Especificación
  • Cámara
  • Sensor de imagen1/2.8" Progressive Scan CMOS
  • Iluminación mínimaColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Max. Resolución3200 × 1800
  • Velocidad de obturación1/3 s to 1/100,000 s
  • P/NP/N
  • Wide dynamic range120 dB
  • Día y NocheIR cut filter
  • Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lente
  • LenteVarifocal lens, motorized lens, 2.7 to 13.5 mm
  • Focal Length & FOV2.7 to 13.5 mm, horizontal FOV 107° to 32°, vertical FOV 55° to 18°, diagonal FOV 128° to 37°
  • Montura del lenteØ14
  • Iris TypeAuto-iris
  • AperturaF1.6
  • DORI
  • DORI2.7 to 13.5 mm: D: 80 m to 245 m, O: 32 m to 97 m, R: 16 m to 49 m, I: 8 m to 24 m
  • Iluminador
  • Luz de suplemento inteligenteYes
  • IR Wavelength850 nm
  • Rango IRUp to 40 m
  • Vídeo
  • Main stream50 Hz: 20 fps (3200 × 1800) 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Compresión de videoMain stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
  • Vídeo bitrate32 Kbps to 16 Mbps
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • H.264 +Main stream supports
  • H.265 +Main stream supports
  • Bit Rate ControlCBR/VBR
  • Región de interés (ROI)5 fixed region for main stream and sub-stream
  • Codificación de video escalable (SVC)H.265 and H.264 support
  • Audio
  • Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Velocidad de bits de audio64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
  • Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Filtro de ruido ambientalYes
  • Red
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
  • Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
  • SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Almacenamiento en redMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClienteiVMS-4200, Hik-Connect, Hik-Central
  • Navegador webPlug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Imagen
  • Interruptor de parámetros de imagenYes
  • Configuración de imagenRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, HLC, 3D DNR, Target cropping
  • SNR≥ 52 dB
  • Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Almacenamiento a bordoBuilt-in micro SD card slot, up to 256 GB
  • Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarma1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Restablecimiento de hardwareYes
  • Evento
  • Evento BásicoMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output
  • General
  • alimentación12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, Class 3, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W
  • Material de la cámaraUpper cover and base: metal Bubble: plastic
  • Dimensión de la cámaraØ153.3 mm × 111.6 mm (Ø6" × 4.4")
  • Dimensión del paquete244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
  • Peso de la cámaraApprox. 890 g (2 lb.)
  • Con peso del paqueteApprox. 1480 g (3.3 lb.)
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Idioma del cliente web33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Versión de firmware5.5.115
  • Reinicio de softwareYes
  • Función generalAnti-flicker, heartbeat, password reset via email, pixel counter
  • Certificaciones
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtecciónIP67 (IEC 60529-2013); IK10 (IEC 62262:2002)
