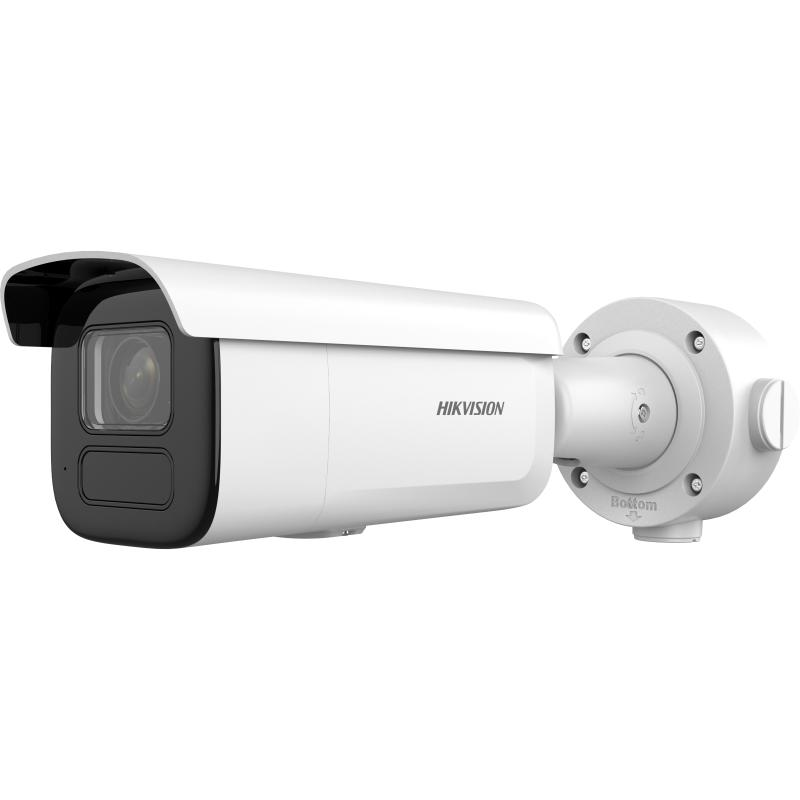

4 MP AcuSense Motorized Varifocal Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
  • Junction box included in the package

View Less
View more

Available models:

DS-2CD3643G2-IZS(2.7-13.5mm)

Especificación

  • Cámara
  • Sensor de imagen1/3″ Progressive Scan CMOS
  • Max. Resolución2688 × 1520
  • Iluminación mínimaColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Tiempo de obturación1/3 s to 1/100,000 s
  • Día y NocheIR cut filter
  • Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lente
  • LenteVarifocal lens, motorized lens, 2.7 to 13.5 mm
  • Focal Length & FOV2.7 to 13.5 mm, horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
  • Montura del lenteØ14
  • Iris TypeAuto-iris
  • AperturaF1.6
  • DORI
  • DORI2.7 to 13.5 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
  • Iluminador
  • Tipo de luz suplementariaIR
  • Rango de luz suplementariaUp to 60 m
  • Luz de suplemento inteligenteYes
  • IR Wavelength850 nm
  • Vídeo
  • Main stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Compresión de videoMain stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • Bit Rate ControlCBR/VBR
  • Codificación de video escalable (SVC)H.264 and H.265 encoding
  • Región de interés (ROI)5 fixed region for main stream and sub-stream
  • Audio
  • Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Velocidad de bits de audio64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/16Kbps-64Kbps(AAC-LC)/32-192Kbps(MP2L2)/8-320Kbps(MP3)
  • Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Filtro de ruido ambientalYes
  • Red
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
  • Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
  • SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClienteiVMS-4200, Hik-Connect, Hik-Central
  • Navegador webPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Imagen
  • Interruptor de parámetros de imagenYes
  • Configuración de imagenRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Mejora de la imagenBLC, HLC, 3D DNR, Target cropping
  • Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in micro SD card slot, up to 512 GB
  • Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarma1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset KeyYes
  • Evento
  • Evento BásicoMotion detection (human and vehicle targets classification), video tampering alarm, exception
  • Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output
  • General
  • alimentación12 VDC ± 25%,1.08 A, max. 13 W, Ø5.5 mm coaxial power plug PoE: (802.3at, Class 4, 42.5 V to 57 V ), 0.36 A to 0.27 A, max. 15 W
  • DimensiónØ105.1 mm × 348.5 mm (Ø4.1" × 13.7")
  • Dimensión del paquete385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
  • Approx. 1390 g (3 lb.)
  • Con peso del paqueteApprox. 2236 g (4.9 lb.)
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Idioma33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Función generalAnti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Certificaciones
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtecciónIP67 (IEC 60529-2013); IK10 (IEC 62262: 2002)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Cámara
Sensor de imagen
1/3″ Progressive Scan CMOS
Max. Resolución
2688 × 1520
Iluminación mínima
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Tiempo de obturación
1/3 s to 1/100,000 s
Día y Noche
IR cut filter
Ajuste de ángulo
Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lente
Lente
Varifocal lens, motorized lens, 2.7 to 13.5 mm
Focal Length & FOV
2.7 to 13.5 mm, horizontal FOV 102° to 31°, vertical FOV 55° to 18°, diagonal FOV 122° to 36°
Montura del lente
Ø14
Iris Type
Auto-iris
Apertura
F1.6
DORI
DORI
2.7 to 13.5 mm: D: 64 m to 200 m, O: 25.4 m to 79.4 m, R: 12.8 m to 40 m, I: 6.4 m to 20 m
Iluminador
Tipo de luz suplementaria
IR
Rango de luz suplementaria
Up to 60 m
Luz de suplemento inteligente
Yes
IR Wavelength
850 nm
Vídeo
Main stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (
