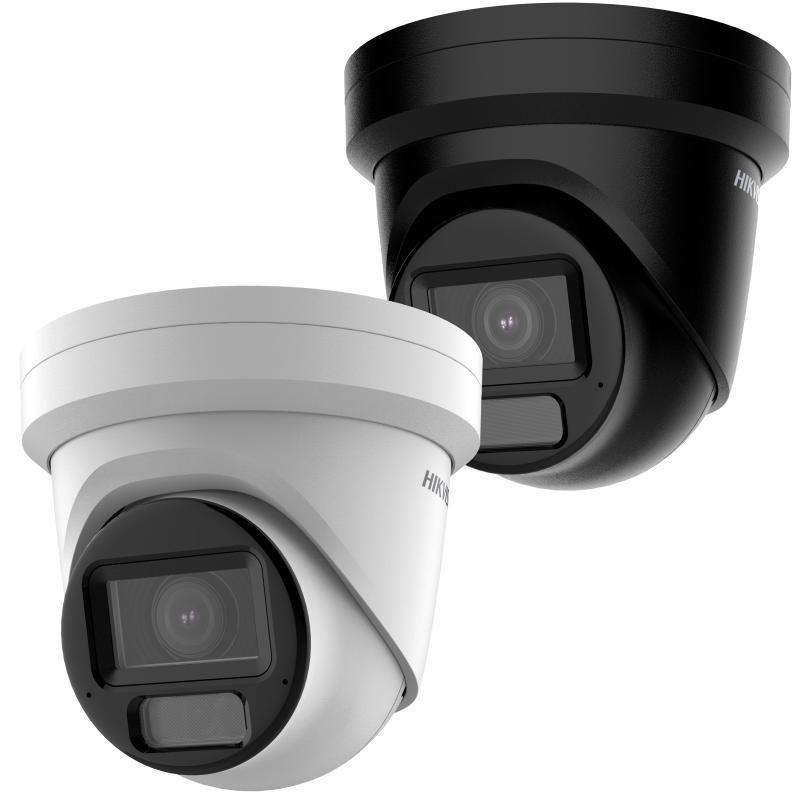

8 MP Acusense Smart Hybrid Light Motorized Varifocal Turret Network Camera

High quality imaging with 8 MP resolution
Acusense: Focus on human and vehicle classification based on deep learning
Smart Hybrid Light: Integrates IR and White lights, 3 supplemental lighting modes
Built-in arrayed dual-microphone for real-time high quality audio security
Clear imaging against strong back light due to 120 dB true WDR technology
Efficient H.265+ compression technology
Motorized varifocal lens for easy installation and monitoring
Water and dust resistant (IP67) and vandal-resistant (IK10)

View Less

Data Sheet

Available models:

DS-2CD2H83G2-LIZS2U(2.8-12mm)

DS-2CD2H83G2-LIZS2U(2.8-12mm)/O-STDBLACK

DS-2CD2H83G2-LIZS2U

NEW

Especificación
Resources
Accesorios

Data Sheet

Cámara
Sensor de imagen 1/2.8" Progressive Scan CMOS
Max. Resolución 3840 × 2160
Iluminación mínima Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light
Tiempo de obturación 1/3 s to 1/100,000 s
Día y Noche IR cut filter
Ajuste de ángulo Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lente
Lente Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 106.5° to 30.2°, vertical FOV 55.7° to 17°, diagonal FOV 128.5° to 34.7°
Montura del lente Ø14
Iris Type Fixed
Apertura F1.6

DORI
DORI 2.8 to 12 mm: D: 88.3 m to 289.7 m, O: 35 m to 114.9 m, R: 17.7 m to 57.9 m, I: 8.8 m to 29.0 m

Iluminador
Rango de luz suplementaria Up to 40 m
Tipo de luz suplementaria IR,White Light
Luz de suplemento inteligente Yes
IR Wavelength 850 nm

Vídeo
Main stream 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Compresión de video Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Vídeo bitrate 32 Kbps to 16 Mbps
Tipo H.264 Baseline Profile,Main Profile,High Profile
Tipo H.265 Main Profile
Codificación de video escalable (SVC) H.264 and H.265 encoding
Bit Rate Control CBR,VBR
Región de interés (ROI) 1 fixed region for main stream and sub-stream
Recorte objetivo Yes

Audio
Compresión de audio G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/48 kHz
Filtro de ruido ambiental Yes

Red
Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Vista en vivo simultánea Up to 6 channels
API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
Seguridad Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
Cliente iVMS-4200,Hik-Connect,Hik-Central
Almacenamiento en red NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Navegador web Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Imagen
Interruptor de parámetros de imagen Yes
Interruptor día/noche Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Mejora de la imagen BLC,HLC,3D DNR
Máscara de privacidad 8 programmable polygon privacy masks

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Audio Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarma 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes

Evento
Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Deep Learning Function
Perimeter Protection Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)

General
alimentación 12 VDC ± 25%, 0.88 A, max. 10.56 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W
Material Metal
Dimensión Ø138.6 mm × 123 mm (Ø5.4" × 4.8")
Dimensión del paquete 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Approx. 860 g (1.9 lb.)
Con peso del paquete Approx. 1140 g (2.5 lb.)
Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Función general Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Certificaciones
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Seguridad CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección IP67: IEC 60529-2013,IK10: IEC 62262:2002

Cámara

Sensor de imagen

1/2.8" Progressive Scan CMOS

Max. Resolución

3840 × 2160

Iluminación mínima

Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light

Tiempo de obturación

1/3 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°

Lente

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 106.5° to 30.2°, vertical FOV 55.7° to 17°, diagonal FOV 128.5° to 34.7°

Montura del lente

Ø14

Iris Type

Fixed

Apertura

F1.6

DORI

2.8 to 12 mm: D: 88.3 m to 289.7 m, O: 35 m to 114.9 m, R: 17.7 m to 57.9 m, I: 8.8 m to 29.0 m

Iluminador

Rango de luz suplementaria

Up to 40 m

Tipo de luz suplementaria

IR,White Light

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

Compresión de video

Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile,Main Profile,High Profile

Tipo H.265

Main Profile

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Bit Rate Control

CBR,VBR

Región de interés (ROI)

1 fixed region for main stream and sub-stream

Recorte objetivo

Yes

Audio

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Velocidad de bits de audio

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/48 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets

Vista en vivo simultánea

Up to 6 channels

API

ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP

Seguridad

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Cliente

iVMS-4200,Hik-Connect,Hik-Central

Almacenamiento en red

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Navegador web

Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Imagen

Interruptor de parámetros de imagen

Yes

Interruptor día/noche

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Mejora de la imagen

BLC,HLC,3D DNR

Máscara de privacidad

8 programmable polygon privacy masks

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Audio

Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

Alarma

1 input, 1 output (max. 24 VDC/24 VAC, 1 A)

Reset Key

Yes

Evento

Evento Básico

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture

Deep Learning Function

Perimeter Protection

Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)

General

alimentación

12 VDC ± 25%, 0.88 A, max. 10.56 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W

Material

Metal

Dimensión

Ø138.6 mm × 123 mm (Ø5.4" × 4.8")

Dimensión del paquete

170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")

Approx. 860 g (1.9 lb.)

Con peso del paquete

Approx. 1140 g (2.5 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Función general

Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding

Certificaciones

EMC

CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Seguridad

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013,IK10: IEC 62262:2002
