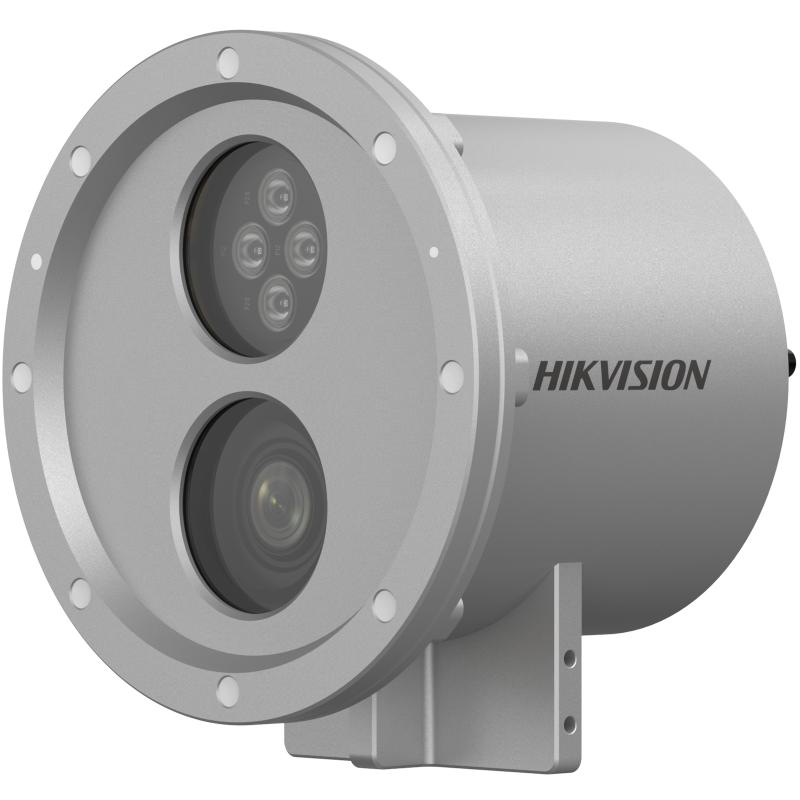

8MP Bullet Underwater Network Camera

  • 316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
  • IP68: the camera can be used under water up to 15 meters
  • H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements
  • DarkFighter technology enables the capture of high quality color images in even the dimmest lighting environments
  • True WDR technology provides clear imaging even with strong back lighting

View Less
View more
Data Sheet
Sales Inquiry

Available models:

DS-2XC6284G0-L(2.8-12mm)
DS-2XC6284G0-L
Data Sheet

Especificación

  • Cámara
  • Sensor de imagen 1/1.8" Progressive Scan CMOS
  • Max. Resolución 3840 × 2160
  • Iluminación mínima Color: 0.001 Lux @ (F1.4, AGC ON), B/W: 0 Lux with Light
  • Tiempo de obturación 1 s to 1/100,000 s
  • Lente
  • Enfoque Auto,Semi-auto,Manual
  • Lente Varifocal lens, motorized lens, 2.8 to 12 mm
  • Focal Length & FOV 2.8 to 12 mm, horizontal FOV 70.7° to 30.0°, vertical FOV 39.0° to 16.9°, diagonal FOV 82.0° to 34.2°
  • Apertura F1.4
  • DORI
  • DORI Wide: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m Tele: D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m
  • Iluminador
  • Tipo de luz suplementaria White Light
  • Rango de luz suplementaria Turbidity (NTU) : 0 to 5, up to 1 m, Turbidity (NTU) : 5 to 15, up to 0.5 m, Turbidity (NTU) : ＞15, up to 0.2 m
  • Vídeo
  • Main stream 50 Hz: 20 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-stream 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
  • Compresión de video Main stream: H.265/H.264 /H.265+/H.264+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
  • Vídeo bitrate 32 Kbps to 8 Mbps
  • Tipo H.264 Baseline Profile,Main Profile,High Profile
  • Tipo H.265 Main Profile
  • Bit Rate Control CBR,VBR
  • Codificación de video escalable (SVC) H.265 and H.264 encoding
  • Región de interés (ROI) 5 fixed regions for main stream and sub-stream
  • Recorte objetivo Yes
  • Red
  • Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS, WebSocket, WebSockets
  • Vista en vivo simultánea Up to 20 channels
  • API Open Network Video Interface, ISAPI, SDK, ISUP
  • Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
  • Almacenamiento en red NAS (NFS, SMB/CIFS),CVR,NVR,Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Cliente iVMS-4200, Hik-Connect, Hik-Central
