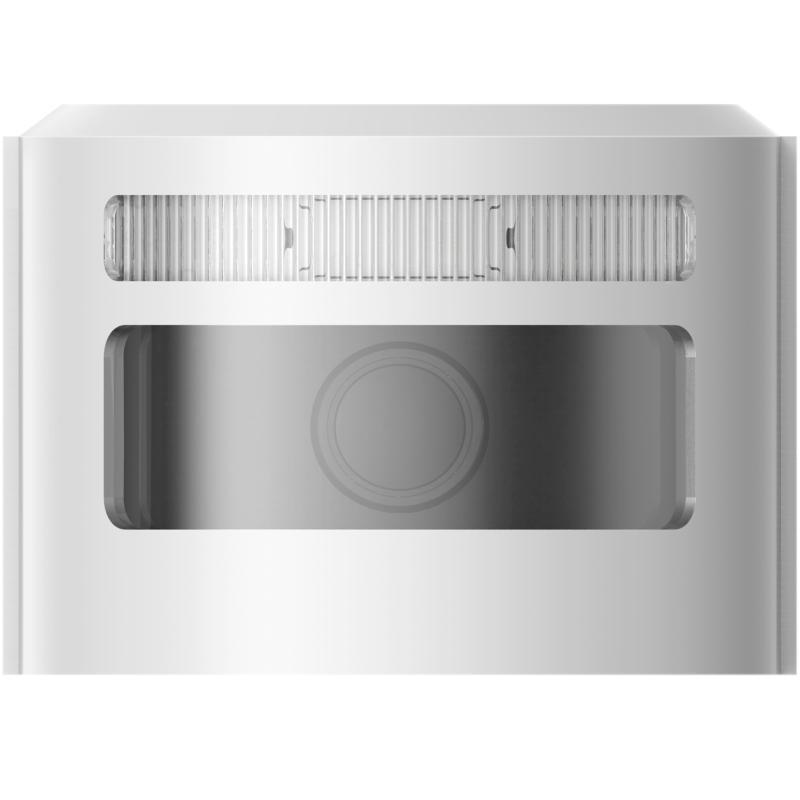

DS-PDCM15PF-IR


    RF Camera Module

    • 1/2.7" Progressive Scan CMOS
    • 2.0 mm fixed lens
    • 3D Digital Noise Reduction
    • Easy Installation
    • The direction of the Angle can be adjusted to fit the TT Detector's Angle
    • Protection Level IP66
    View Less
    View more

    Available models:

    DS-PDCM15PF-IR

    Especificación

    • Detection Performance
    • Detection MethodVideo Verification
    • Característica
    • Digital Noise Reduction3D
    • Longitud focal2.0mm@F2.25
    • Vídeo
    • Field Angle137.2°(H), 80.1°(V)
    • Image TypeJPEG
    • Resolusion640*480;320*240;160*120
    • Fill LightInfrared Light
    • Fill Range15m
    • Interruptor día/nocheAuto
    • Interfaz
    • Interfaz de comunicación1 12-Bit Data Interface
    • Electrical Characteristics
    • Fuente de alimentación3 VDC
    • Consumo de energía1200mA
    • General
    • Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
    • Temperatura de almacenamiento-25 °C to 60 °C (-13 °F to 140 °F)
    • Operation Humidity10% to 90%
    • IP RateIP66
    • Dimension(WxHxD)74.1mm x 72.35mm x 53mm
    • 155g
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Especificación

    Detection Performance
    Detection Method
    Video Verification
    Característica
    Digital Noise Reduction
    3D
    Longitud focal
    2.0mm@F2.25
    Vídeo
    Field Angle
    137.2°(H), 80.1°(V)
    Image Type
    JPEG
    Resolusion
    640*480;320*240;160*120
    Fill Light
    Infrared Light
    Fill Range
    15m
    Interruptor día/noche
    Auto
    Interfaz
    Interfaz de comunicación
    1 12-Bit Data Interface
    Electrical Characteristics
    Fuente de alimentación
    3 VDC
    Consumo de energía
    1200mA
    General
    Operation Temperature
    -25 °C to 60 °C (-13 °F to 140 °F)
    Temperatura de almacenamiento
    -25 °C to 60 °C (-13 °F to 140 °F)
    Operation Humidity
    10% to 90%
    IP Rate
    IP66
    Dimension(WxHxD)
    74.1mm x 72.35mm x 53mm
    155g
    For better user experience, we highly recommend you to update your device to the latest firmware asap.
    Especificación
    Detection Performance
    • Detection MethodVideo Verification
    Característica
    • Digital Noise Reduction3D
    • Longitud focal2.0mm@F2.25
    Vídeo
    • Field Angle137.2°(H), 80.1°(V)
    • Image TypeJPEG
    • Resolusion640*480;320*240;160*120
    • Fill LightInfrared Light
    • Fill Range15m
    • Interruptor día/nocheAuto
    Interfaz
    • Interfaz de comunicación1 12-Bit Data Interface
    Electrical Characteristics
    • Fuente de alimentación3 VDC
    • Consumo de energía1200mA
    General
    • Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
    • Temperatura de almacenamiento-25 °C to 60 °C (-13 °F to 140 °F)
    • Operation Humidity10% to 90%
    • IP RateIP66
    • Dimension(WxHxD)74.1mm x 72.35mm x 53mm
    • 155g
    *Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

    Download Center

    Data Sheet

    Quick Start Guide
