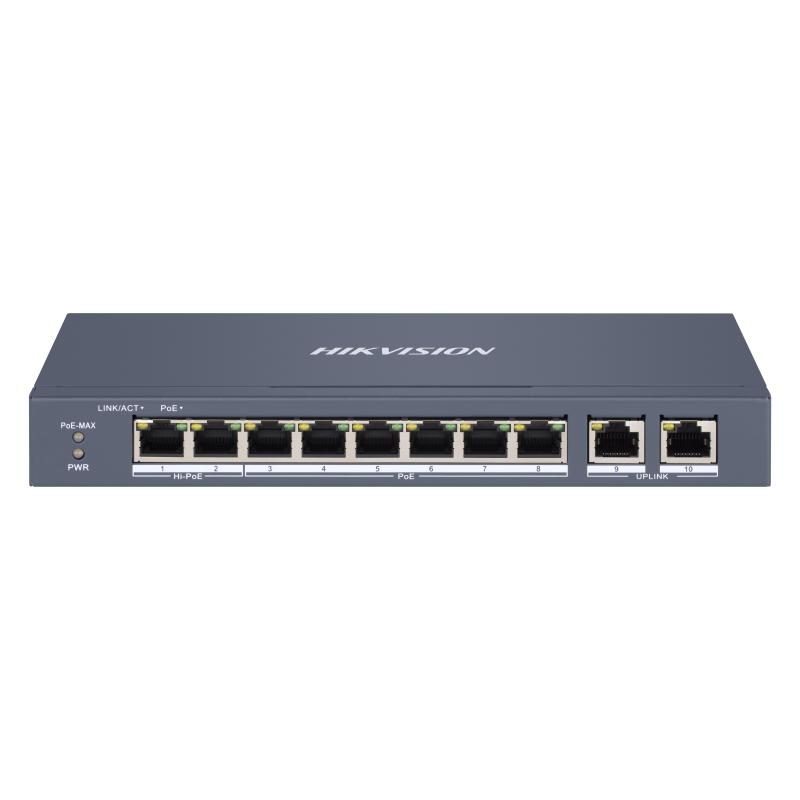

8 Port Fast Ethernet Smart POE Switch

8 × 100 Mbps PoE RJ45 ports, 2 × gigabit network RJ45 ports
IEEE 802.3at/af/bt standard for PoE ports
Network topology management, and alarm push
6 KV surge protection for PoE ports
Up to 300 m long-range transmission
AF/AT camera can reach up to 300 m in extend mode

View Less

Ficha Técnica

Modelos disponibles:

DS-3E1310HP-EI

Especificación
Resources
Accesorios

Ficha Técnica

General
CarcasaMetal material, IP40
Peso neto0.550 kg (1.21 lb)
Peso bruto0.950 kg (2.09 lb)
Dimensiones (W x H x D)217.6 mm × 27.8 mm × 103.35 mm (8.56" × 1.09" × 4.06")
Temperatura de funcionamiento0 °C to 40 °C (0 °F to 104 °F)
Temperatura de almacenamiento-40 °C to 85 °C (-40 °F to 185 °F)
Condiciones de humedad5% to 95% (no condensation)
Humedad relativa5% to 95% (no condensation)
Fuente de alimentación54 VDC, 2.22 A
Modo de instalaciónDesk-Mounted,Wall-Mounted
Max. El consumo de energía120 W
Consumo de energía en inactivo4 W
Surge Protection6 KV

Parámetros de red
Puertos8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
Tabla de direcciones MAC16 K
Capacidad de conmutación9.2 Gbps
Tasa de reenvío de paquetes6.84 Mpps
Caché interna4 Mbits

Fuente de alimentación PoE
PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
Pin de alimentación PoE8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Puerto PoEHi-PoE: Ports 1 to 2,PoE: Ports 3 to 8
Max. Puerto de alimentaciónPort 1 to 2：90 W Ports 3 to 8：30 W
PoE Power Budget110 W

Función de software
Largo alcancePorts 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating.

Certificaciones
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015)
SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
QuímicaCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)

General

Carcasa

Metal material, IP40

Peso neto

0.550 kg (1.21 lb)

Peso bruto

0.950 kg (2.09 lb)

Dimensiones (W x H x D)

217.6 mm × 27.8 mm × 103.35 mm (8.56" × 1.09" × 4.06")

Temperatura de funcionamiento

0 °C to 40 °C (0 °F to 104 °F)

Temperatura de almacenamiento

-40 °C to 85 °C (-40 °F to 185 °F)

Condiciones de humedad

5% to 95% (no condensation)

Humedad relativa

5% to 95% (no condensation)

Fuente de alimentación

54 VDC, 2.22 A

Modo de instalación

Desk-Mounted,Wall-Mounted

Max. El consumo de energía

120 W

Consumo de energía en inactivo

4 W

Surge Protection

6 KV

Parámetros de red

Puertos

8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port

Tabla de direcciones MAC

16 K

Capacidad de conmutación

9.2 Gbps

Tasa de reenvío de paquetes

6.84 Mpps

Caché interna

4 Mbits

Fuente de alimentación PoE

PoE Standard

IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt

Pin de alimentación PoE

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

Puerto PoE

Hi-PoE: Ports 1 to 2,PoE: Ports 3 to 8

Max. Puerto de alimentación

Port 1 to 2：90 W Ports 3 to 8：30 W

PoE Power Budget

110 W

Función de software

Largo alcance

Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.

PoE Watchdog

Ports 1 to 8: auto detect and restart the cameras that do not respond.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.

System Maintenance

Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating.

Certificaciones

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015)

Seguridad

UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)

Química

CE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)

General

CarcasaMetal material, IP40
Peso neto0.550 kg (1.21 lb)
Peso bruto0.950 kg (2.09 lb)
Dimensiones (W x H x D)217.6 mm × 27.8 mm × 103.35 mm (8.56" × 1.09" × 4.06")
Temperatura de funcionamiento0 °C to 40 °C (0 °F to 104 °F)
Temperatura de almacenamiento-40 °C to 85 °C (-40 °F to 185 °F)
Condiciones de humedad5% to 95% (no condensation)
Humedad relativa5% to 95% (no condensation)
Fuente de alimentación54 VDC, 2.22 A
Modo de instalaciónDesk-Mounted,Wall-Mounted
Max. El consumo de energía120 W
Consumo de energía en inactivo4 W
Surge Protection6 KV

Parámetros de red

Puertos8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
Tabla de direcciones MAC16 K
Capacidad de conmutación9.2 Gbps
Tasa de reenvío de paquetes6.84 Mpps
Caché interna4 Mbits

Fuente de alimentación PoE

PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
Pin de alimentación PoE8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
Puerto PoEHi-PoE: Ports 1 to 2,PoE: Ports 3 to 8
Max. Puerto de alimentaciónPort 1 to 2：90 W Ports 3 to 8：30 W
PoE Power Budget110 W

Función de software

Largo alcancePorts 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating.

Certificaciones

EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015)
SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
QuímicaCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
