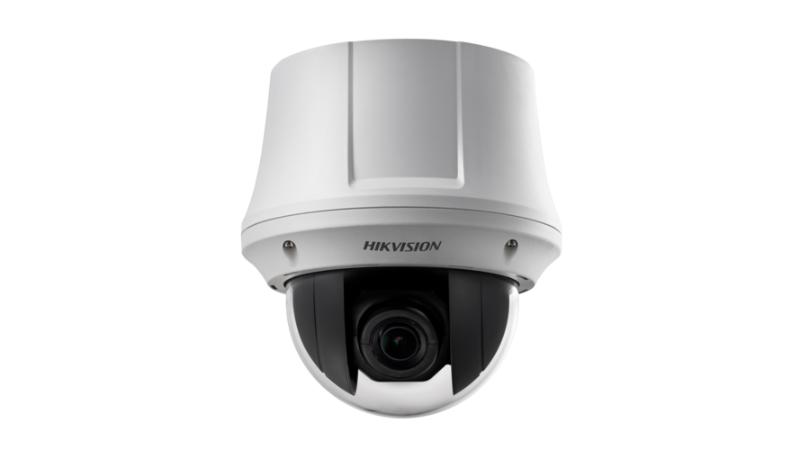

4-inch 2 MP 15X Powered by DarkFighter Analog Speed Dome

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Clear imaging against strong back light by 120 dB WDR technology
  • Pan and tilt ability enables the camera to capture interested areas
  • Securing an expansive area with 15x optical zoom
  • Water and dust resistant (IP66)

Especificación
  • Cámara
  • Sensor de imagen1/2.8" Progressive Scan CMOS
  • Max. Resolución1920 × 1080
  • Iluminación mínimaColor: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON)
  • Velocidad de obturaciónPAL: 1/1 s to 1/10,000 s NTSC: 1/1 s to 1/10,000 s
  • Día y NocheIR cut filter
  • Zoom15 × optical, 16 × digital
  • Lente
  • Longitud focal5 mm to 75 mm, 15 × optical
  • FOVHorizontal FOV: 53.8° to 4.0° (wide to tele) Vertical FOV: 31.9° to 2.3° (wide to tele) Diagonal FOV: 60.4° to 4.6° (wide to tele)
  • EnfoqueAuto, semi-auto, manual
  • AperturaF1.6 to F3.5
  • Velocidad del ZoomApprox. 2.4 s (optical, wide to tele)
  • PTZ
  • Rango de movimiento (pan)360° endless
  • Rango de movimiento (tilt)-5° to 90° (auto flip)
  • Velocidad de movimiento horizontal (pan)Pan manual speed: 0.1° to 100°/s Pan preset speed: 100°/s
  • Velocidad de vertical (tilt)Tilt manual speed: 0.1° to 80°/s Tilt preset speed: 80°/s
  • Proportional PanRotation speed can be adjusted automatically according to zoom multiples
  • Preajustes256
  • Congelación preestablecidaYes
  • Escaneo de patrulla10 patrols, up to 32 presets for each patrol
  • Patrón de escaneo5 patterns, record time over 10 minutes for each scan
  • Acción del parquePreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
  • Pantalla de estado de PTZYes
  • Tarea programadaPreset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero Calibration/None
  • Memoria de apagadoYes
  • Vídeo
  • Frame Rate50 Hz: 25 fps @(1920 × 1080) 60 Hz: 30 fps @(1920 × 1080)
  • Red
  • ProtocolosUTC protocol (or HIKVISION-C protocol in previous DVR)
  • Imagen
  • Configuración de imagenAGC, white balance
  • Wide Dynamic Range (WDR)≥ 120 dB
  • Image StabilizationEIS
  • Mejora de la imagenBLC, HLC, 3D DNR
  • Máscara de privacidad8 programmable privacy masks
  • Enfoque regionalYes
  • Interfaz
  • Salida de VídeoSwitchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
  • Alarma2 alarm inputs, 1 alarm output
  • RS-485Half-duplex mode Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
  • General
  • alimentación12 VDC, max. 12 W
  • DimensiónDS-2AE4215T-D3(D) (Indoor): Ø 165 mm × 179.5 mm (Ø 6.5" × 7.1") DS-2AE4215T-D3(D) (In-ceiling): Ø 165 × 168 mm (Ø 6.5" × 6.6")
  • Approx. 2 kg (4.41 lb.)
  • Operating Condition-10° C to 50° C (14° F to 122° F). Humidity 90% or less
  • IdiomaEnglish
  • Certificaciones
  • ProtecciónTVS 4,000 V lightning protection, surge protection and voltage transient protection
