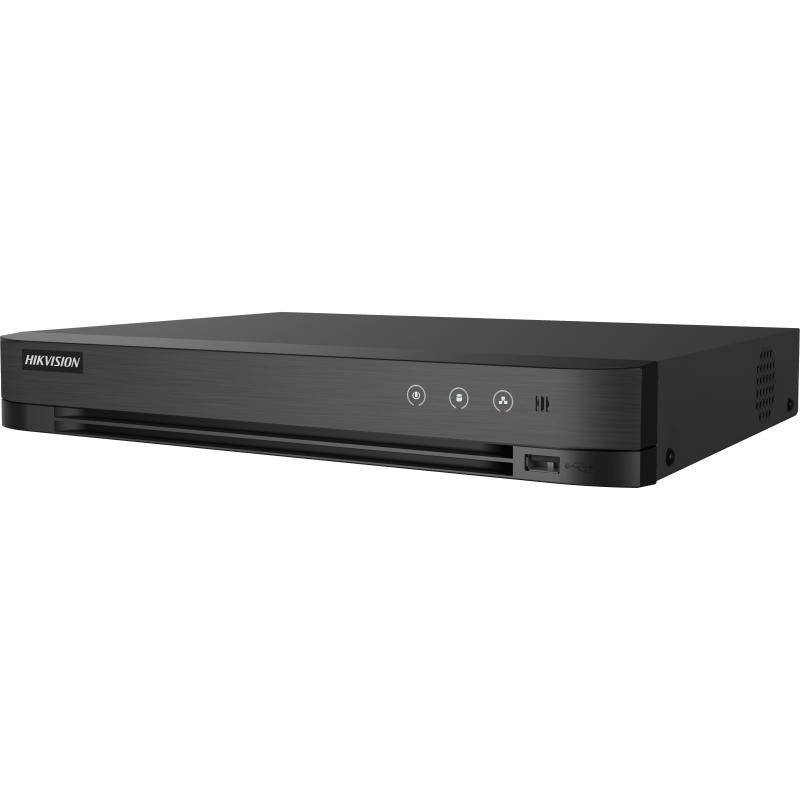

4-ch 5 MP 1U H.265 PoC DVR

4 channels and 1 HDD 1U DVR
Efficient H.265 pro+ compression technology
Encoding ability up to 5 MP @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 8 network cameras can be connected
Transmits both HDTVI video and power over the same coaxial cable

View Less

DS-7204HUHI-K1/P

Especificación
Resources
Accesorios

Recording
Compresión de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/,CIF,
Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),*: 8 MP@8fps is only available for channel 1 of DS-7204HUHI-K1/P.,Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N),;Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N)
Vídeo bitrate32 Kbps to 10 Mbps
Dual streamSupport
Stream typeVideo, Video & Audio
Audio compressionG.711u
Audio bit rate64 Kbps

Video and Audio
Entrada de video IP4-ch (up to 8-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras;4-ch (up to 8-ch);Up to 8 MP resolution,*: The 8 MP signal input is only available for channel 1 of DS-7204HUHI-K1/P.,Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input4-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection;4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
AHD input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS inputPAL/NTSC
HDMI/VGA output1-ch, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz,
Entrada de Audio4-ch, RCA (2.0 Vp-p, 1 KΩ)
Salida de audio1-ch, RCA (Linear, 1 KΩ)
Audio bidireccional1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Reproducción síncrona4-ch
HDTVI input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
VGA/HDMI output1-ch, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, ,1280 × 1024/60Hz, ,1280 × 720/60Hz, ,1024 × 768/60Hz
PoC camera inputSupport Hikvision PoC camera,*: PoC access capability see Appendix.,;Support Hikvision PoC camera *: PoC access capability see Appendix.
Salida CVBS1-ch, BNC (1.0 Vp-p, 75 Ω),resolution: PAL: 704 × 576, NTSC: 704 × 480;1-ch, BNC (1.0 Vp-p, 75 Ω),,resolution: PAL: 704 × 576, NTSC: 704 × 480,

Red
Conexiones remotas32
Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Interfaz de red1, ,RJ45 10M/100M ,self-adaptive ,Ethernet interface,

Auxiliary interface
SATA1 SATA interface
CapacidadUp to 10 TB capacity for each disk
Alarm in/out4/1
Interfaz USB2 × USB 2.0
Serial interfaceRS-485 (half-duplex)

General
Fuente de alimentación48 VDC
Temperatura de trabajo-10 ºC to +55 ºC (14 ºF to 131 ºF);-10 °C to +55 °C (+14 °F to +131 °F)
Humedad de trabajo10% to 90%
Dimensiones (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
Weights (without HDD)≤ 1.5 kg (3.3 lb)
Consumption(without HDD)≤ 40 W
