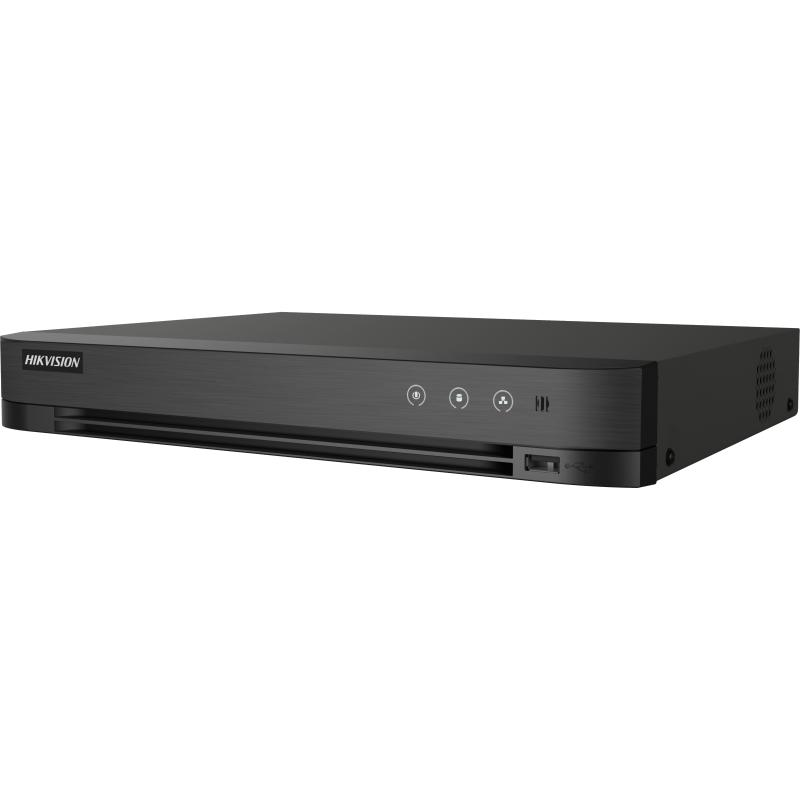

8-ch 5 MP 1U H.265 AcuSense DVR

8 channels and 1 HDD 1U AcuSense DVR
Supports false alarm reduction based on deep learning algorithm
Efficient H.265 pro+ compression technology
Encoding ability up to 4K @ 7.5 fps/ 3K@12fps
Up to 12 network cameras can be connected
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

View Less

Ficha Técnica

Modelos disponibles:

iDS-7208HUHI-M1/FA(C)

iDS-7208HUHI-M1/FA ^Discontinued

Especificación
Resources
Accesorios

Ficha Técnica

Facial Recognition
Face Picture LibraryUp to 16 face picture libraries, with up to 5000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
Comparación de imagen de cara1-ch face picture comparison alarm (HD analog camera)

Protección perimetral
Human/Vehicle AnalysisUp to 4-ch

Detección Facial
Facial Detection and CaptureFace picture detection, face picture search

Video and Audio
Entrada de vídeo IP4-ch (up to 12-ch) Up to 8 MP resolution IP enhanced mode on: 8-ch (up to 16-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras
Entrada de video analógico8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
CVBS InputPAL/NTSC
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Reproducción Sincrónica8-ch
HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
Salida de audio1-ch, RCA (Linear, 1 KΩ)
Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Recording
Compresión de vídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolución de codificación8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame RateMain stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Vídeo bitrate32 Kbps to 10 Mbps
Doble flujoSupport
Stream TypeVideo, Video & Audio
Compresión de audioG.711u
Audio Bitrate64 Kbps

Red
Total Bandwidth128 Mbps
Protocolo de redTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Conexión remota64
Interfaz de red1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface
SATA1 SATA interface
Capacidadup to 10 TB capacity for each disk
Interfaz de serieRS-485 (half-duplex)
Interfaz USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarma E/SN/A

General
Fuente de alimentación12 VDC, 2 A
Consumo≤ 15 W
Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
Condiciones de Humedad10% to 90%
Dimensión (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
≤ 2 kg (4.4 lb)

Facial Recognition

Face Picture Library

Up to 16 face picture libraries, with up to 5000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)

Comparación de imagen de cara

1-ch face picture comparison alarm (HD analog camera)

Protección perimetral

Human/Vehicle Analysis

Up to 4-ch

Detección Facial

Facial Detection and Capture

Face picture detection, face picture search

Video and Audio

Entrada de vídeo IP

4-ch (up to 12-ch) Up to 8 MP resolution IP enhanced mode on: 8-ch (up to 16-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras

Entrada de video analógico

8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Reproducción Sincrónica

8-ch

HDTVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input

5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

Salida de audio

1-ch, RCA (Linear, 1 KΩ)

Entrada de Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Recording

Compresión de vídeo

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolución de codificación

8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate

Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Vídeo bitrate

32 Kbps to 10 Mbps

Doble flujo

Support

Stream Type

Video, Video & Audio

Compresión de audio

G.711u

Audio Bitrate

64 Kbps

Red

Total Bandwidth

128 Mbps

Protocolo de red

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Conexión remota

Interfaz de red

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacidad

up to 10 TB capacity for each disk

Interfaz de serie

RS-485 (half-duplex)

Interfaz USB

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarma E/S

N/A

General

Fuente de alimentación

12 VDC, 2 A

Consumo

≤ 15 W

Temperatura de trabajo

-10 °C to 55 °C (14 °F to 131 °F)

Condiciones de Humedad

10% to 90%

Dimensión (W × D × H)

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)

≤ 2 kg (4.4 lb)
