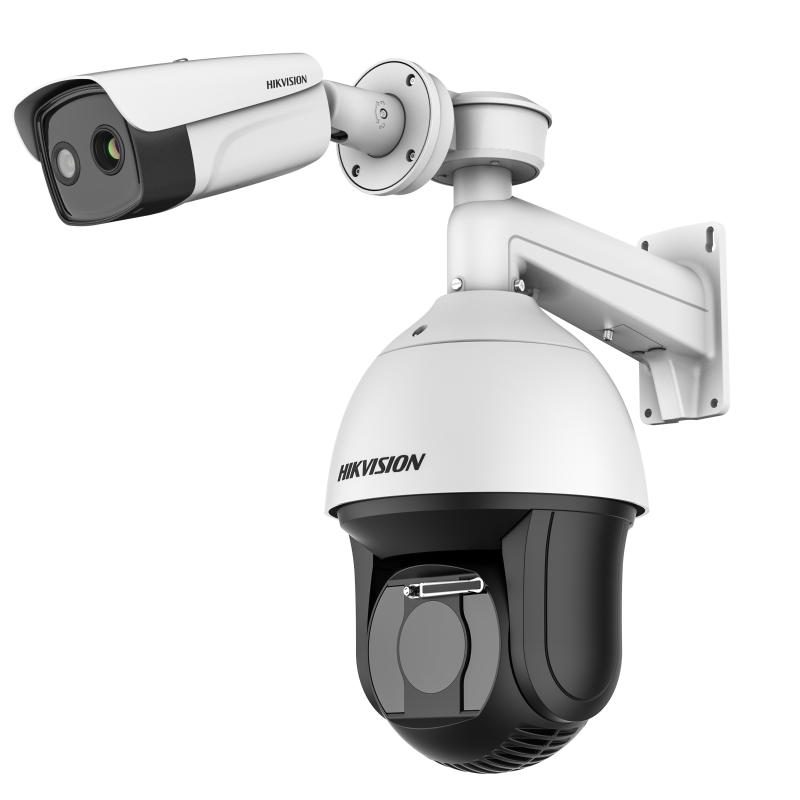

Thermal Smart Linkage Tracking System

384 × 288 resolution thermal image, high sensitivity sensor, adjustable contrast
Thermal image processing: Adaptive AGC, DDE, 3D DNR, NETD ≤ 35 mK (@25 °C,F#=1.0)
PTZ camera with 4MP image, 42 × optical zoom and 500 m IR supplement
Intelligent and persistent analytics working within the linkage system
One-touch connection and automatic alignment between the images of bi-spectrum bullet camera and optical PTZ camera

View Less

Modelos disponibles:

DS-2TX3742-10A/P

EOL

Especificación
Resources
Accesorios

Función del sistema
Haga clic en EnlaceOne-Touch connection between bi-spectrum bullet camera and PTZ camera beforehand via VMS client
Modo de seguimientoManual/Auto
Manual TrackingDrawing an area in VMS client within the field of the bullet camera, leading the PTZ camera zooming in
Seguimiento de objetivos múltiplesUp to 30 targets simultaneously
Event TrackingIntrusion Detection, Line Crossing Detection
Tracking DurationConfigurable in VMS client for PTZ tracking
Medida de temperatura3 temperature measurement rule types; 21 rules in total (10 points, 10 areas, and 1 line)
Rango de temperatura- 20 °C to 150 °C (- 4 °F to 302 °F)
Precisión de la temperatura± 8 °C (± 14.4 °F)
Detección de fuegoDynamic fire detection, up to 10 fire points detectable.

Bullet Camera- Thermal Module
Sensor de imagenVanadium Oxide Uncooled Focal Plane Arrays
Resolución384 × 288
Tamaño de píxel17 μm
Spectral Range8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference)≤ 35 mk (@25 °C,F#=1.0)
Longitud focal9.7 mm
IFOV1.75 mrad
Campo de visión37.5° × 28.5° (H × V)
Min. Distancia de enfoque1 m
AperturaF1.0
Zoom Digital×2, ×4, ×8

Bullet Camera- Optical Module
Sensor de imagen1/2.7" Progressive Scan CMOS
Resolución2688 × 1520, 4 MP
Velocidad de obturación1 s to 1/100,000 s
Iluminación mínimaColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Longitud focal4 mm
Campo de visión84° × 44.8° (H × V)
AperturaF1.6
WDR120 dB

Bullet Camera- General
Main streamOptical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-streamOptical channel 50 HZ: 25 fps (704 × 576, 352 × 288, 176 × 144) 60 HZ: 30 fps (704 × 480, 352 × 240, 176 × 120) Thermal channel 25 fps (704 × 576, 352 × 288, 320 × 240)
Compresión de vídeoMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Compresión de audioG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/OPUS/PCM
Entrada de alarma2, alarm input (0-5 VDC) 2, alarm output
Salida de alarma2-ch relay outputs, alarm response actions configurable
Entrada de Audio1, 3.5 mm Mic in/Line in interface. Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audioLinear level, impedance: 600 Ω
Interfaz de comunicación1, RJ45 10 M/100 M self-adaptive Ethernet interface. 1, RS-485 interface

Domo óptico de velocidad
Sensor de imagen1/1.8" Progressive Scan CMOS
Iluminación mínima Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON), 0 Lux with IR
Resolución2688 × 1520
Longitud focal6.0 - 252 mm, 42 × optical zoom
Velocidad del ZoomApprox. 4.8 s (Optical, Wide-Tele)
Zoom Digital16 x
Campo de visión58.7° to 2.0° (Wide-Tele)
Distancia de trabajo100 mm to 1500 mm (Wide-Tele)
Rango de aperturaF1.2 to F4.6
Velocidad de obturación1 s to 30,000 s
WDR140dB
Mejora de la imagen3D DNR, EIS, HLC/BLC, SVC
AGCAuto/Manual
Balance de blancosAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Día y NocheIR cut filter
IR SupplementUp to 400 m
Máscara de privacidad24 programmable privacy masks
Desempañador ópticoYes
Velocidad de movimiento horizontal (pan)configurable from 0.1° to 210°/s; preset speed: 280°/s
Velocidad de vertical (tilt) configurable from 0.1° to 150°/s, preset speed 250°/s
Main stream60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120) 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 176 × 144) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 176 × 120)
Compresión de vídeoMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Compresión de audioG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Acción de alarmaPreset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email
Entrada de alarma7, alarm input (0-5 VDC)
Salida de alarma2, alarm output
Entrada de Audio1, 3.5 mm Mic in/Line in interface. Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audioLinear level, impedance: 600 Ω
Interfaz de comunicación1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Almacenamiento en redMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, open network video interface
Vista en vivo simultáneaUp to 20 channels
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User
SeguridadUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClienteiVMS-4200, Hik-Connect
Navegador webLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +

General
Adjustment RangeNetwork Camera (Universal Joint Module): Pan: 90°, Tilt: - 45° to 45° Speed Dome: Pan: 360°, Tilt: - 20° to 90°, Auto Flip
Montajewall Mount
Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Fuente de alimentación24 VAC±25%,one power supply for whole system
Consumo de energíamax. 70 W Speed Dome Consumption: max.60W (If powered separately)
Working Temperature/Humidity- 40 °C to 65 °C (- 40 °F to 149 °F); Humidity: 90% or less
Nivel de protecciónIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
DimensionesΦ266.6 mm × 573.5 mm × 699.8 mm (Φ10.5" × 22.6" × 27.5")
10.89 kg (Approx. 24.0 lb)

Tabla de rango de detección/rango de función inteligente
Rango VCA para humanos70 m
Rango VCA para vehículos210 m

Función del sistema

Haga clic en Enlace

One-Touch connection between bi-spectrum bullet camera and PTZ camera beforehand via VMS client

Modo de seguimiento

Manual/Auto

Manual Tracking

Drawing an area in VMS client within the field of the bullet camera, leading the PTZ camera zooming in

Seguimiento de objetivos múltiples

Up to 30 targets simultaneously

Event Tracking

Intrusion Detection, Line Crossing Detection

Tracking Duration

Configurable in VMS client for PTZ tracking

Medida de temperatura

3 temperature measurement rule types; 21 rules in total (10 points, 10 areas, and 1 line)

Rango de temperatura

- 20 °C to 150 °C (- 4 °F to 302 °F)

Precisión de la temperatura

± 8 °C (± 14.4 °F)

Detección de fuego

Dynamic fire detection, up to 10 fire points detectable.

Bullet Camera- Thermal Module

Sensor de imagen

Vanadium Oxide Uncooled Focal Plane Arrays

Resolución

384 × 288

Tamaño de píxel

17 μm

Spectral Range

8 μm to 14 μm

NETD (Noise Equivalent Temperature Difference)

≤ 35 mk (@25 °C,F#=1.0)

Longitud focal

9.7 mm

IFOV

1.75 mrad

Campo de visión

37.5° × 28.5° (H × V)

Min. Distancia de enfoque

1 m

Apertura

F1.0

Zoom Digital

×2, ×4, ×8

Bullet Camera- Optical Module

Sensor de imagen

1/2.7" Progressive Scan CMOS

Resolución

2688 × 1520, 4 MP

Velocidad de obturación

1 s to 1/100,000 s

Iluminación mínima

Color: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)

Longitud focal

4 mm

Campo de visión

84° × 44.8° (H × V)

Apertura

F1.6

WDR

120 dB

Bullet Camera- General

Main stream

Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

Sub-stream

Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288, 176 × 144) 60 HZ: 30 fps (704 × 480, 352 × 240, 176 × 120) Thermal channel 25 fps (704 × 576, 352 × 288, 320 × 240)

Compresión de vídeo

Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG

Compresión de audio

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/OPUS/PCM

Entrada de alarma

2, alarm input (0-5 VDC) 2, alarm output

Salida de alarma

2-ch relay outputs, alarm response actions configurable

Entrada de Audio

1, 3.5 mm Mic in/Line in interface. Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%

Salida de audio

Linear level, impedance: 600 Ω

Interfaz de comunicación

1, RJ45 10 M/100 M self-adaptive Ethernet interface. 1, RS-485 interface

Domo óptico de velocidad

Sensor de imagen

1/1.8" Progressive Scan CMOS

Iluminación mínima

Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON), 0 Lux with IR

Resolución

2688 × 1520

Longitud focal

6.0 - 252 mm, 42 × optical zoom

Velocidad del Zoom

Approx. 4.8 s (Optical, Wide-Tele)

Zoom Digital

16 x

Campo de visión

58.7° to 2.0° (Wide-Tele)

Distancia de trabajo

100 mm to 1500 mm (Wide-Tele)

Rango de apertura

F1.2 to F4.6

Velocidad de obturación

1 s to 30,000 s

WDR

140dB

Mejora de la imagen

3D DNR, EIS, HLC/BLC, SVC

AGC

Auto/Manual

Balance de blancos

Auto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp

Día y Noche

IR cut filter

IR Supplement

Up to 400 m

Máscara de privacidad

24 programmable privacy masks

Desempañador óptico

Yes

Velocidad de movimiento horizontal (pan)

configurable from 0.1° to 210°/s; preset speed: 280°/s

Velocidad de vertical (tilt)

configurable from 0.1° to 150°/s, preset speed 250°/s

Main stream

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120) 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 176 × 144) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 176 × 120)

Compresión de vídeo

Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG

Compresión de audio

G .711u/G.711a/G.722.1/MP2L2/G.726/PCM

Acción de alarma

Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email

Entrada de alarma

7, alarm input (0-5 VDC)

Salida de alarma

2, alarm output

Entrada de Audio

1, 3.5 mm Mic in/Line in interface. Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%

Salida de audio

Linear level, impedance: 600 Ω

Interfaz de comunicación

1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE

Almacenamiento en red

MicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

API

ISAPI, HIKVISION SDK, open network video interface

Vista en vivo simultánea

Up to 20 channels

Nivel de usuario/operador

Up to 32 users, 3 levels: Administrator, Operator, User

Seguridad

User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering

Cliente

iVMS-4200, Hik-Connect

Navegador web

Live view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +

General

Adjustment Range

Network Camera (Universal Joint Module): Pan: 90°, Tilt: - 45° to 45° Speed Dome: Pan: 360°, Tilt: - 20° to 90°, Auto Flip

Montaje

wall Mount

Menu Language

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Fuente de alimentación

24 VAC±25%,one power supply for whole system

Consumo de energía

max. 70 W Speed Dome Consumption: max.60W (If powered separately)

Working Temperature/Humidity

- 40 °C to 65 °C (- 40 °F to 149 °F); Humidity: 90% or less

Nivel de protección

IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensiones

Φ266.6 mm × 573.5 mm × 699.8 mm (Φ10.5" × 22.6" × 27.5")

10.89 kg (Approx. 24.0 lb)

Tabla de rango de detección/rango de función inteligente

Rango VCA para humanos

70 m

Rango VCA para vehículos

210 m

Función del sistema

Haga clic en EnlaceOne-Touch connection between bi-spectrum bullet camera and PTZ camera beforehand via VMS client
Modo de seguimientoManual/Auto
Manual TrackingDrawing an area in VMS client within the field of the bullet camera, leading the PTZ camera zooming in
Seguimiento de objetivos múltiplesUp to 30 targets simultaneously
Event TrackingIntrusion Detection, Line Crossing Detection
Tracking DurationConfigurable in VMS client for PTZ tracking
Medida de temperatura3 temperature measurement rule types; 21 rules in total (10 points, 10 areas, and 1 line)
Rango de temperatura- 20 °C to 150 °C (- 4 °F to 302 °F)
Precisión de la temperatura± 8 °C (± 14.4 °F)
Detección de fuegoDynamic fire detection, up to 10 fire points detectable.

Bullet Camera- Thermal Module

Sensor de imagenVanadium Oxide Uncooled Focal Plane Arrays
Resolución384 × 288
Tamaño de píxel17 μm
Spectral Range8 μm to 14 μm
NETD (Noise Equivalent Temperature Difference)≤ 35 mk (@25 °C,F#=1.0)
Longitud focal9.7 mm
IFOV1.75 mrad
Campo de visión37.5° × 28.5° (H × V)
Min. Distancia de enfoque1 m
AperturaF1.0
Zoom Digital×2, ×4, ×8

Bullet Camera- Optical Module

Sensor de imagen1/2.7" Progressive Scan CMOS
Resolución2688 × 1520, 4 MP
Velocidad de obturación1 s to 1/100,000 s
Iluminación mínimaColor: 0.0089 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON)
Longitud focal4 mm
Campo de visión84° × 44.8° (H × V)
AperturaF1.6
WDR120 dB

Bullet Camera- General

Main streamOptical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Sub-streamOptical channel 50 HZ: 25 fps (704 × 576, 352 × 288, 176 × 144) 60 HZ: 30 fps (704 × 480, 352 × 240, 176 × 120) Thermal channel 25 fps (704 × 576, 352 × 288, 320 × 240)
Compresión de vídeoMain Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Compresión de audioG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/OPUS/PCM
Entrada de alarma2, alarm input (0-5 VDC) 2, alarm output
Salida de alarma2-ch relay outputs, alarm response actions configurable
Entrada de Audio1, 3.5 mm Mic in/Line in interface. Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audioLinear level, impedance: 600 Ω
Interfaz de comunicación1, RJ45 10 M/100 M self-adaptive Ethernet interface. 1, RS-485 interface

Domo óptico de velocidad

Sensor de imagen1/1.8" Progressive Scan CMOS
Iluminación mínima Color: 0.002 Lux @ (F1.5, AGC ON), B/W: 0.0002 Lux @ (F1.5, AGC ON), 0 Lux with IR
Resolución2688 × 1520
Longitud focal6.0 - 252 mm, 42 × optical zoom
Velocidad del ZoomApprox. 4.8 s (Optical, Wide-Tele)
Zoom Digital16 x
Campo de visión58.7° to 2.0° (Wide-Tele)
Distancia de trabajo100 mm to 1500 mm (Wide-Tele)
Rango de aperturaF1.2 to F4.6
Velocidad de obturación1 s to 30,000 s
WDR140dB
Mejora de la imagen3D DNR, EIS, HLC/BLC, SVC
AGCAuto/Manual
Balance de blancosAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Daylight Lamp/Sodium Lamp
Día y NocheIR cut filter
IR SupplementUp to 400 m
Máscara de privacidad24 programmable privacy masks
Desempañador ópticoYes
Velocidad de movimiento horizontal (pan)configurable from 0.1° to 210°/s; preset speed: 280°/s
Velocidad de vertical (tilt) configurable from 0.1° to 150°/s, preset speed 250°/s
Main stream60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120) 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 352 × 288, 176 × 144) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 352 × 240, 176 × 120)
Compresión de vídeoMain Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Compresión de audioG .711u/G.711a/G.722.1/MP2L2/G.726/PCM
Acción de alarmaPreset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email
Entrada de alarma7, alarm input (0-5 VDC)
Salida de alarma2, alarm output
Entrada de Audio1, 3.5 mm Mic in/Line in interface. Line input: 2-2.4 V [p-p], output impedance: 1 KΩ ± 10%
Salida de audioLinear level, impedance: 600 Ω
Interfaz de comunicación1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface

Red

ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Almacenamiento en redMicroSD/SDHC/SDXC card (up to 256 G) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
APIISAPI, HIKVISION SDK, open network video interface
Vista en vivo simultáneaUp to 20 channels
Nivel de usuario/operadorUp to 32 users, 3 levels: Administrator, Operator, User
SeguridadUser authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
ClienteiVMS-4200, Hik-Connect
Navegador webLive view (plug-in allowed) : Internet Explorer 11 Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 + Local service : Chrome 57.0 +, Firefox 52.0 +

General

Adjustment RangeNetwork Camera (Universal Joint Module): Pan: 90°, Tilt: - 45° to 45° Speed Dome: Pan: 360°, Tilt: - 20° to 90°, Auto Flip
Montajewall Mount
Menu Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Fuente de alimentación24 VAC±25%,one power supply for whole system
Consumo de energíamax. 70 W Speed Dome Consumption: max.60W (If powered separately)
Working Temperature/Humidity- 40 °C to 65 °C (- 40 °F to 149 °F); Humidity: 90% or less
Nivel de protecciónIP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
DimensionesΦ266.6 mm × 573.5 mm × 699.8 mm (Φ10.5" × 22.6" × 27.5")
10.89 kg (Approx. 24.0 lb)
