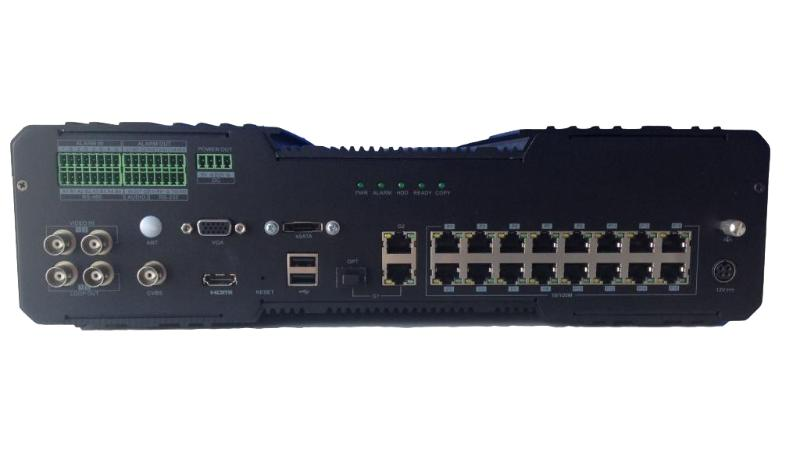

Traffic Management Server

Analog camera and IP camera are connectable, including 2 HD TVI cameras.
BNC interface and video loop interface for video output.
Powers external device like external HDD with 12 VDC power output.
Easy-to-dismounting design makes HDD convenient to maintenance.
Low consumption and lower heat generation.
GPS time synchronization and speed test are supported.
Operable via Web.
Provides SDK for developing.
Supports third-party developing via open hardware platform.

View Less

Ficha Técnica

Modelos disponibles:

DS-TP50-12DT(4T)

DS-TP50-12DT

EOL

Especificación
Resources
Accesorios

Ficha Técnica

Interfaz
Entrada de video analógico2 video inputs of BNC interface
Salida de video analógico2 video outputs of loop interface
Entrada de Audio1
Salida de audio1
Interfaz VGA1
Interfaz HDMI1
CVBS Interface1
Interfaz de red16 100M Ethernet interfaces 1 internal 10M/100M/1000M self-adaptive Ethernet interface which is photoelectric transferable when combined with optional optical module. 1 external 10M/100M/1000M self-adaptive Ethernet interface
Entrada de alarma4 relay alarm inputs
Salida de alarma4 relay alarm outputs
Interfaz RS-2322
Interfaz RS-4854
Interfaz USB2 × USB 2.0
Salida de alimentaciónOne 12 VDC power output

Función
Almacenamiento de datosStores passing vehicle information
VídeoStores videos. Storage duration depends on stream bitrate and HDD capacity.
UploadingANR (Automatic Network Replenishment) and manual uploading
Red2 IP addresses of different network segment are configurable

Sistema
ProcesadorHigh-performance ARM A9 processor
Sistema operativoEmbedded Linux operation system
Operation MediumWeb, VGA, HDMI
Almacenamiento4 SATA interfaces for 4 HDDs
CapacidadUp to 4 TB capacity for each HDD
External Storage1 eSATA interface for 1 external HDD
Botón de reinicio1
indicador5 status indicators, including power indicator, alarm indicator, HDD indicator, ready indicator, backup indicator

General
Temperatura de trabajo-40 °C to +70 °C (-40 °F to +158 °F)
Condiciones de Humedad10% to 90%
Device Dimension (W × D × H)370 × 273 × 102.5 mm (14.6 × 10.7 × 4.0 inch)
Fuente de alimentaciónAdaptor of 12 VDC/12.5 A

Interfaz

Entrada de video analógico

2 video inputs of BNC interface

Salida de video analógico

2 video outputs of loop interface

Entrada de Audio

Salida de audio

Interfaz VGA

Interfaz HDMI

CVBS Interface

Interfaz de red

16 100M Ethernet interfaces 1 internal 10M/100M/1000M self-adaptive Ethernet interface which is photoelectric transferable when combined with optional optical module. 1 external 10M/100M/1000M self-adaptive Ethernet interface

Entrada de alarma

4 relay alarm inputs

Salida de alarma

4 relay alarm outputs

Interfaz RS-232

Interfaz RS-485

Interfaz USB

2 × USB 2.0

Salida de alimentación

One 12 VDC power output

Función

Almacenamiento de datos

Stores passing vehicle information

Vídeo

Stores videos. Storage duration depends on stream bitrate and HDD capacity.

Uploading

ANR (Automatic Network Replenishment) and manual uploading

Red

2 IP addresses of different network segment are configurable

Sistema

Procesador

High-performance ARM A9 processor

Sistema operativo

Embedded Linux operation system

Operation Medium

Web, VGA, HDMI

Almacenamiento

4 SATA interfaces for 4 HDDs

Capacidad

Up to 4 TB capacity for each HDD

External Storage

1 eSATA interface for 1 external HDD

Botón de reinicio

indicador

5 status indicators, including power indicator, alarm indicator, HDD indicator, ready indicator, backup indicator

General

Temperatura de trabajo

-40 °C to +70 °C (-40 °F to +158 °F)

Condiciones de Humedad

10% to 90%

Device Dimension (W × D × H)

370 × 273 × 102.5 mm (14.6 × 10.7 × 4.0 inch)

Fuente de alimentación

Adaptor of 12 VDC/12.5 A
