iDS-TCV507-BIR

EOL

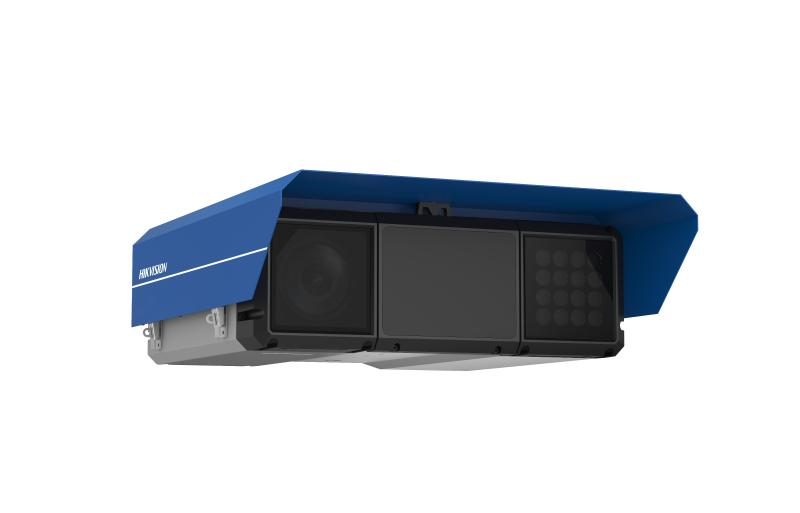

5 MP ANPR All-Rounder Traffic Camera

All-in-one design, integrating camera, radar and supplement light
High quality imaging with 5 MP resolution (2/3”GMOS)
Excellent low-light performance, Color: 0.001 Lux@(F1.4, AGC ON), 0.0005 Lux with IR
Support speed detection with built-in 24 GHz radar
Support license plate recognition (LPR)
Support vehicle feature recognition: vehicle type / color / manufacturer / license plate color recognition, no-plate vehicle capture
Violation behaviors detection: driving on lane line, Illegal lane change, wrong-way driving detection, seatbelt and phone call detection.
Supports side mounting with convenient installation and debug

View Less

Modelos disponibles:

iDS-TCV507-BIR/1550

Cámara
Sensor de imagen5 MP ( 2/3'' GMOS)
Max. Resolución2464 × 2056
Iluminación mínimaColor: 0.001 Lux@(F1.4, AGC ON), 0.0005 Lux with IR
Tiempo de obturación50 us-20000 us
Día y NocheIR cut filter

Lente
Focal Length & FOV15 to 50 mm CS-Mount Horizontal: 42.7° to 13.7° Vertical: 23.4° to 7.6°
Focus Manual
AperturaF1.4-C

Iluminador
Light Bead16
Built-in Supplement Light RangeUp to 40 m
IR Wavelength850 nm
External Supplement LightExternal strobe/flash/solid light

Radar
Frecuencia de trabajo24.05 to 24.25 GHz
Rango de velocidad10 to 320 km/h
Max. Objetivos detectablesup to 32
Precisión de medición de velocidad-2 to 2 km/h
Trigger Consistency≤ ± 1 m
Trigger ModeApproaching direction, leaving direction, and both
Antenna Beam Width35° × 16°
Coverage2

Vídeo
Main stream50 Hz: 50 fps (2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080) 60 Hz: 30 fps(2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080)
Sub Stream1920 × 1080, 1280 × 720, 704 × 576, 352 × 288
Compresión de videoMain stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline profile/Main profile/High profile
Tipo H.265Baseline profile/Main profile/High profile
Codificación de video escalable (SVC)H.264 and H.265 encoding

Red
ProtocolosTCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP
Vista en vivo simultáneaUp to 6 channels
APIISAPI, SDK
Usuario/operadorUp to 32 users 3 user levels: administrator, operator and user
SeguridadPassword protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)
Almacenamiento en redMicroSD/TF card (128 GB), local storage and CVR, NVR, ANR
ClienteiVMS-4200 (Only for video live view and LPR information search), Hik-Central Master, Hik-Central Pro
Navegador webIE8-IE11, plug-in free live view supported

Imagen
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
Interruptor día/nocheAuto/Scheduled/Manual
SNR60 dB
Mejora de la imagenBLC, HLC, 3D DNR

Supplement Detection (Satellite Positioning)
Posicionamiento satelitalOptional

Interfaz
Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
Almacenamiento a bordoBuilt-in microSD/TF card, up to 128 GB
Temperature SensorOptional
Alarma6 output interfaces
RS-4851 RS-485 interface

Evento
Evento BásicoHDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Tráfico por carretera y detección de vehículos
CoverageUp to 2 lanes
Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
Función inteligenteVehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection;License plate recognition
LPR Countries/RegionsMiddle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh America: The United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian State, Belgium, Luxembourg, Albania, Kosovo Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia
Accuracy (Under recommended installation and lighting conditions)Capture rate > 98% Vehicle moving direction recognition accuracy > 98% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95%
Sin detección de matrículaSupported
Motocicleta LPRSupported
Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
Vehicle ColorRed, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only.
Vehicle Manufacturer84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
License Plate Color RecognitionCustomized to support
Driving on Lane Line DetectionSupported (only strobe light mode)
Illegal Lane Change DetectionSupported (only strobe light mode)
Wrong-way Driving DetectionSupported
Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
Seatbelt DetectionSupported (with flash supplement light SL-1211-1I)
Phone Call DetectionSupported (with flash supplement light SL-1211-1I)

General
Versión del firmwareV4.3.2
Sistema operativoLinux
alimentación100 to 240 VAC (with power adapter, by default) 36 VDC ± 20% (without power adapter); < 70 W
MaterialAluminum alloy
DimensiónWith package: 375 × 372 × 141 mm (14.8 × 14.6 × 5.6 inch)
Weight Approx. 7.2 kg (15.9 lb.)
Operating ConditionTemperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% or less (non-condensing)
Función generalOne-key reset, three streams, heartbeat, password protection, watermark
CalentadorSupported

Certificaciones
ProtecciónIP65

Especificación

Cámara

Sensor de imagen

5 MP ( 2/3'' GMOS)

Max. Resolución

2464 × 2056

Iluminación mínima

Color: 0.001 Lux@(F1.4, AGC ON), 0.0005 Lux with IR

Tiempo de obturación

50 us-20000 us

Día y Noche

IR cut filter

Lente

Focal Length & FOV

15 to 50 mm CS-Mount Horizontal: 42.7° to 13.7° Vertical: 23.4° to 7.6°

Focus

Manual

Apertura

F1.4-C

Iluminador

Light Bead

Built-in Supplement Light Range

Up to 40 m

IR Wavelength

850 nm

External Supplement Light

External strobe/flash/solid light

Radar

Frecuencia de trabajo

24.05 to 24.25 GHz

Rango de velocidad

10 to 320 km/h

Max. Objetivos detectables

up to 32

Precisión de medición de velocidad

-2 to 2 km/h

Trigger Consistency

≤ ± 1 m

Trigger Mode

Approaching direction, leaving direction, and both

Antenna Beam Width

35° × 16°

Coverage

Vídeo

Main stream

50 Hz: 50 fps (2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080) 60 Hz: 30 fps(2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080)

Sub Stream

1920 × 1080, 1280 × 720, 704 × 576, 352 × 288

Compresión de video

Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline profile/Main profile/High profile

Tipo H.265

Baseline profile/Main profile/High profile

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Red

Protocolos

TCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP

Vista en vivo simultánea

Up to 6 channels

API

ISAPI, SDK

Usuario/operador

Up to 32 users 3 user levels: administrator, operator and user

Seguridad

Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)

Almacenamiento en red

MicroSD/TF card (128 GB), local storage and CVR, NVR, ANR

Cliente

iVMS-4200 (Only for video live view and LPR information search), Hik-Central Master, Hik-Central Pro

Navegador web

IE8-IE11, plug-in free live view supported

Imagen

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.

Interruptor día/noche

Auto/Scheduled/Manual

SNR

60 dB

Mejora de la imagen

BLC, HLC, 3D DNR

Supplement Detection (Satellite Positioning)

Posicionamiento satelital

Optional

Interfaz

Ethernet Interface

1 RJ45 10M/100M/1000M self-adaptive Ethernet interface

Almacenamiento a bordo

Built-in microSD/TF card, up to 128 GB

Temperature Sensor

Optional

Alarma

6 output interfaces

RS-485

1 RS-485 interface

Evento

Evento Básico

HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Tráfico por carretera y detección de vehículos

Coverage

Up to 2 lanes

Trigger Mode

External I/O trigger/Radar trigger/Video trigger

Función inteligente

Vehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection;License plate recognition

LPR Countries/Regions

Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh America: The United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian State, Belgium, Luxembourg, Albania, Kosovo Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia

Accuracy (Under recommended installation and lighting conditions)

Capture rate > 98% Vehicle moving direction recognition accuracy > 98% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95%

Sin detección de matrícula

Supported

Motocicleta LPR

Supported

Vehicle Type

Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle

Vehicle Color

Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only.

Vehicle Manufacturer

84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO

License Plate Color Recognition

Customized to support

Driving on Lane Line Detection

Supported (only strobe light mode)

Illegal Lane Change Detection

Supported (only strobe light mode)

Wrong-way Driving Detection

Supported

Emergency Lane Occupation

Supported (truck forbidden lane, emergency lane, urban bus lane)

Seatbelt Detection

Supported (with flash supplement light SL-1211-1I)

Phone Call Detection

Supported (with flash supplement light SL-1211-1I)

General

Versión del firmware

V4.3.2

Sistema operativo

Linux

alimentación

100 to 240 VAC (with power adapter, by default) 36 VDC ± 20% (without power adapter); < 70 W

Material

Aluminum alloy

Dimensión

With package: 375 × 372 × 141 mm (14.8 × 14.6 × 5.6 inch)

Weight

Approx. 7.2 kg (15.9 lb.)

Operating Condition

Temperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% or less (non-condensing)

Función general

One-key reset, three streams, heartbeat, password protection, watermark

Calentador

Supported

Certificaciones

Protección

IP65

Cámara

Sensor de imagen5 MP ( 2/3'' GMOS)
Max. Resolución2464 × 2056
Iluminación mínimaColor: 0.001 Lux@(F1.4, AGC ON), 0.0005 Lux with IR
Tiempo de obturación50 us-20000 us
Día y NocheIR cut filter

Lente

Focal Length & FOV15 to 50 mm CS-Mount Horizontal: 42.7° to 13.7° Vertical: 23.4° to 7.6°
Focus Manual
AperturaF1.4-C

Iluminador

Light Bead16
Built-in Supplement Light RangeUp to 40 m
IR Wavelength850 nm
External Supplement LightExternal strobe/flash/solid light

Radar

Frecuencia de trabajo24.05 to 24.25 GHz
Rango de velocidad10 to 320 km/h
Max. Objetivos detectablesup to 32
Precisión de medición de velocidad-2 to 2 km/h
Trigger Consistency≤ ± 1 m
Trigger ModeApproaching direction, leaving direction, and both
Antenna Beam Width35° × 16°
Coverage2

Vídeo

Main stream50 Hz: 50 fps (2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080) 60 Hz: 30 fps(2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080)
Sub Stream1920 × 1080, 1280 × 720, 704 × 576, 352 × 288
Compresión de videoMain stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline profile/Main profile/High profile
Tipo H.265Baseline profile/Main profile/High profile
Codificación de video escalable (SVC)H.264 and H.265 encoding

Red

ProtocolosTCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP
Vista en vivo simultáneaUp to 6 channels
APIISAPI, SDK
Usuario/operadorUp to 32 users 3 user levels: administrator, operator and user
SeguridadPassword protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest authentication for ONVIF (Version 2.1)
Almacenamiento en redMicroSD/TF card (128 GB), local storage and CVR, NVR, ANR
ClienteiVMS-4200 (Only for video live view and LPR information search), Hik-Central Master, Hik-Central Pro
Navegador webIE8-IE11, plug-in free live view supported

Imagen

Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
Interruptor día/nocheAuto/Scheduled/Manual
SNR60 dB
Mejora de la imagenBLC, HLC, 3D DNR

Supplement Detection (Satellite Positioning)

Posicionamiento satelitalOptional

Interfaz

Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet interface
Almacenamiento a bordoBuilt-in microSD/TF card, up to 128 GB
Temperature SensorOptional
Alarma6 output interfaces
RS-4851 RS-485 interface

Evento

Evento BásicoHDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Tráfico por carretera y detección de vehículos

CoverageUp to 2 lanes
Trigger ModeExternal I/O trigger/Radar trigger/Video trigger
Función inteligenteVehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection;License plate recognition
LPR Countries/RegionsMiddle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh America: The United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian State, Belgium, Luxembourg, Albania, Kosovo Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia
Accuracy (Under recommended installation and lighting conditions)Capture rate > 98% Vehicle moving direction recognition accuracy > 98% LPR accuracy > 98% Mistaken capture rate < 2% European and Russian-Speaking Regions: LPR accuracy > 98% Country/Region recognition accuracy > 95%
Sin detección de matrículaSupported
Motocicleta LPRSupported
Vehicle TypeCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
Vehicle ColorRed, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only.
Vehicle Manufacturer84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
License Plate Color RecognitionCustomized to support
Driving on Lane Line DetectionSupported (only strobe light mode)
Illegal Lane Change DetectionSupported (only strobe light mode)
Wrong-way Driving DetectionSupported
Emergency Lane OccupationSupported (truck forbidden lane, emergency lane, urban bus lane)
Seatbelt DetectionSupported (with flash supplement light SL-1211-1I)
Phone Call DetectionSupported (with flash supplement light SL-1211-1I)

General

Versión del firmwareV4.3.2
Sistema operativoLinux
alimentación100 to 240 VAC (with power adapter, by default) 36 VDC ± 20% (without power adapter); < 70 W
MaterialAluminum alloy
DimensiónWith package: 375 × 372 × 141 mm (14.8 × 14.6 × 5.6 inch)
Weight Approx. 7.2 kg (15.9 lb.)
Operating ConditionTemperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% or less (non-condensing)
Función generalOne-key reset, three streams, heartbeat, password protection, watermark
CalentadorSupported
