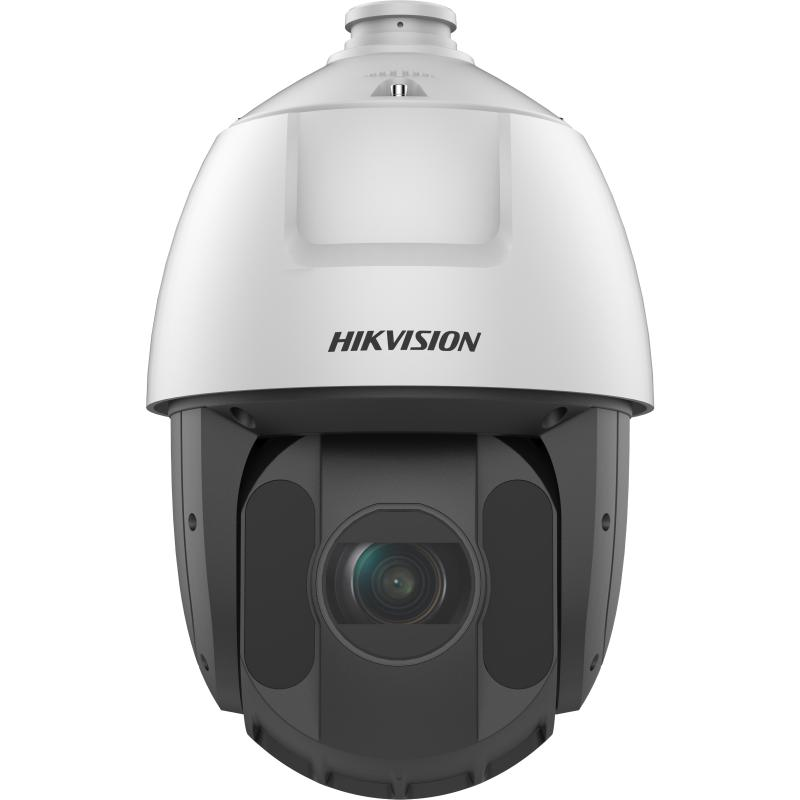

2 MP 25X Powered by DarkFighter IR Network Speed Dome

1/2.8" Progressive Scan CMOS
High quality imaging with 2 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
25× optical zoom and 16× digital zoom provide close up views over expansive areas
WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
Expansive night view with up to 150 m IR distance
24 VAC & PoE (802.3at)
Efficient H.265+/H.265 compression technology

View Less

Ficha Técnica

Modelos disponibles:

DS-2DE5225IW-AE(S6)

EOL

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen1/2.8″ Progressive Scan CMOS
Max. Resolución1920 × 1080
Iluminación mínimaColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Velocidad de obturación1 s to 1/30,000 s
Día y NocheIR cut filter
Zoom25x optional, 16x digital
Obturador lentoYes

Lente
EnfoqueAuto, semi-auto, manual
AperturaMax. F1.6
Velocidad del ZoomApprox. 3.6 s
Longitud focal4.8 mm to 120 mm
FOVHorizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaIR Distance: up to 150 m

PTZ
Velocidad de movimiento horizontal (pan)Pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Velocidad de vertical (tilt)Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional PanYes
Acción del parquePreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Tarea programadaPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Rango de movimiento (pan)360°
Rango de movimiento (tilt)-15° to 90° (auto flip)
Preajustes300
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans
Memoria de apagadoyes
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Congelación preestablecidayes

Vídeo
Compresión de vídeoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline profile/Main profile/High profile
Tipo H.265Main profile
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)8 fixed regions for each stream
Main stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Audio
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps (PCM)
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/48 kHz
Filtro de ruido ambientalyes

Red
ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP, WebSocket, WebSockets
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users; 3 user levels: administrator, operator, and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClienteiVMS-4200, HikCentral Pro, Hik-Connect
Navegador webIE 10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR＞52 dB
DesempañarDigital Defog
Mejora de la imagenBLC, HLC, 3D DNR
Máscara de privacidad24 programmable polygon privacy masks, mask color or mosaic configurable
Enfoque regionalYes
Exposición regionalYes

Interfaz
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarma2 inputs, 1 output
ReiniciarYes

Evento
Evento BásicoMotion detection, video tampering alarm, exception, alarm input and output
Evento inteligenteFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Enlace de alarmaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

General
alimentación24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)
MaterialMetal
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
DemistaYes
DimensiónØ 210 mm × 344.7 mm (Ø 8.27" × 13.57")
Approx. 3.0 kg (6.61 lb.)

Certificaciones
ProtecciónIP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

Cámara

Sensor de imagen

1/2.8″ Progressive Scan CMOS

Max. Resolución

1920 × 1080

Iluminación mínima

Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR

Velocidad de obturación

1 s to 1/30,000 s

Día y Noche

IR cut filter

Zoom

25x optional, 16x digital

Obturador lento

Yes

Lente

Enfoque

Auto, semi-auto, manual

Apertura

Max. F1.6

Velocidad del Zoom

Approx. 3.6 s

Longitud focal

4.8 mm to 120 mm

FOV

Horizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

IR Distance: up to 150 m

PTZ

Velocidad de movimiento horizontal (pan)

Pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s

Velocidad de vertical (tilt)

Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s

Proportional Pan

Yes

Acción del parque

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan

Tarea programada

Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output

Rango de movimiento (pan)

360°

Rango de movimiento (tilt)

-15° to 90° (auto flip)

Preajustes

300

Escaneo de patrulla

8 patrols, up to 32 presets for each patrol

Patrón de escaneo

4 pattern scans

Memoria de apagado

yes

Posicionamiento 3D

yes

Pantalla de estado de PTZ

yes

Congelación preestablecida

yes

Vídeo

Compresión de vídeo

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline profile/Main profile/High profile

Tipo H.265

Main profile

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

8 fixed regions for each stream

Main stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream

50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Audio

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM

Velocidad de bits de audio

64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps (PCM)

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/48 kHz

Filtro de ruido ambiental

yes

Red

Protocolos

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP, WebSocket, WebSockets

Vista en vivo simultánea

Up to 20 channels

API

Open Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP

Usuario/operador

Up to 32 users; 3 user levels: administrator, operator, and user

Seguridad

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)

Almacenamiento en red

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Cliente

iVMS-4200, HikCentral Pro, Hik-Connect

Navegador web

IE 10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser

Interruptor día/noche

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

＞52 dB

Desempañar

Digital Defog

Mejora de la imagen

BLC, HLC, 3D DNR

Máscara de privacidad

24 programmable polygon privacy masks, mask color or mosaic configurable

Enfoque regional

Yes

Exposición regional

Yes

Interfaz

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Almacenamiento a bordo

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Audio

1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω

Alarma

2 inputs, 1 output

Reiniciar

Yes

Evento

Evento Básico

Motion detection, video tampering alarm, exception, alarm input and output

Evento inteligente

Face detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection

Enlace de alarma

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

General

alimentación

24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)

Material

Metal

Operating Condition

-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)

Demista

Yes

Dimensión

Ø 210 mm × 344.7 mm (Ø 8.27" × 13.57")

Approx. 3.0 kg (6.61 lb.)

Certificaciones

Protección

IP66 (IEC 60529-2013), TVS 6000V lightning protection, surge protection and voltage transient protection

Cámara

Sensor de imagen1/2.8″ Progressive Scan CMOS
Max. Resolución1920 × 1080
Iluminación mínimaColor: 0.005 Lux @ (F1.6, AGC ON); B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
Velocidad de obturación1 s to 1/30,000 s
Día y NocheIR cut filter
Zoom25x optional, 16x digital
Obturador lentoYes

Lente

EnfoqueAuto, semi-auto, manual
AperturaMax. F1.6
Velocidad del ZoomApprox. 3.6 s
Longitud focal4.8 mm to 120 mm
FOVHorizontal field of view: 57.6° to 2.5° (wide-tele), Vertical field of view: 34.4° to 1.4° (wide-tele), Diagonal field of view: 64.5° to 2.9° (wide-tele)

Iluminador

Tipo de luz suplementariaIR
Rango de luz suplementariaIR Distance: up to 150 m

PTZ

Velocidad de movimiento horizontal (pan)Pan speed: configurable from 0.1° to 120°/s; preset speed: 120°/s
Velocidad de vertical (tilt)Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional PanYes
Acción del parquePreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan
Tarea programadaPreset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
Rango de movimiento (pan)360°
Rango de movimiento (tilt)-15° to 90° (auto flip)
Preajustes300
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans
Memoria de apagadoyes
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Congelación preestablecidayes

Vídeo

Compresión de vídeoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline profile/Main profile/High profile
Tipo H.265Main profile
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)8 fixed regions for each stream
Main stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Audio

Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/32 Kbps (PCM)
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/48 kHz
Filtro de ruido ambientalyes

Red

ProtocolosIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP, WebSocket, WebSockets
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (Version 18.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users; 3 user levels: administrator, operator, and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClienteiVMS-4200, HikCentral Pro, Hik-Connect
Navegador webIE 10-11, Chrome 57+, Firefox 52+, Safari 12+

Imagen

Interruptor de parámetros de imagenYes
Configuración de imagenSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR＞52 dB
DesempañarDigital Defog
Mejora de la imagenBLC, HLC, 3D DNR
Máscara de privacidad24 programmable polygon privacy masks, mask color or mosaic configurable
Enfoque regionalYes
Exposición regionalYes

Interfaz

Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
Almacenamiento a bordoBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
Alarma2 inputs, 1 output
ReiniciarYes

Evento

Evento BásicoMotion detection, video tampering alarm, exception, alarm input and output
Evento inteligenteFace detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Enlace de alarmaUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)

General

alimentación24 VAC, Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)
MaterialMetal
Operating Condition-30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
DemistaYes
DimensiónØ 210 mm × 344.7 mm (Ø 8.27" × 13.57")
Approx. 3.0 kg (6.61 lb.)
