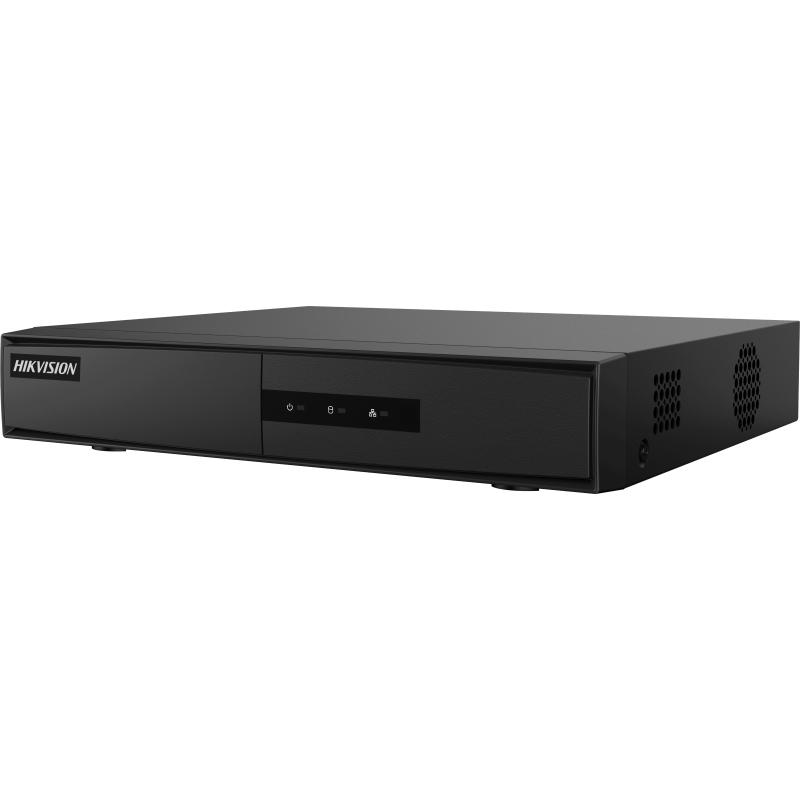

8-ch Mini 1U 8 PoE NVR

  • H.265+/H.265/H.264+/H.264 video compression
  • Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
  • Up to 8-ch network camera inputs
  • Up to 4-ch 1080p decoding capability
  • HDMI and VGA simultaneous output

Especificación
  • Video and Audio
  • Entrada de vídeo IP8-ch Up to 4 MP resolution
  • Incoming Bandwidth60 Mbps
  • Outgoing Bandwidth60 Mbps
  • HDMI Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • VGA Output1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Descodificación
  • Formato de decodificaciónH.265+/H.265/ H.264+/H.264
  • Resolución de grabación4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
  • Reproducción síncrona8-ch
  • Decodificación4-ch@1080p (25 fps), 2-ch@4 MP (25 fps)
  • Stream TypeVideo, Video & Audio
  • Red
  • Conexión remota16
  • Protocolo de redTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™
  • Interfaz de red1, RJ-45 10/100Mbps self-adaptive Ethernet interface
  • PoE
  • Interfaz8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • alimentación≤ 75 W
  • EstándarIEEE 802.3 af/at
  • Auxiliary Interface
  • SATA1 SATA interface
  • CapacidadUp to 6TB capacity for each disk
  • Alarma E/SN/A
  • Interfaz USBRear panel: 2 × USB 2.0
  • General
  • Fuente de alimentación48 VDC, 1.8 A
  • Consumo≤ 10 W
  • Temperatura de trabajo-10 to +55º C (+14 to +131º F)
  • Condiciones de Humedad10% to 90%
  • Dimensión (W × D × H)265 × 225 × 48 mm (10.4" × 8.9" × 1.9")
  • ≤ 1 kg (2.2 lb)
  • Certificación
  • FCCPart 15 Subpart B, ANSI C63.4-2014
  • CEEN50130-4, EN 61000-3-2,EN 61000-3-3
