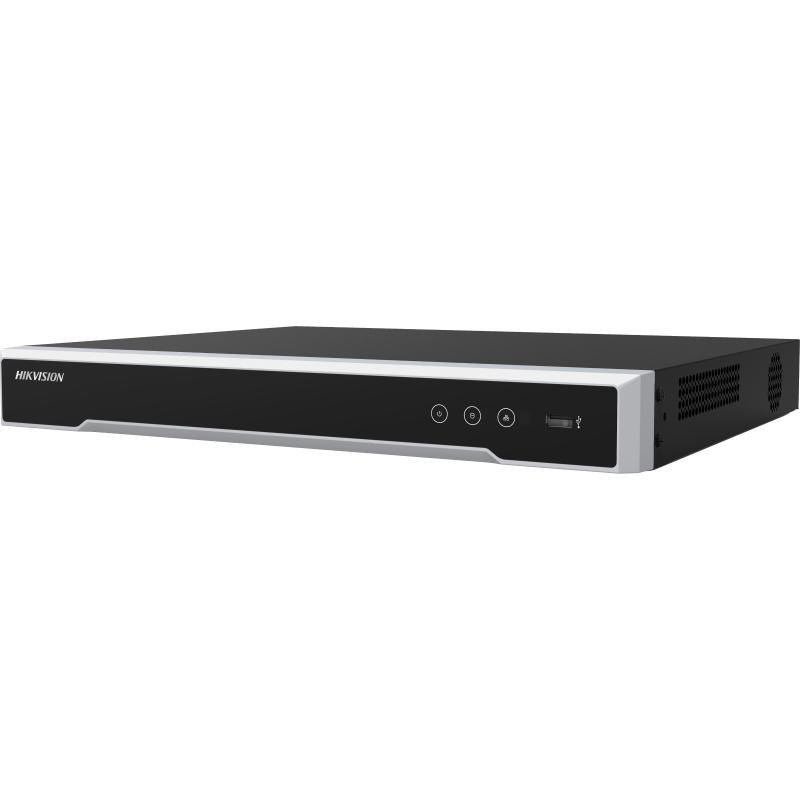

8-ch 1U 8 PoE 4K NVR

Up to 8 channel IP cameras can be connected
Up to 2-ch@12 MP/16-ch@1080p decoding capacity
1 HDMI and 1 VGA interfaces: both interfaces support independent video output
2 HDDs for continuous video recording
Plug & Play with 8 Power-over-Ethernet (PoE) interfaces
Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
Supports dual-stream recording to save time and bandwidth
Up to 8-ch IP speakers can be connected

View Less

Ficha Técnica

Modelos disponibles:

DS-7608NI-I2/8P

EOL

Especificación
Resources
Accesorios

Ficha Técnica

Video and Audio
Entrada de vídeo IP8-ch Up to 12 MP resolution
Incoming Bandwidth80 Mbps
Outgoing Bandwidth256 Mbps
HDMI Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output ModeHDMI/VGA independent output
Entrada de Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
Salida de audio1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Descodificación
Dual-Stream RecordingSupport
Formato de decodificaciónH.265/H.265+/H.264/H.264+/MPEG4
Decodificación2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
Reproducción Sincrónica8-ch
Resolución de grabación12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
Stream TypeVideo, Video & Audio
Compresión de audioG.711ulaw/G.711alaw/G.722/G.726

Red
Protocolo de redTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
Conexión remota64
Interfaz de red1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Camera Access ProtocolONVIF(Version 2.5), RTSP

PoE
Interfaz8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
alimentación≤ 120 W
EstándarIEEE 802.3 af/at

Auxiliary Interface
SATA2 SATA interfaces
CapacidadUp to 16 TB capacity for each disk
Alarma E/S4/1
Interfaz USBFront panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General
Fuente de alimentación100 to 240 VAC, 50 to 60 Hz
Consumo≤ 15 W (without HDD and PoE off)
Temperatura de trabajo-10 to +55º C (+14 to +131º F)
Condiciones de Humedad10% to 90%
Dimensión (W × D × H)385 × 315 × 52 mm (15.2" × 12.4" × 2.0")
≤ 3 kg (without HDD, 6.6 lb.)

Certificación
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Obtained CertificationCE, CB, UKCA, IC

Video and Audio

Entrada de vídeo IP

8-ch Up to 12 MP resolution

Incoming Bandwidth

80 Mbps

Outgoing Bandwidth

256 Mbps

HDMI Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI/VGA independent output

Entrada de Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Salida de audio

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Descodificación

Dual-Stream Recording

Support

Formato de decodificación

H.265/H.265+/H.264/H.264+/MPEG4

Decodificación

2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)

Reproducción Sincrónica

8-ch

Resolución de grabación

12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Stream Type

Video, Video & Audio

Compresión de audio

G.711ulaw/G.711alaw/G.722/G.726

Red

Protocolo de red

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP

Conexión remota

Interfaz de red

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Camera Access Protocol

ONVIF(Version 2.5), RTSP

PoE

Interfaz

8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

alimentación

≤ 120 W

Estándar

IEEE 802.3 af/at

Auxiliary Interface

SATA

2 SATA interfaces

Capacidad

Up to 16 TB capacity for each disk

Alarma E/S

4/1

Interfaz USB

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

Fuente de alimentación

100 to 240 VAC, 50 to 60 Hz

Consumo

≤ 15 W (without HDD and PoE off)

Temperatura de trabajo

-10 to +55º C (+14 to +131º F)

Condiciones de Humedad

10% to 90%

Dimensión (W × D × H)

385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

≤ 3 kg (without HDD, 6.6 lb.)

Certificación

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Obtained Certification

CE, CB, UKCA, IC
