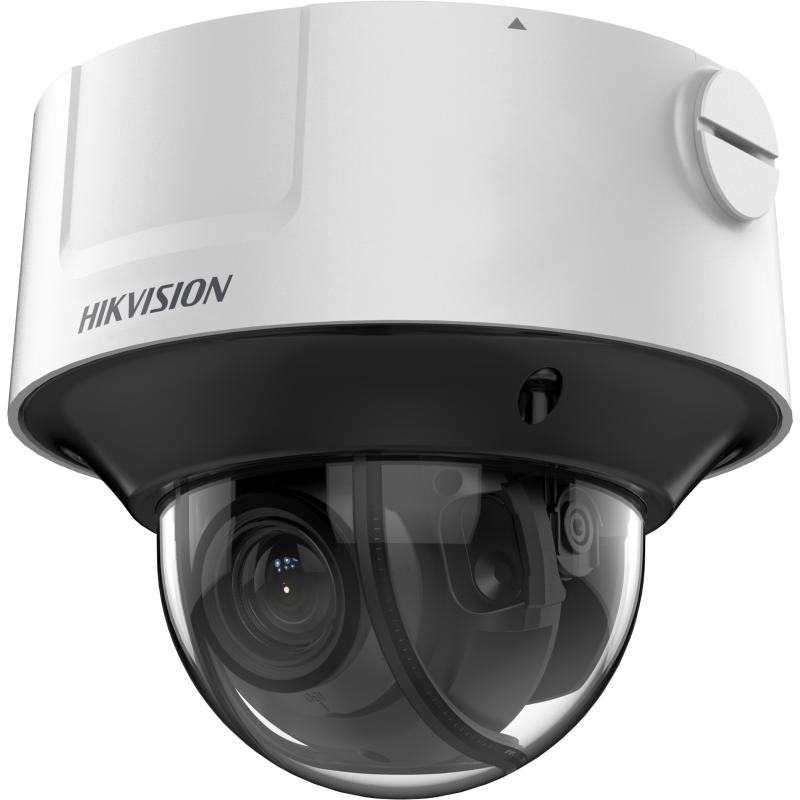

8 MP Darkfighter Varifocal Dome Network Camera

  • Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
  • Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources
  • High quality imaging with 8 MP resolution
  • Excellent low-light performance with DarkFighter technology
  • Focus on human and vehicle targets classification based on deep learning
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Motorized varifocal lens for easy installation
  • Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
  • -Y: Anti-Corrosion - NEMA 4X: NEMA 250-2014

View Less
View more
DS-2CD3D86G2T-IZHSUY(C)EOL
DS-2CD3D86G2T-IZHSU(C)EOL
Sales Inquiry

Modelos disponibles:

DS-2CD3D86G2T-IZHSUY(2.8-12mm)(C)

Modelos disponibles:

DS-2CD3D86G2T-IZHSU(2.8-12mm)(C)
DS-2CD3D86G2T-IZHSU(8-32mm)(C)
DS-2CD3D86G2T-IZHSU(Y)

Especificación

  • Cámara
  • Sensor de imagen 1/1.8" Progressive Scan CMOS
  • Max. Resolución 3840 × 2160
  • Iluminación mínima Color: 0.004 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
  • Tiempo de obturación 1/3 s to 1/100,000 s
  • Día y Noche IR cut filter
  • Ajuste de ángulo Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Lente
  • Focal Length & FOV 2.8 to 12 mm: horizontal FOV 112° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47° 8 to 32 mm: horizontal FOV 41.8° to 15°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
  • Lente Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
  • Montura del lente Integrated
  • Iris Type P-iris
  • Apertura 2.8 to 12 mm: F1.4; 8 to 32 mm: F1.7
  • Enfoque Auto,Semi-auto,Manual
  • Depth of Field 2.8 to 12 mm: 1.8 m to ∞ 8 to 32 mm: 9 m to ∞
  • DORI
  • DORI 2.8 to 12 mm: D: 87 to 216 m, O: 34.5 to 85 m, R: 17.4 to 43.2 m, I: 8.7 to 21.6 m 8 to 32 mm: D: 218 to 580 m, O: 86.5 to 230.2 m, R: 43.6 to116 m, I: 21.8 to 58 m
  • Iluminador
  • Rango de luz suplementaria 2.8 to 12 mm: up to 40 m; 8 to 32 mm: up to 50 m
  • Tipo de luz suplementaria IR
  • Luz de suplemento inteligente Yes
  • IR Wavelength 850 nm
  • HEOP
  • Open Resources NA
  • Computing Power NA
  • Open Capability NA
  • Deep Learning Structure NA
  • Programming Language NA
  • Vídeo
  • Main stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
  • Compresión de video Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
  • Vídeo bitrate 32 Kbps to 16 Mbps
  • Tipo H.264 Baseline Profile,Main Profile,High Profile
  • Tipo H.265 Main Profile
  • Bit Rate Control CBR,VBR
  • Codificación de video escalable (SVC) H.264 and H.265 encoding
  • Región de interés (ROI) 5 fixed regions for main stream and sub-stream
  • Recorte objetivo Yes
  • e-PTZ NA
  • Audio
  • Compresión de audio G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Tipo de audio Mono sound
  • Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Filtro de ruido ambiental Yes
  • Red
  • Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
  • Vista en vivo simultánea Up to 6 channels
  • API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
  • Seguridad Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Almacenamiento en red NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Cliente iVMS-4200,Hik-Connect,Hik-Central
  • Navegador web Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Imagen
  • Interruptor de parámetros de imagen Yes
  • Configuración de imagen Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Interruptor día/noche Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • Mejora de la imagen BLC,HLC,3D DNR,Defog
  • SNR ≥ 52 dB
  • Máscara de privacidad 4 programmable polygon privacy masks
  • Interfaz
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Audio 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Micrófono incorporado Yes
  • Alarma 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
  • Reset Key Yes
  • Salida de alimentación 12 VDC, max. 100 mA
  • Evento
  • Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Evento inteligente scene change detection,audio exception detection, unattended baggage detection,object removal detection
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Deep Learning Function
  • Captura de la cara Yes
  • Conteo de personas NA
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
  • General
  • alimentación 12 VDC ± 25%, 0.9 A, max. 10.8 W,two-core terminal block, 24 VAC ± 20%, 0.75 A, max. 10.8 W, PoE: IEEE 802.3af, Class 3, max. 12.9 W
  • Material Metal
  • Dimensión Ø162 mm × 141.8 mm (Ø6.4" × 5.6")
  • Dimensión del paquete 251 mm × 215 mm × 189 mm (9.9" × 8.5" × 7.4")
  • Approx. 1420 g (3.1 lb.)
  • Con peso del paquete Approx. 2058 g (4.5 lb.)
  • Condiciones de almacenaje -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Función general Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
  • Idioma 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Calentador Yes
  • Certificaciones
  • EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
  • Seguridad UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
  • Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protección IP67: IEC 60529-2013,IK10: IEC 62262:2002
  • Protección anticorrosiva -Y: NEMA 4X (NEMA 250-2018)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Cámara
Sensor de imagen
1/1.8" Progressive Scan CMOS
Max. Resolución
3840 × 2160
Iluminación mínima
Color: 0.004 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Tiempo de obturación
1/3 s to 1/100,000 s
Día y Noche
IR cut filter
Ajuste de ángulo
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lente
Focal Length & FOV
2.8 to 12 mm: horizontal FOV 112° to 41°, vertical FOV 58° to 23°, diagonal FOV 137° to 47° 8 to 32 mm: horizontal FOV 41.8° to 15°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.7° to 17.1°
Lente
Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Montura del lente
Integrated
Iris Type
P-iris
Apertura
2.8 to 12 mm: F1.4; 8 to 32 mm: F1.7
Enfoque
Auto,Semi-auto,Manual
Depth of Field
2.8 to 12 mm: 1.8 m to ∞ 8 to 32 mm: 9 m to ∞
DORI
DORI
2.8 to 12 mm: D: 87 to 216 m, O: 34.5 to 85 m, R: 17.4 to 43.2 m, I: 8.7 to 21.6 m 8 to 32 mm: D: 218 to 580 m, O: 86.5 to 230.2 m, R: 43.6 to116 m, I: 21.8 to 58 m
Iluminador
Rango de luz suplementaria
2.8 to 12 mm: up to 40 m; 8 to 32 mm: up to 50 m
Tipo de luz suplementaria
IR
Luz de suplemento inteligente
Yes
IR Wavelength
850 nm
HEOP
Open Resources
Memory: 40 MB, Smart RAM: 350 MB, eMMC: 2 GB
Computing Power
1.5 TOPS
Open Capability
HEOP 2.0 OpendevSDK
Deep Learning Structure
Caffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
Programming Language
C,C++
Vídeo
Main stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Fourth Stream
50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
Compresión de video
Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
Vídeo bitrate
32 Kbps to 16 Mbps
Tipo H.264
Baseline Profile,Main Profile,High Profile
Tipo H.265
Main Profile
Bit Rate Control
CBR,VBR
Codificación de video escalable (SVC)
H.264 and H.265 encoding
Región de interés (ROI)
5 fixed regions for main stream and sub-stream
Recorte objetivo
Yes
e-PTZ
NA
Audio
Compresión de audio
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Tipo de audio
Mono sound
Velocidad de bits de audio
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtro de ruido ambiental
Yes
Red
Protocolos
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, SRTP
Vista en vivo simultánea
Up to 6 channels
API
ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Usuario/operador
Up to 32 users 3 user levels: administrator, operator, and user
Seguridad
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Almacenamiento en red
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Cliente
iVMS-4200,Hik-Connect,Hik-Central
Navegador web
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Imagen
Interruptor de parámetros de imagen
Yes
Configuración de imagen
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/noche
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
120 dB
Mejora de la imagen
BLC,HLC,3D DNR,Defog
SNR
≥ 52 dB
Máscara de privacidad
4 programmable polygon privacy masks
Interfaz
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Micrófono incorporado
Yes
Alarma
2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset Key
Yes
Salida de alimentación
12 VDC, max. 100 mA
Evento
Evento Básico
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Evento inteligente
scene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
Captura de la cara
Yes
Conteo de personas
Yes
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
General
alimentación
12 VDC ± 25%, 0.9 A, max. 10.8 W,two-core terminal block, 24 VAC ± 20%, 0.75 A, max. 10.8 W, PoE: IEEE 802.3af, Class 3, max. 12.9 W
Material
Metal
Dimensión
Ø162 mm × 141.8 mm (Ø6.4" × 5.6")
Dimensión del paquete
251 mm × 215 mm × 189 mm (9.9" × 8.5" × 7.4")
Approx. 1420 g (3.1 lb.)
Con peso del paquete
Approx. 2058 g (4.5 lb.)
Condiciones de almacenaje
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Función general
Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Idioma
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Calentador
Yes
Certificaciones
EMC
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Seguridad
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
Ambiente
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección
IP67: IEC 60529-2013,IK10: IEC 62262:2002
Protección anticorrosiva
-Y: NEMA 4X (NEMA 250-2018)
Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.

Resources

Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.
Firmware_V5.7.18_240924
Network Camera-V5.7.18 240924 Release Note-G5
Aplicado a:
DS-2CD3D86G2T-IZHSUY(2.8-12mm)(C)

Resources

Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.
Firmware_V5.7.18_240924
Network Camera-V5.7.18 240924 Release Note-G5
Aplicado a:
DS-2CD3D86G2T-IZHSU(2.8-12mm)(C)
DS-2CD3D86G2T-IZHSU(8-32mm)(C)

Hikvision.com/es-la/ utiliza cookies estrictamente necesarias y tecnologías relacionadas para permitir que el sitio web funcione. Con su consentimiento, también nos gustaría utilizar cookies para observar y analizar los niveles de tráfico y otras métricas / mostrarle publicidad dirigida / mostrarle publicidad de acuerdo con su ubicación / adaptar el contenido de nuestro sitio web. Para obtener más información sobre las prácticas de cookies, consulte nuestra política de cookies.

Administre sus cookies Aceptar todas
Aceptar todas Administre sus cookies
Ventas
Soporte Técnico
Servicio en Línea
Donde comprar
Contáctenos
Hik-Partner Pro close
Hik-Partner Pro
Tu herramienta aliada Lee más
Hik-Partner Pro
Scan and download the app
Descarga
Hik-Partner Pro
Hik-Partner Pro

Get a better browsing experience

You are using a web browser we don’t support. Please try one of the following options to have a better experience of our web content.
