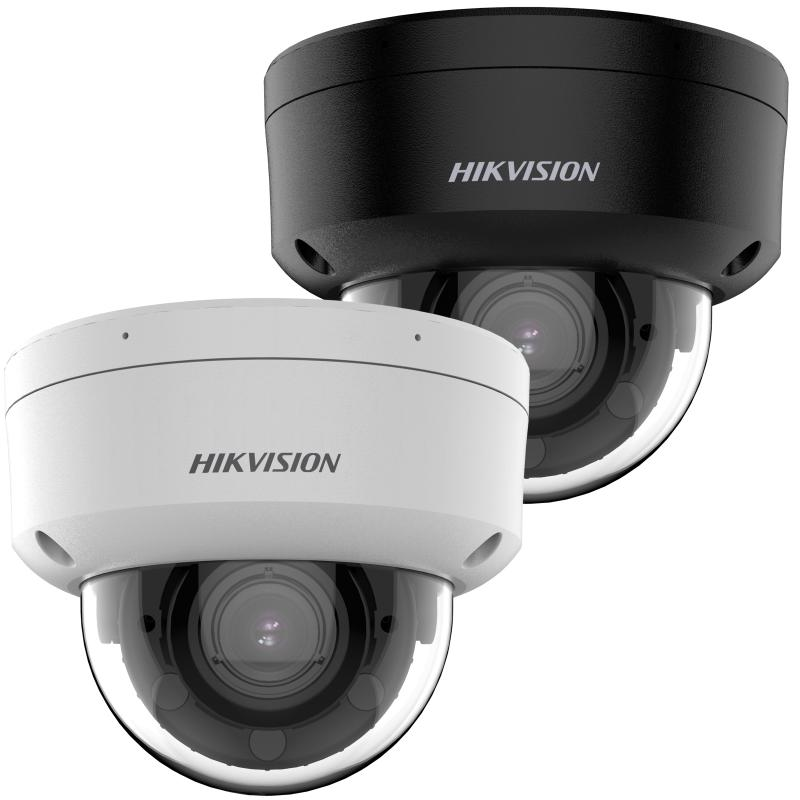

2 MP AcuSense Motorized Varifocal Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Motorized varifocal lens for easy installation and monitoring
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal-resistant (IK10)
View Less
View more

Modelos disponibles:

DS-2CD3723G2-IZS(2.7-13.5mm)
Especificación
  • Cámara
  • Sensor de imagen 1/2.8" Progressive Scan CMOS
  • Max. Resolución 1920 × 1080
  • Iluminación mínima Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
  • Tiempo de obturación 1/3 s to 1/100,000 s
  • Día y Noche IR cut filter
  • Ajuste de ángulo Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lente
  • Lente Varifocal lens, motorized lens, 2.7 to 13.5 mm
  • Focal Length & FOV 2.7 to 13.5 mm, horizontal FOV 107° to 32°, vertical FOV 56° to 18°, diagonal FOV 128° to 37°
  • Montura del lente Ø14
  • Iris Type Auto-iris
  • Apertura F1.6
  • DORI
  • DORI 2.7 to 13.5 mm: D: 44.1 m to 137.9 m, O: 17.5 m to 54.7 m, R: 8.8 m to 27.5 m, I: 4.4 m to 13.8 m
  • Iluminador
  • Rango de luz suplementaria Up to 40 m
  • Tipo de luz suplementaria IR
  • Luz de suplemento inteligente Yes
  • IR Wavelength 850 nm
  • Vídeo
  • Main stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
  • Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Compresión de video Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Vídeo bitrate 32 Kbps to 8 Mbps
  • Tipo H.264 Baseline Profile/Main Profile/High Profile
  • Tipo H.265 Main Profile
  • Bit Rate Control CBR/VBR
  • Codificación de video escalable (SVC) H.264 and H.265 encoding
  • Región de interés (ROI) 5 fixed regions for main stream and sub-stream
  • Recorte objetivo Yes
  • Audio
  • Compresión de audio G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Filtro de ruido ambiental Yes
  • Red
  • Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Vista en vivo simultánea Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
  • Usuario/operador Up to 32 users. 3 user levels: administrator, operator and user
  • Seguridad Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Almacenamiento en red NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Cliente iVMS-4200, Hik-Connect, Hik-Central
  • Navegador web Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Imagen
  • Interruptor de parámetros de imagen Yes
  • Configuración de imagen Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interruptor día/noche Day, Night, Auto, Schedule
  • Wide Dynamic Range (WDR) 120 dB
  • SNR ≥ 52 dB
  • Mejora de la imagen BLC, HLC, 3D DNR
  • Interfaz
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Audio 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarma 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
  • Reset Key Yes
  • Evento
  • Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
  • Evento inteligente Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
  • Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output
  • General
  • alimentación 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
  • Material Upper cover and base: metal Bubble: plastic
  • Dimensión Ø153.3 mm × 111.6 mm (Ø6" × 4.4")
  • Dimensión del paquete 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8")
  • Approx. 890 g (2 lb.)
  • Con peso del paquete Approx. 1480 g (3.3 lb.)
  • Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Función general Anti-banding, heartbeat, password reset via email, pixel counter
  • Idioma 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Certificaciones
  • EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • Seguridad UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • Ambiente CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • Protección IP67 (IEC 60529-2013); IK10 (IEC 62262:2002)

Especificación

Firmware

Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.
