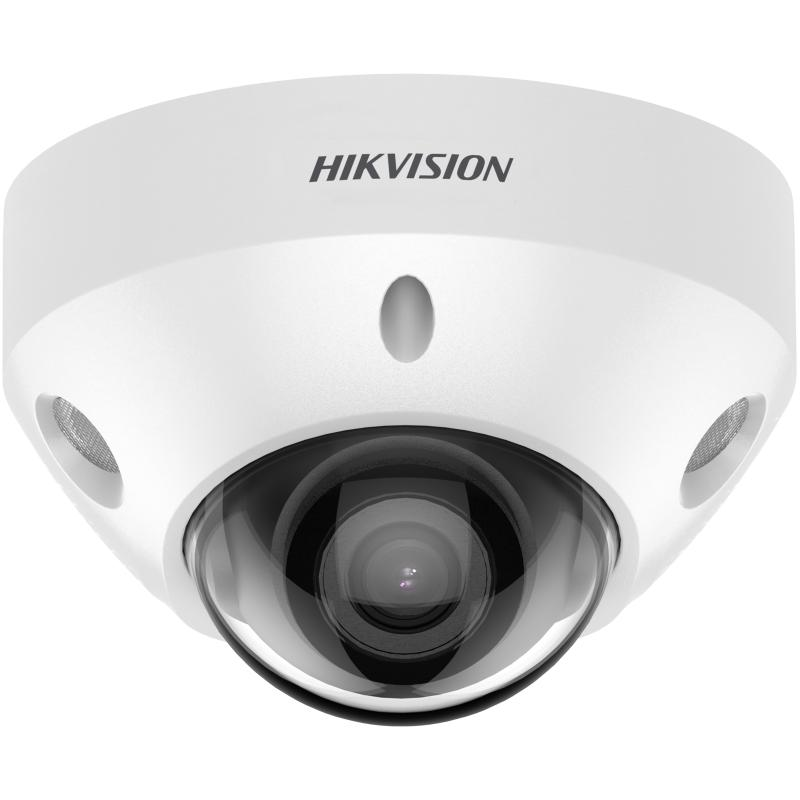

4 MP ColorVu Fixed Mini Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Efficient H.265+ compression technology
  • 24/7 colorful imaging
  • Focus on human and vehicle classification based on deep learning
  • Audio and alarm interface available
  • Water and dust resistant (IP67) and vandal resistant (IK08)
View Less
View more

Modelos disponibles:

DS-2CD3547G2-LS(2.8mm)(C)
DS-2CD3547G2-LS(4mm)(C)

Especificación

  • Cámara
  • Sensor de imagen1/1.8″ Progressive Scan CMOS
  • Max. Resolución2688 × 1520
  • Iluminación mínimaColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
  • Tiempo de obturación1/3 s to 1/100,000 s
  • Día y Noche24/7 color imaging
  • Ajuste de ánguloPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
  • Lente
  • LenteFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 47°, diagonal FOV 115°
  • Montura del lenteM16
  • Iris TypeFixed
  • AperturaF1.0
  • Depth of Field2.8 mm: 2.3 m to ∞ 4 mm: 3.2 m to ∞
  • DORI
  • DORI2.8 mm: D: 58 m O: 23 m R: 11 m I: 6 m 4 mm: D: 77 m O: 30 m R: 16 m I: 8 m
  • Iluminador
  • Tipo de luz suplementariaWhite Light
  • Rango de luz suplementariaUp to 30 m
  • Luz de suplemento inteligenteYes
  • Vídeo
  • Main stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
  • Compresión de videoMain stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • Bit Rate ControlCBR/VBR
  • Codificación de video escalable (SVC)H.265 and H.264 encoding
  • Región de interés (ROI)5 fixed regions for main stream and sub-stream
  • Recorte objetivoYes
  • Audio
  • Tipo de audioMono sound
  • Filtro de ruido ambientalYes
  • Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Velocidad de bits de audio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Red
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
  • Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
  • SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClienteiVMS-4200, Hik-Connect, Hik-Central
  • Navegador webPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Imagen
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Máscara de privacidad4 programmable polygon privacy masks
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, HLC, 3D DNR
  • Interruptor de parámetros de imagenYes
  • Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Micrófono incorporadoYes
  • Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarma-LS: 1 input, 1 output (max. 12 VDC, 20 mA)
  • Reset KeyYes
  • Salida de alimentación12 VDC, max. 100 mA
  • Evento
  • Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Evento inteligenteUnattended baggage detection, object removal detection, scene change detection, audio exception detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
  • Deep Learning Function
  • Captura de la caraYes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
  • General
  • alimentación12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
  • MaterialBase: aluminum, cover: plastic
  • DimensiónØ113.6 mm × 72.6 mm (Ø4.5" × 2.9")
  • Dimensión del paquete134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • Approx. 400 g (0.9 lb.)
  • Con peso del paqueteApprox. 635 g (1.4 lb.)
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Función generalHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
  • Certificaciones
  • EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
  • SeguridadUL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) LOA (IEC/EN 60950-1) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
  • AmbienteCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
  • ProtecciónIP67: IEC 60529-2013,IK08: IEC 62262:2002

Especificación

Especificación
Cámara
  • Sensor de imagen1/1.8″ Progressive Scan CMOS
  • Max. Resolución2688 × 1520
  • Iluminación mínimaColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
  • Tiempo de obturación1/3 s to 1/100,000 s
  • Día y Noche24/7 color imaging
  • Ajuste de ánguloPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
Lente
  • LenteFixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 47°, diagonal FOV 115°
  • Montura del lenteM16
  • Iris TypeFixed
  • AperturaF1.0
  • Depth of Field2.8 mm: 2.3 m to ∞ 4 mm: 3.2 m to ∞
DORI
  • DORI2.8 mm: D: 58 m O: 23 m R: 11 m I: 6 m 4 mm: D: 77 m O: 30 m R: 16 m I: 8 m
Iluminador
  • Tipo de luz suplementariaWhite Light
  • Rango de luz suplementariaUp to 30 m
  • Luz de suplemento inteligenteYes
Vídeo
  • Main stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
  • Compresión de videoMain stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • Bit Rate ControlCBR/VBR
  • Codificación de video escalable (SVC)H.265 and H.264 encoding
  • Región de interés (ROI)5 fixed regions for main stream and sub-stream
  • Recorte objetivoYes
Audio
  • Tipo de audioMono sound
  • Filtro de ruido ambientalYes
  • Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Velocidad de bits de audio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Red
  • Vista en vivo simultáneaUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, WebSocket, WebSockets
  • Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
  • SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClienteiVMS-4200, Hik-Connect, Hik-Central
  • Navegador webPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Imagen
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Máscara de privacidad4 programmable polygon privacy masks
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, HLC, 3D DNR
  • Interruptor de parámetros de imagenYes
  • Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Micrófono incorporadoYes
  • Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarma-LS: 1 input, 1 output (max. 12 VDC, 20 mA)
  • Reset KeyYes
  • Salida de alimentación12 VDC, max. 100 mA
Evento
  • Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Evento inteligenteUnattended baggage detection, object removal detection, scene change detection, audio exception detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Deep Learning Function
  • Captura de la caraYes
  • Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
  • alimentación12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
  • MaterialBase: aluminum, cover: plastic
  • DimensiónØ113.6 mm × 72.6 mm (Ø4.5" × 2.9")
  • Dimensión del paquete134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
  • Approx. 400 g (0.9 lb.)
  • Con peso del paqueteApprox. 635 g (1.4 lb.)
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Función generalHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Certificaciones
  • EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
  • SeguridadUL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) LOA (IEC/EN 60950-1) BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005)
  • AmbienteCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
  • ProtecciónIP67: IEC 60529-2013,IK08: IEC 62262:2002

Resources

Firmware

Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.

Firmware

Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.
Aplicado a:
DS-2CD3547G2-LS(2.8mm)(C)
DS-2CD3547G2-LS(4mm)(C)
