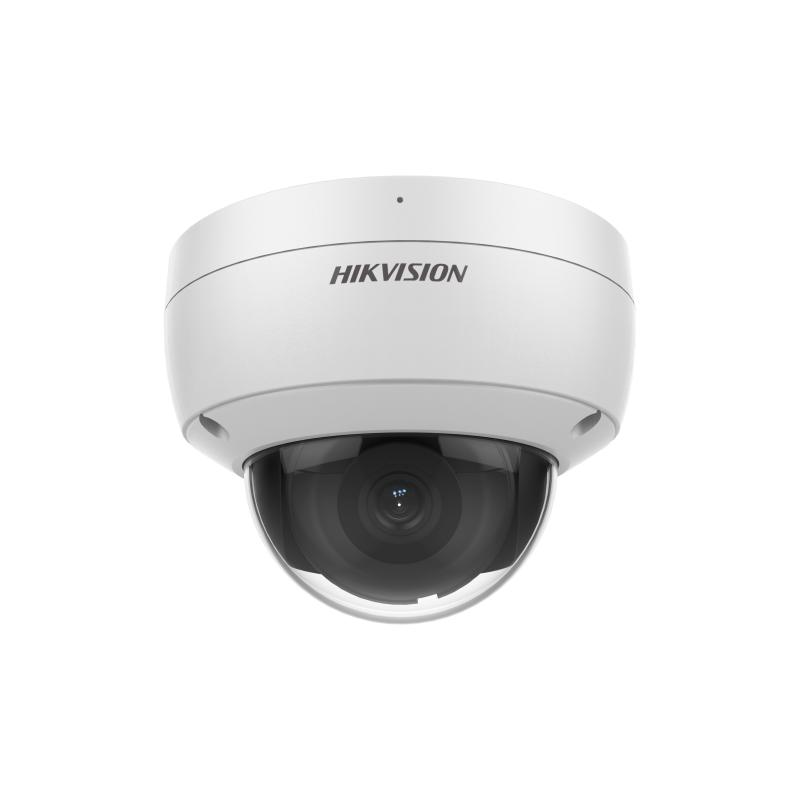

5 MP AcuSense Fixed Dome Network Camera

High quality imaging with 5 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Focus on human and vehicle targets classification based on deep learning
Advanced streaming technology that enables smooth live view and data self-correcting in poor network
Water and dust resistant (IP67) and vandal-resistant (IK10)

View Less

DS-2CD3156G2-ISU(C)^EOL

DS-2CD3156G2-IS(C)

Ficha Técnica

Modelos disponibles:

DS-2CD3156G2-ISU(2.8mm)(C)

DS-2CD3156G2-ISU(4mm)(C)

DS-2CD3156G2-ISU(6mm)(C)

Modelos disponibles:

DS-2CD3156G2-IS(2.8mm)(C)

DS-2CD3156G2-IS(6mm)(C)

DS-2CD3156G2-IS(4mm)(C)

DS-2CD3156G2-IS(U)

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen 1/2.7" Progressive Scan CMOS
Max. Resolución 2592 × 1944
Iluminación mínima Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Tiempo de obturación 1/3 s to 1/100,000 s
Día y Noche IR cut filter
Ajuste de ángulo Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lente
Lente Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 98°, vertical FOV 72°, diagonal FOV 131° 4 mm, horizontal FOV 80°, vertical FOV 58°, diagonal FOV 104° 6 mm, horizontal FOV 51°, vertical FOV 37°, diagonal FOV 66°
Montura del lente M12
Iris Type Fixed
Apertura F1.4

DORI
DORI 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m

Iluminador
Tipo de luz suplementaria IR
Rango de luz suplementaria Up to 40 m
Luz de suplemento inteligente Yes
IR Wavelength 850 nm

Vídeo
Main stream 50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Fourth Stream 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.
Compresión de video Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.
Vídeo bitrate 32 Kbps to 16 Mbps
Tipo H.264 Baseline Profile/Main Profile/High Profile
Tipo H.265 Main Profile
Bit Rate Control CBR/VBR
Codificación de video escalable (SVC) H.264 and H.265 encoding
Región de interés (ROI) 5 fixed regions for main stream and sub-stream
Recorte objetivo Yes

Audio
Compresión de audio G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtro de ruido ambiental Yes

Red
Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP
Vista en vivo simultánea Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Usuario/operador Up to 32 users. 3 user levels: administrator, operator and user
Seguridad Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Almacenamiento en red MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Cliente iVMS-4200, Hik-Connect, Hik-Central
Navegador web Plug-in required live view: IE 10+ Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen
Interruptor de parámetros de imagen Yes
Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interruptor día/noche Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Mejora de la imagen BLC, HLC, 3D DNR

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Micrófono incorporado -U: Yes
Audio 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 2.5 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Alarma 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key Yes
Salida de alimentación 12 VDC, max. 100 mA (supported by all power supply types)

Evento
Evento Básico Motion detection (human and vehicle targets classification), video tampering alarm, exception
Evento inteligente Unattended baggage detection, object removal detection, scene change detection, audio exception detection
Linkage Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Deep Learning Function
Captura de la cara Yes
Protección perimetral Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General
alimentación 12 VDC ± 25%, 0.6 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W
Dimensión Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")
Dimensión del paquete 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Approx. 580 g (1.3 lb.)
Con peso del paquete Approx. 820 g (1.8 lb.)
Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Función general Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Idioma del cliente web 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones
EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)
Seguridad UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)
Ambiente CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protección IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

Cámara

Sensor de imagen

1/2.7" Progressive Scan CMOS

Max. Resolución

2592 × 1944

Iluminación mínima

Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR

Tiempo de obturación

1/3 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lente

Fixed focal lens, 2.8, 4, and 6 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 98°, vertical FOV 72°, diagonal FOV 131° 4 mm, horizontal FOV 80°, vertical FOV 58°, diagonal FOV 104° 6 mm, horizontal FOV 51°, vertical FOV 37°, diagonal FOV 66°

Montura del lente

M12

Iris Type

Fixed

Apertura

F1.4

DORI

2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

Up to 40 m

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 25 fps (2592 × 1944, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2592 × 1944) 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

Fourth Stream

50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) *Fourth stream is supported under certain settings.

Compresión de video

Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 Fourth stream: H.265/H.264/MJPEG *Third stream and fourth stream are supported under certain settings.

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR/VBR

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

5 fixed regions for main stream and sub-stream

Recorte objetivo

Yes

Audio

Compresión de audio

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC

Velocidad de bits de audio

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator and user

Seguridad

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Almacenamiento en red

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE 10+ Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interruptor día/noche

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Mejora de la imagen

BLC, HLC, 3D DNR

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Micrófono incorporado

-U: Yes

Audio

1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 2.5 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

Alarma

1 input, 1 output (max. 12 VDC, 30 mA)

Reset Key

Yes

Salida de alimentación

12 VDC, max. 100 mA (supported by all power supply types)

Evento

Evento Básico

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Evento inteligente

Unattended baggage detection, object removal detection, scene change detection, audio exception detection

Linkage

Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Deep Learning Function

Captura de la cara

Yes

Protección perimetral

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

General

alimentación

12 VDC ± 25%, 0.6 A, max. 7 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Type 1, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 8.5 W

Dimensión

Ø121.4 mm × 92.2 mm (Ø4.8" × 3.6")

Dimensión del paquete

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Approx. 580 g (1.3 lb.)

Con peso del paquete

Approx. 820 g (1.8 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Función general

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Idioma del cliente web

33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones

EMC

FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015)

Seguridad

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2006+A2:2013, IEC 62368-1:2014+A11:2017); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1)

Ambiente

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protección

IP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
