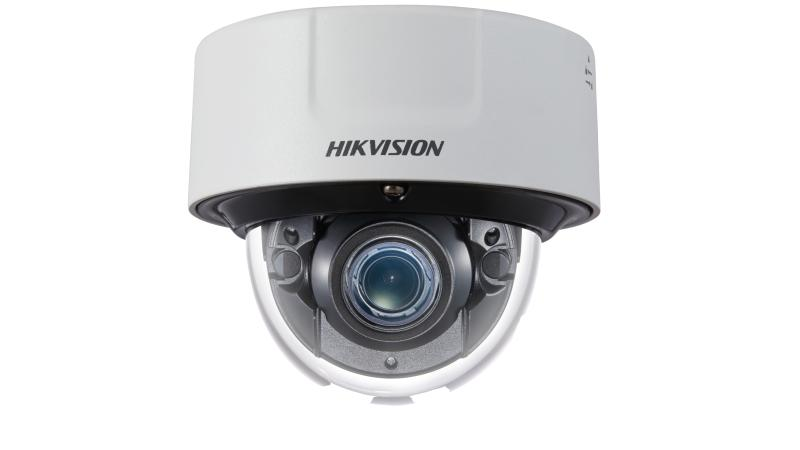

12MP Indoor Moto Varifocal Dome Network Camera

High quality imaging with 12 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor networks
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection
Vandal proof (IK10).

View Less

Ficha Técnica

Modelos disponibles:

DS-2CD51C5G0-IZS(2.8-12mm)(B)

DS-2CD51C5G0-IZS

EOL

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen1/1.8″ Progressive Scan CMOS
Iluminación mínimaColor: 0.008 Lux @ (F1.2, AGC ON),0 Lux with IR
Velocidad de obturación1 s to 1/100,000 s
Obturador lentoYes
Wide dynamic rangeDigital WDR
Día y NocheIR Cut Filter
Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lente
EnfoqueAuto, semi-auto, manual
LenteMotorized lens, 2.8 to 12 mm
FOVHorizontal FOV 101° to 36.1°, vertical FOV 72° to 27.2°, diagonal FOV 130° to 45.2°
AperturaF1.2 to 2.5
Montura del lenteIntegrated
Auto-IrisP-iris

Iluminador
Rango IRUp to 30 m
Longitud de onda850 nm

Vídeo
Max. Resolución4000 × 3000
Main stream50Hz: 20fps(4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720),60Hz: 20fps(4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720)
Video Stream5 defined streams and up to 5 custom stream
Sub-stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps(1920 × 1080, 1280 x 720, 704 x 576, 640 x 480),60Hz: 30fps(1920 × 1080, 1280 ×720, 704 x 480, 640 x 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Stream personalizado50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480),Up to five custom streams are supported
Compresión de videoMain stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
H.264 +Main stream support
H.265 +Main stream support
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream

Audio
Filtro de ruido ambientalYes
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/MP3
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)

Red
Vista en vivo simultáneaUp to 20 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Almacenamiento en redmicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador webPlug-in required live view: IE8+ ;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ ;Local service: Chrome57.0+，Firefox52.0+

Imagen
Interruptor día/nocheAuto/Schedule/Day/Night/Triggered by Alarm In
Recorte objetivoYes
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Mejora de la imagenBLC, HLC, 3D DNR, Defog, EIS, distortion correction
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
SNR≥52dB

Interfaz
Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarma1 input, 1 output (max. 24 VDC/VAC, 1A)
Salida de Vídeo1Vp-p composite output (75 Ω/CVBS), only for adjustment
Almacenamiento a bordoBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
Restablecimiento de hardwareReset via reset button on camera body, web browser and client software
Interfaz de comunicación1 RJ45 10M/100M/1000M Ethernet port ;1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Salida de alimentación12 VDC, max. 200 mA
Estilo de interfazConnector panel

Evento
Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligenteLine crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, audio exception detection, defocus detection
ContandoCounting

General
Método de enlaceTrigger recording：memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Versión del firmware5.6.0
Idioma del cliente web32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función generalAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Fuente de alimentación12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3af, class 3)
Consumo de energía y corrienteWith extra load: 12 VDC, 0.8 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 ;Without extra load: 12 VDC, 0.6 A, max. 8.0 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 ;"with extra load" means that an extra device is connected to and powered by the camera.
Dimensión de la cámaraCamera: Φ141 × 123 mm (Φ5.5″ × 4.8″) ;With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
Peso de la cámaraCamera: approx. 900 g (1.98 lb.) ;With Package: approx. 1250 g (2.76 lb.)

Certificaciones
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SeguridadUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Ambiente2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtecciónIngress protection: IK10 (IEC 62262:2002)

Cámara

Sensor de imagen

1/1.8″ Progressive Scan CMOS

Iluminación mínima

Color: 0.008 Lux @ (F1.2, AGC ON),0 Lux with IR

Velocidad de obturación

1 s to 1/100,000 s

Obturador lento

Yes

Wide dynamic range

Digital WDR

Día y Noche

IR Cut Filter

Ajuste de ángulo

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lente

Enfoque

Auto, semi-auto, manual

Lente

Motorized lens, 2.8 to 12 mm

FOV

Horizontal FOV 101° to 36.1°, vertical FOV 72° to 27.2°, diagonal FOV 130° to 45.2°

Apertura

F1.2 to 2.5

Montura del lente

Integrated

Auto-Iris

P-iris

Iluminador

Rango IR

Up to 30 m

Longitud de onda

850 nm

Vídeo

Max. Resolución

4000 × 3000

Main stream

50Hz: 20fps(4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720),60Hz: 20fps(4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720)

Video Stream

5 defined streams and up to 5 custom stream

Sub-stream

50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)

Third Stream

50Hz: 25fps(1920 × 1080, 1280 x 720, 704 x 576, 640 x 480),60Hz: 30fps(1920 × 1080, 1280 ×720, 704 x 480, 640 x 480)

Fourth Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)

Stream personalizado

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480),Up to five custom streams are supported

Compresión de video

Main stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

H.264 +

Main stream support

H.265 +

Main stream support

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream

Audio

Filtro de ruido ambiental

Yes

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM/MP3

Velocidad de bits de audio

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)

Red

Vista en vivo simultánea

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Smooth Streaming

Yes

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator and user

Seguridad

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1

Almacenamiento en red

microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE8+ ;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ ;Local service: Chrome57.0+，Firefox52.0+

Imagen

Interruptor día/noche

Auto/Schedule/Day/Night/Triggered by Alarm In

Recorte objetivo

Yes

Superposición de imagen

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Mejora de la imagen

BLC, HLC, 3D DNR, Defog, EIS, distortion correction

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

SNR

≥52dB

Interfaz

Audio

1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound

Alarma

1 input, 1 output (max. 24 VDC/VAC, 1A)

Salida de Vídeo

1Vp-p composite output (75 Ω/CVBS), only for adjustment

Almacenamiento a bordo

Built-in microSD/SDHC/SDXC slot, up to 256 GB

Restablecimiento de hardware

Reset via reset button on camera body, web browser and client software

Interfaz de comunicación

1 RJ45 10M/100M/1000M Ethernet port ;1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Salida de alimentación

12 VDC, max. 200 mA

Estilo de interfaz

Connector panel

Evento

Evento Básico

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Evento inteligente

Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, audio exception detection, defocus detection

Contando

Counting

General

Método de enlace

Trigger recording：memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email

Versión del firmware

5.6.0

Idioma del cliente web

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Función general

Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Fuente de alimentación

12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3af, class 3)

Consumo de energía y corriente

With extra load: 12 VDC, 0.8 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 ;Without extra load: 12 VDC, 0.6 A, max. 8.0 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 ;"with extra load" means that an extra device is connected to and powered by the camera.

Dimensión de la cámara

Camera: Φ141 × 123 mm (Φ5.5″ × 4.8″) ;With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)

Peso de la cámara

Camera: approx. 900 g (1.98 lb.) ;With Package: approx. 1250 g (2.76 lb.)

Certificaciones

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Seguridad

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Ambiente

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protección

Ingress protection: IK10 (IEC 62262:2002)

Cámara

Sensor de imagen1/1.8″ Progressive Scan CMOS
Iluminación mínimaColor: 0.008 Lux @ (F1.2, AGC ON),0 Lux with IR
Velocidad de obturación1 s to 1/100,000 s
Obturador lentoYes
Wide dynamic rangeDigital WDR
Día y NocheIR Cut Filter
Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lente

EnfoqueAuto, semi-auto, manual
LenteMotorized lens, 2.8 to 12 mm
FOVHorizontal FOV 101° to 36.1°, vertical FOV 72° to 27.2°, diagonal FOV 130° to 45.2°
AperturaF1.2 to 2.5
Montura del lenteIntegrated
Auto-IrisP-iris

Iluminador

Rango IRUp to 30 m
Longitud de onda850 nm

Vídeo

Max. Resolución4000 × 3000
Main stream50Hz: 20fps(4000 × 3000), 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720),60Hz: 20fps(4000 × 3000), 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 x 720)
Video Stream5 defined streams and up to 5 custom stream
Sub-stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps(1920 × 1080, 1280 x 720, 704 x 576, 640 x 480),60Hz: 30fps(1920 × 1080, 1280 ×720, 704 x 480, 640 x 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Stream personalizado50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480),Up to five custom streams are supported
Compresión de videoMain stream: H.265/H.264/H.265+/H.264+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
H.264 +Main stream support
H.265 +Main stream support
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions for each stream

Audio

Filtro de ruido ambientalYes
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/MP3
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/ 8-320Kbps(MP3)

Red

Vista en vivo simultáneaUp to 20 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Smooth StreamingYes
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Almacenamiento en redmicroSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador webPlug-in required live view: IE8+ ;Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ ;Local service: Chrome57.0+，Firefox52.0+

Imagen

Interruptor día/nocheAuto/Schedule/Day/Night/Triggered by Alarm In
Recorte objetivoYes
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Mejora de la imagenBLC, HLC, 3D DNR, Defog, EIS, distortion correction
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
SNR≥52dB

Interfaz

Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarma1 input, 1 output (max. 24 VDC/VAC, 1A)
Salida de Vídeo1Vp-p composite output (75 Ω/CVBS), only for adjustment
Almacenamiento a bordoBuilt-in microSD/SDHC/SDXC slot, up to 256 GB
Restablecimiento de hardwareReset via reset button on camera body, web browser and client software
Interfaz de comunicación1 RJ45 10M/100M/1000M Ethernet port ;1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Salida de alimentación12 VDC, max. 200 mA
Estilo de interfazConnector panel

Evento

Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligenteLine crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, audio exception detection, defocus detection
ContandoCounting

General

Método de enlaceTrigger recording：memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email
Versión del firmware5.6.0
Idioma del cliente web32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función generalAnti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter, HTTP listening
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Fuente de alimentación12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal block; PoE (802.3af, class 3)
Consumo de energía y corrienteWith extra load: 12 VDC, 0.8 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 ;Without extra load: 12 VDC, 0.6 A, max. 8.0 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.3 A, class 3 ;"with extra load" means that an extra device is connected to and powered by the camera.
Dimensión de la cámaraCamera: Φ141 × 123 mm (Φ5.5″ × 4.8″) ;With package: 244 × 174 × 173 mm (9.6″ × 6.9″ × 6.8″)
Peso de la cámaraCamera: approx. 900 g (1.98 lb.) ;With Package: approx. 1250 g (2.76 lb.)

Certificaciones

EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SeguridadUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Ambiente2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtecciónIngress protection: IK10 (IEC 62262:2002)
