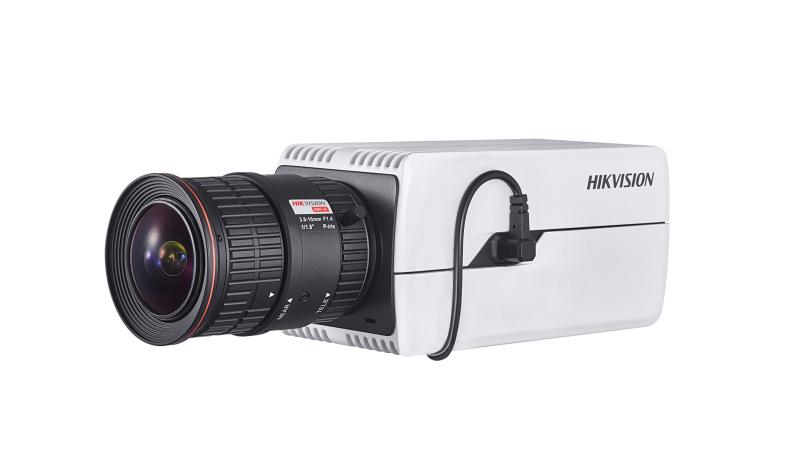

4K Box Network Camera

High quality imaging with 8 MP resolution
Clear imaging against strong back light due to true WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
Advanced streaming technology enables smooth live view and data self-correction in poor networks
5 streams and up to 5 custom streams to meet a wide variety of applications
6 behavior analyses, 3 exception detection, and face detection.

View Less

Modelos disponibles:

DS-2CD5085G0

DS-2CD5085G0-AP

DS-2CD5085G0-(AP)

EOL

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/1.8″ Progressive Scan CMOS
Iluminación mínimaColor: 0.007 Lux @ (F1.2, AGC ON)
Velocidad de obturación1 s - 1/100,000 s
Obturador lentoYes
Wide dynamic range120dB
Día y NocheIR Cut Filter

Lente
EnfoqueWith –A model: support ABF (auto back focus)
Montura del lenteCS mount
Auto-IrisP-iris

Vídeo
Max. Resolución3840 × 2160
Main stream50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Stream personalizado50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480),Up to 5 custom streams are supported
Compresión de videoMain stream: H.265/H.264/H.264+/H.265+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
H.264 +Main stream supports
H.265 +Main stream supports
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking

Audio
Filtro de ruido ambientalYes
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Red
Vista en vivo simultáneaUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Almacenamiento en redSupport microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
ClienteiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
Navegador webPlug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
Activador de alarmaMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Imagen
Interruptor día/nocheDay/Night/Auto/Schedule/Triggered by Alarm In
Recorte objetivoYes
DNR3D DNR
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Mejora de la imagenBLC, HLC, defog, 3D DNR, EIS
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interfaz
Audio1 input (line in), 1 output (line out), mono
Alarma2 inputs, 2 outputs (up to 24 VDC, 1A or 110 VAC, 500 mA)
Salida de VídeoCVBS analog output (4CIF resolution)，1Vp-p composite output (75 Ω/CVBS)
Almacenamiento a bordoBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Restablecimiento de hardwareYes
Interfaz de comunicación1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Salida de alimentación12 VDC, max. 200mA (supported by 12 VDC, 24 VAC and PoE)

Evento
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
ContandoCounting
Detección de rostroYes
Detección de excepcionesScene change detection, audio exception detection, defocus detection

General
Versión del firmware5.5.80
Función generalOne-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Fuente de alimentaciónRecommended DC input 12 V, voltage range of 10 to 48 VDC allowed; recommended AC input 24 V, voltage range of 15 to 36 VAC allowed; two-core terminal block,PoE (802.3af, class 3)
Consumo de energía y corrienteWith extra load: 12 VDC, 0.8 A, max. 10 W; 24 VAC, 0.7 A, max. 10 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3,Without extra load: 12 VDC, 0.6 A, max. 7 W; 24 VAC, 0.55 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3,“with extra load” means that an extra device is connected to and powered by the camera.
Dimensión de la cámara142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″),With package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)
Peso de la cámara-AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with package,Non-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package

Certificaciones
EMCIC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), KC: KN32:2015,KN35:2015, CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013), RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
SeguridadCB: IEC 60950-1, UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014, LOA: SANS IEC60950-1, BIS: IS 13252(Part 1)2010+A1:2013+A2:2015, CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
AmbienteCE: CE-RoHS(RoHS Directive 2011/65/EU, 2012/19/EU), REACH SVHC: Regulation (EC) No 1907/2006

Cámara

Sensor de imagen

1/1.8″ Progressive Scan CMOS

Iluminación mínima

Color: 0.007 Lux @ (F1.2, AGC ON)

Velocidad de obturación

1 s - 1/100,000 s

Obturador lento

Yes

Wide dynamic range

120dB

Día y Noche

IR Cut Filter

Lente

Enfoque

With –A model: support ABF (auto back focus)

Montura del lente

CS mount

Auto-Iris

P-iris

Vídeo

Max. Resolución

3840 × 2160

Main stream

50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream

50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream

50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)

Stream personalizado

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480),Up to 5 custom streams are supported

Compresión de video

Main stream: H.265/H.264/H.264+/H.265+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

H.264 +

Main stream supports

H.265 +

Main stream supports

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking

Audio

Filtro de ruido ambiental

Yes

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM

Velocidad de bits de audio

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Red

Vista en vivo simultánea

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator and user

Seguridad

Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF

Almacenamiento en red

Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR

Cliente

iVMS-4200, Hik-Connect, iVMS-5200, Hik-Central

Navegador web

Plug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+

Activador de alarma

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Imagen

Interruptor día/noche

Day/Night/Auto/Schedule/Triggered by Alarm In

Recorte objetivo

Yes

DNR

3D DNR

Superposición de imagen

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Mejora de la imagen

BLC, HLC, defog, 3D DNR, EIS

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interfaz

Audio

1 input (line in), 1 output (line out), mono

Alarma

2 inputs, 2 outputs (up to 24 VDC, 1A or 110 VAC, 500 mA)

Salida de Vídeo

CVBS analog output (4CIF resolution)，1Vp-p composite output (75 Ω/CVBS)

Almacenamiento a bordo

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Restablecimiento de hardware

Yes

Interfaz de comunicación

1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Salida de alimentación

12 VDC, max. 200mA (supported by 12 VDC, 24 VAC and PoE)

Evento

Evento inteligente

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection

Contando

Counting

Detección de rostro

Yes

Detección de excepciones

Scene change detection, audio exception detection, defocus detection

General

Versión del firmware

5.5.80

Función general

One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Fuente de alimentación

Recommended DC input 12 V, voltage range of 10 to 48 VDC allowed; recommended AC input 24 V, voltage range of 15 to 36 VAC allowed; two-core terminal block,PoE (802.3af, class 3)

Consumo de energía y corriente

With extra load: 12 VDC, 0.8 A, max. 10 W; 24 VAC, 0.7 A, max. 10 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3,Without extra load: 12 VDC, 0.6 A, max. 7 W; 24 VAC, 0.55 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3,“with extra load” means that an extra device is connected to and powered by the camera.

Dimensión de la cámara

142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″),With package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)

Peso de la cámara

-AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with package,Non-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package

Certificaciones

EMC

IC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), KC: KN32:2015,KN35:2015, CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013), RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015

Seguridad

CB: IEC 60950-1, UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014, LOA: SANS IEC60950-1, BIS: IS 13252(Part 1)2010+A1:2013+A2:2015, CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)

Ambiente

CE: CE-RoHS(RoHS Directive 2011/65/EU, 2012/19/EU), REACH SVHC: Regulation (EC) No 1907/2006

Cámara

Sensor de imagen1/1.8″ Progressive Scan CMOS
Iluminación mínimaColor: 0.007 Lux @ (F1.2, AGC ON)
Velocidad de obturación1 s - 1/100,000 s
Obturador lentoYes
Wide dynamic range120dB
Día y NocheIR Cut Filter

Lente

EnfoqueWith –A model: support ABF (auto back focus)
Montura del lenteCS mount
Auto-IrisP-iris

Vídeo

Max. Resolución3840 × 2160
Main stream50Hz: 25fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 30fps (3840 × 2160, 3200 × 1800, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fifth Stream50Hz: 25fps (704 × 576, 640 × 480),60Hz: 30fps (704 × 480, 640 × 480)
Stream personalizado50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480),60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480),Up to 5 custom streams are supported
Compresión de videoMain stream: H.265/H.264/H.264+/H.265+,Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
H.264 +Main stream supports
H.265 +Main stream supports
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking

Audio

Filtro de ruido ambientalYes
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Red

Vista en vivo simultáneaUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
SeguridadPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Almacenamiento en redSupport microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
ClienteiVMS-4200, Hik-Connect, iVMS-5200, Hik-Central
Navegador webPlug-in required live view: IE8-11, Chrome 41-44, Mozilla Firefox30.0-51, Safari8.0+,Plug-in free live view: Chrome 45+, Mozilla Firefox52+
Activador de alarmaMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Imagen

Interruptor día/nocheDay/Night/Auto/Schedule/Triggered by Alarm In
Recorte objetivoYes
DNR3D DNR
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
Mejora de la imagenBLC, HLC, defog, 3D DNR, EIS
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interfaz

Audio1 input (line in), 1 output (line out), mono
Alarma2 inputs, 2 outputs (up to 24 VDC, 1A or 110 VAC, 500 mA)
Salida de VídeoCVBS analog output (4CIF resolution)，1Vp-p composite output (75 Ω/CVBS)
Almacenamiento a bordoBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Restablecimiento de hardwareYes
Interfaz de comunicación1 RJ45 10M/100M/1000M Ethernet port,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Salida de alimentación12 VDC, max. 200mA (supported by 12 VDC, 24 VAC and PoE)

Evento

Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
ContandoCounting
Detección de rostroYes
Detección de excepcionesScene change detection, audio exception detection, defocus detection

General

Versión del firmware5.5.80
Función generalOne-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Fuente de alimentaciónRecommended DC input 12 V, voltage range of 10 to 48 VDC allowed; recommended AC input 24 V, voltage range of 15 to 36 VAC allowed; two-core terminal block,PoE (802.3af, class 3)
Consumo de energía y corrienteWith extra load: 12 VDC, 0.8 A, max. 10 W; 24 VAC, 0.7 A, max. 10 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3,Without extra load: 12 VDC, 0.6 A, max. 7 W; 24 VAC, 0.55 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3,“with extra load” means that an extra device is connected to and powered by the camera.
Dimensión de la cámara142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″),With package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)
Peso de la cámara-AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with package,Non-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package

Certificaciones

EMCIC: IC-VoC(ICES-003 Issue 7:2020), FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B), KC: KN32:2015,KN35:2015, CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013), RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015
SeguridadCB: IEC 60950-1, UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014, LOA: SANS IEC60950-1, BIS: IS 13252(Part 1)2010+A1:2013+A2:2015, CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
AmbienteCE: CE-RoHS(RoHS Directive 2011/65/EU, 2012/19/EU), REACH SVHC: Regulation (EC) No 1907/2006
