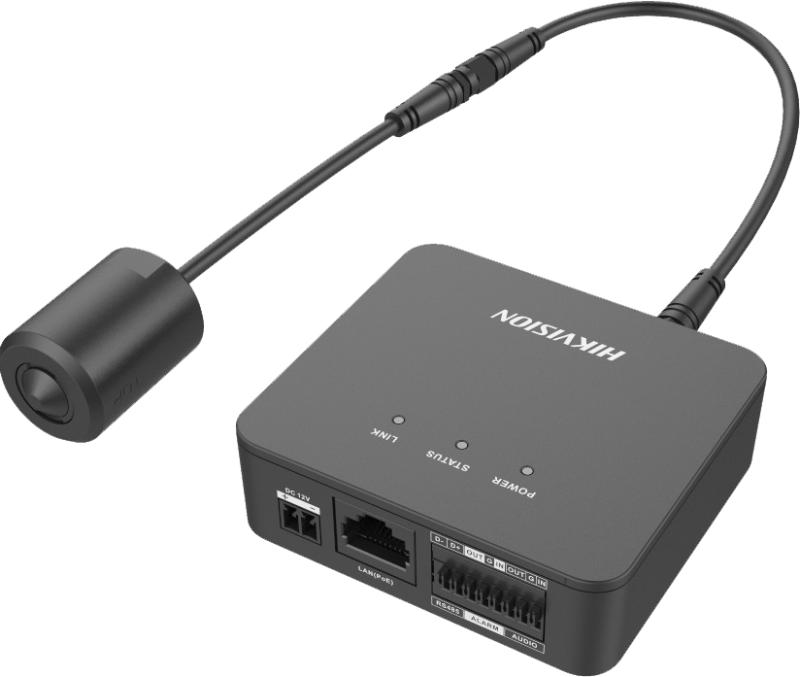

Separated Network Camera

High quality imaging with 2 MP resolution
Efficient H.265 compression technology
Clear imaging against strong back light due to 120 dB true WDR technology

View Less

Modelos disponibles:

DS-2CD6425G0-20(2.8mm)2m

DS-2CD6425G0-10(3.7mm)2m

DS-2CD6425G0-10(3.7mm)8m

DS-2CD6425G0-20(2.8mm)8m

DS-2CD6425G0-20(3.7mm)8m

DS-2CD6425G0-20(3.7mm)2m

DS-2CD6425G0-30(2.8mm)2m

DS-2CD6425G0-30(2.8mm)8m

DS-2CD6425G0-30(4mm)2m

DS-2CD6425G0-30(4mm)8m

DS-2CD6425G0-30(6mm)2m

DS-2CD6425G0-30(6mm)8m

DS-2CD6425G0-L20(2.8mm)2m

DS-2CD6425G0-L20(3.7mm)2m

DS-2CD6425G0-L20(2.8mm)8m

DS-2CD6425G0-L20(3.7mm)8m

DS-2CD6425G0-C1

DS-2CD6425G0-XX ^Discontinued

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/2.8″ Progressive Scan CMOS
Iluminación mínimaColor: 0.005 Lux @(F1.2, AGC ON), 0.014 Lux @(F2.0, AGC ON),B/W: 0.0001 Lux @(F1.2, AGC ON), 0.0003 Lux @(F2.0, AGC ON)
Velocidad de obturación1 s to 1/100,000 s
Obturador lentoSupport
Ajuste de ánguloNot support
DNR3D DNR
WDR120dB
Día y NocheElectronic
Auto-IrisNo

Lente
AperturaL10, L20: F2.5,L30: F2.0
FOVPin-hole: 2.8 mm @ F2.5, horizontal FOV 88.2°, vertical FOV:48.8° 3.7 mm @ F2.5, horizontal FOV 71°, vertical FOV:39.3° M12: 2.8 mm @ F2.0, horizontal FOV 104°, vertical FOV:56.8° 4.0 mm @ F2.0, horizontal FOV 80°, vertical FOV:42.9° 6.0 mm @ F2.0, horizontal FOV 50°, vertical FOV:28.8°
Montura del lenteM12, pin hole
Longitud focal2.8 mm/3.7 mm/4.0 mm/6.0 mm

Audio
Compresión de audioMax. 48kHz
E/S de audioYes

Imagen
Mejora de la imagenBLC, 3D DNR
Recorte objetivoNo
Interruptor día/nocheDay/Night/Auto/Schedule/ Triggered by Alarm In
Superposición de imagenNo
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Sub-stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Max. Resolución1920 × 1080
Main stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240),60Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)

Red
ProtocolosMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
APIv5.5.6
SeguridadTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Vista en vivo simultáneaONVIF (PROFILE S, PROFILE G), ISAPI
Usuario/operadorUp to 6 channels
ClienteUp to 32 users,3 levels: Administrator, Operator and User
Navegador webiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
DetecciónMicro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Versión del firmwareOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
Smart featuresIE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+

Interfaz
Interfaz de comunicaciónBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Alarma1 input (line in), 1 output (line out), mono
Salida de Vídeo1 RJ45 10M/100M Ethernet port,1 VIN port,1 RS-485
Almacenamiento a bordo1 input, 1 output (up to 24 VAC, 1A or 110 VAC, 500mA)
Housing interfaceYes

Compresión estándar
H.264 +Main stream support.
H.265 +Main stream support.
Tipo H.264Baseline Profile/Main Profile/High Profile
Compresión de vídeoMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Tipo H.265Main Profile
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Vídeo bitrate32 Kbps to 16 Mbps
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Tráfico por carretera y detección de vehículos
ExactitudCamera: 87 g (0.19 lbs.),With package: 220 g (0.49 lbs)

Smart Feature-set
Detección de rostroYes
Detección de excepcionesN/A
Análisis de comportamientoLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
Región de interés1 fixed region for main stream and sub stream

General
Fuente de alimentación‘-10 °C to +40 °C (-14 °F to +104 °F), Humidity 5% to 95%(non-condensing)
Camera: 77.1 × 69 × 26 mm (3.04" × 2.72" × 1.02"),With package: 254 × 164 × 130 mm (10" × 6.46" × 5.12")
Consumo de energía12 VDC ± 20%, two-core terminal block, ,PoE: (802.3af, class 2)
accesorioNo
Shipping Weight12 VDC ± 20%, 0.25 A, max. 3 W,PoE: (802.3af, 36V-57V), 0.2A to 0.1A, Max: 3.5W
Limpiador de lenteCamera: Plastic,Lens: Metal

Cámara

Sensor de imagen

1/2.8″ Progressive Scan CMOS

Iluminación mínima

Color: 0.005 Lux @(F1.2, AGC ON), 0.014 Lux @(F2.0, AGC ON),B/W: 0.0001 Lux @(F1.2, AGC ON), 0.0003 Lux @(F2.0, AGC ON)

Velocidad de obturación

1 s to 1/100,000 s

Obturador lento

Support

Ajuste de ángulo

Not support

DNR

3D DNR

WDR

120dB

Día y Noche

Electronic

Auto-Iris

Lente

Apertura

L10, L20: F2.5,L30: F2.0

FOV

Pin-hole: 2.8 mm @ F2.5, horizontal FOV 88.2°, vertical FOV:48.8° 3.7 mm @ F2.5, horizontal FOV 71°, vertical FOV:39.3° M12: 2.8 mm @ F2.0, horizontal FOV 104°, vertical FOV:56.8° 4.0 mm @ F2.0, horizontal FOV 80°, vertical FOV:42.9° 6.0 mm @ F2.0, horizontal FOV 50°, vertical FOV:28.8°

Montura del lente

M12, pin hole

Longitud focal

2.8 mm/3.7 mm/4.0 mm/6.0 mm

Audio

Compresión de audio

Max. 48kHz

E/S de audio

Yes

Imagen

Mejora de la imagen

BLC, 3D DNR

Recorte objetivo

Interruptor día/noche

Day/Night/Auto/Schedule/ Triggered by Alarm In

Superposición de imagen

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Sub-stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Max. Resolución

1920 × 1080

Main stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Third Stream

50Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 640 × 360, 352 × 288, 320 × 240),60Hz: 1fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 640 × 360, 352 × 240, 320 × 240)

Red

Protocolos

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

API

v5.5.6

Seguridad

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Vista en vivo simultánea

ONVIF (PROFILE S, PROFILE G), ISAPI

Usuario/operador

Up to 6 channels

Cliente

Up to 32 users,3 levels: Administrator, Operator and User

Navegador web

iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect

Detección

Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Versión del firmware

One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter

Smart features

IE8+, Chrome31.0-44, Firefox30.0-51, Safari8.0+

Interfaz

Interfaz de comunicación

Built-in micro SD/SDHC/SDXC slot, up to 128 GB

Alarma

1 input (line in), 1 output (line out), mono

Salida de Vídeo

1 RJ45 10M/100M Ethernet port,1 VIN port,1 RS-485

Almacenamiento a bordo

1 input, 1 output (up to 24 VAC, 1A or 110 VAC, 500mA)

Housing interface

Yes

Compresión estándar

H.264 +

Main stream support.

H.265 +

Main stream support.

Tipo H.264

Baseline Profile/Main Profile/High Profile

Compresión de vídeo

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

Tipo H.265

Main Profile

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM

Vídeo bitrate

32 Kbps to 16 Mbps

Velocidad de bits de audio

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Tráfico por carretera y detección de vehículos

Exactitud

Camera: 87 g (0.19 lbs.),With package: 220 g (0.49 lbs)

Smart Feature-set

Detección de rostro

Yes

Detección de excepciones

N/A

Análisis de comportamiento

Line crossing detection, intrusion detection, unattended baggage detection, object removal detection

Región de interés

1 fixed region for main stream and sub stream

General

Fuente de alimentación

‘-10 °C to +40 °C (-14 °F to +104 °F), Humidity 5% to 95%(non-condensing)

Camera: 77.1 × 69 × 26 mm (3.04" × 2.72" × 1.02"),With package: 254 × 164 × 130 mm (10" × 6.46" × 5.12")

Consumo de energía

12 VDC ± 20%, two-core terminal block, ,PoE: (802.3af, class 2)

accesorio

Shipping Weight

12 VDC ± 20%, 0.25 A, max. 3 W,PoE: (802.3af, 36V-57V), 0.2A to 0.1A, Max: 3.5W

Limpiador de lente

Camera: Plastic,Lens: Metal
