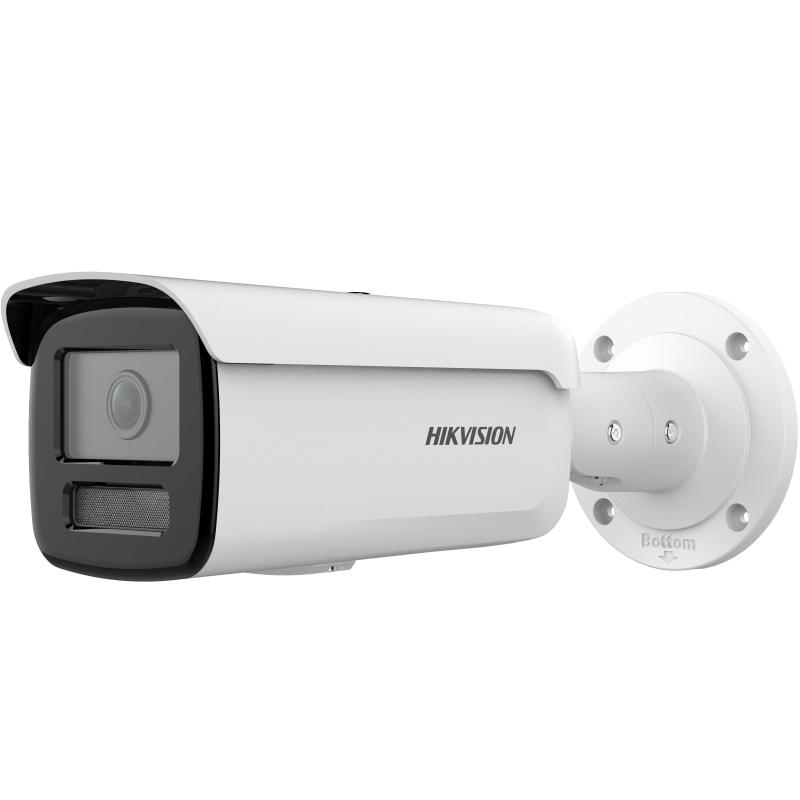

2 MP AcuSense Fixed Bullet Network Camera New

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • False alarm reduction through human and vehicle target classification based on deep learning
  • Water and dust resistant (IP67)
  • 3D DNR technology delivers clean and sharp images

Especificación
  • Cámara
  • Sensor de imagen1/2.8" Progressive Scan CMOS
  • Iluminación mínimaColor: 0.002 Lux @ (F1.4, AGC ON)
  • Wide dynamic range120 dB
  • Velocidad de obturación1/3 s to 1/100,000 s
  • Día y NocheICR Cut
  • Obturador lentoYes
  • Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • P/NP/N
  • Lente
  • Focal Length & FOV2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 129° 4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102° 6 mm, horizontal FOV 55°, vertical FOV 29°, diagonal FOV 65°
  • AperturaF1.4
  • Montura del lenteM12
  • Iris TypeFixed
  • Iluminador
  • Rango IR2I: Up to 60 m 4I: Up to 80 m
  • IR Wavelength850 nm
  • Luz de suplemento inteligenteYes
  • Tipo de luz suplementariaIR
  • Vídeo
  • Max. Resolución1920 × 1080
  • Main stream50Hz: 25fps (1920 × 1080, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 720)
  • Sub-stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240)
  • Compresión de videoMain stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • Vídeo bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile/Main Profile/High Profile
  • Tipo H.265Main Profile
  • H.264 +Main Stream supports
  • H.265 +Main Stream supports
  • Bit Rate ControlCBR/VBR
  • Codificación de video escalable (SVC)Yes
  • Región de interés (ROI)1 fixed region for each stream
  • Red
  • Vista en vivo simultáneaUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, SNMP
  • Smooth StreamingYes
  • Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
  • SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
  • Almacenamiento en redMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported
  • ClienteiVMS-4200, Hik-Connect, Hik-Central
  • Navegador webPlug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome57.0+, Firefox52.0+
  • Imagen
  • Interruptor día/nocheDay, Night, Auto, Schedule
  • Mejora de la imagenBLC, HLC, 3D DNR
  • Interruptor de parámetros de imagenYes
  • Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Interfaz
  • On-Board StorageBuilt-in micro SD slot, up to 256 GB
  • Restablecimiento de hardwareYes
  • Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Deep Learning Function
  • Captura de la caraYes
  • Protección perimetralLine crossing detection, intrusion detection, region entrance detection, region exiting detection
  • Inteligente (Algoritmo tradicional)
  • Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
  • General
  • Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Fuente de alimentación12 VDC ± 25%, reverse polarity protection PoE: 802.3af,class 3
  • Power Consumption and Current2I: 12 VDC, 0.63 A, max. 7.5 W PoE: (802.3af, 36 V to 57 V) ,0.25 A to 0.16 A, max. 9 W 4I: 12 VDC, 0.88 A, max. 10.5 W PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W
  • Interfaz de energíaØ5.5 mm coaxial power plug
  • Dimensión de la cámaraØ105 × 289.5 mm (4.1" × 11.4")
  • Dimensión del paquete386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
  • Peso de la cámaraApprox. 1090 g (2.4 lb.)
  • Con peso del paqueteApprox. 1614 g (3.6 lb.)
  • Método de enlaceUpload to NAS/memory card, notify surveillance center, trigger record, trigger capture
  • Idioma del cliente web33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Función generalAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
  • Reinicio de softwareYes
  • Certificaciones
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
  • AmbienteCE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
  • ProtecciónIngression protection: IP67 (IEC 60529-2013)
Especificación
