EOL

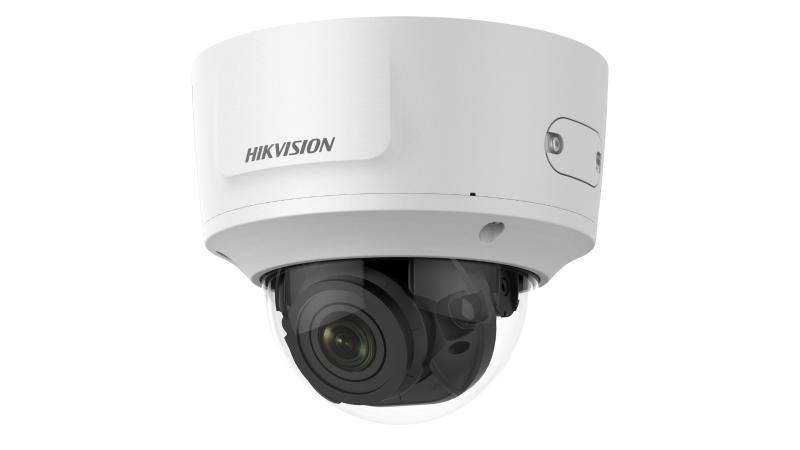

2 MP Outdoor WDR Motorized Varifocal Dome Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP66) and vandal proof (IK10)
Motorized vari-focal lens for easy installation and monitoring
Robust structure design with full metal materials.

View Less

Modelos disponibles:

DS-2CD2723G0-IZS(2.8-12mm)

DS-2CD2723G0-IZS

EOL

Especificación
Resources
Accesorios

Cámara
Sensor de imagen 1/2.8" Progressive Scan CMOS
Iluminación mínima Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Velocidad de obturación 1/3 s to 1/100,000 s
Obturador lento Yes
Wide dynamic range 120dB
Día y Noche IR Cut Filter
Ajuste de ángulo Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lente
Enfoque Auto
Lente 2.8 to 12 mm，Motorized
FOV horizontal FOV: 110° to 31°,vertical FOV: 58° to 18°,diagonal FOV: 136° to 36°
Apertura F1.6
Montura del lente Φ14
Tipo de apertura Fixed

Iluminador
Rango IR Up to 30 m
Longitud de onda 850nm

Vídeo
Max. Resolución 1920 × 1080
Main stream 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Compresión de video Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Vídeo bitrate 32 Kbps to 16 Mbps
Tipo H.264 Main Profile/High Profile
Tipo H.265 Main Profile
H.264 + Main stream supports
H.265 + Main stream supports
Codificación de video escalable (SVC) H.264 and H.265 encoding

Audio
Filtro de ruido ambiental Yes
Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Compresión de audio G722.1/G.711/G726/MP2L2/PCM/MP3
Velocidad de bits de audio 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Red
Vista en vivo simultánea Up to 6 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Protocolos TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Usuario/operador Up to 32 users,3 levels: Administrator, Operator and User
Seguridad Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Almacenamiento en red Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Cliente iVMS-4200, Hik-Connect, Hik-Central
Navegador web Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Activador de alarma Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Wi-Fi
Modo de encriptación Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Imagen
Interruptor día/noche Day/Night/Auto/Schedule/Triggered by alarm in
Recorte objetivo No
DNR 3D DNR
Mejora de la imagen BLC/3D DNR/HLC
Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Evento
Evento Básico Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligente Line crossing detection, intrusion detection, face detection
Detección de rostro Yes

Interfaz
Audio 1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
Alarma 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
Almacenamiento a bordo Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Restablecimiento de hardware Yes
Interfaz de comunicación 1 RJ45 10M/100M self-adaptive Ethernet port
Salida de Vídeo 1 Vp-p Composite Output(75Ω) (For adjustment only)

General
Método de enlace Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Versión del firmware 5.6.3
Idioma del cliente web 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función general Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Condiciones de inicio y funcionamiento -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Fuente de alimentación 12 VDC ± 25%, terminal block,PoE (802.3af, class 3)
Consumo de energía y corriente 12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12W
Dimensión de la cámara Φ 153.4 × 133.1 mm (Φ 6.0" × 5.2")
Peso de la cámara Camera: Approx. 1330 g (2.9 lb.),With Package: Approx. 1800 g (4.0 lb.)

Certificaciones
Protección IK10, IP66

Cámara

Sensor de imagen

1/2.8" Progressive Scan CMOS

Iluminación mínima

Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR

Velocidad de obturación

1/3 s to 1/100,000 s

Obturador lento

Yes

Wide dynamic range

120dB

Día y Noche

IR Cut Filter

Ajuste de ángulo

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lente

Enfoque

Auto

Lente

2.8 to 12 mm，Motorized

FOV

horizontal FOV: 110° to 31°,vertical FOV: 58° to 18°,diagonal FOV: 136° to 36°

Apertura

F1.6

Montura del lente

Φ14

Tipo de apertura

Fixed

Iluminador

Rango IR

Up to 30 m

Longitud de onda

850nm

Vídeo

Max. Resolución

1920 × 1080

Main stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

Compresión de video

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Main Profile/High Profile

Tipo H.265

Main Profile

H.264 +

Main stream supports

H.265 +

Main stream supports

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Audio

Filtro de ruido ambiental

Yes

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Compresión de audio

G722.1/G.711/G726/MP2L2/PCM/MP3

Velocidad de bits de audio

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Red

Vista en vivo simultánea

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome

Protocolos

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

Usuario/operador

Up to 32 users,3 levels: Administrator, Operator and User

Seguridad

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Almacenamiento en red

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+

Activador de alarma

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Wi-Fi

Modo de encriptación

Imagen

Interruptor día/noche

Day/Night/Auto/Schedule/Triggered by alarm in

Recorte objetivo

DNR

3D DNR

Mejora de la imagen

BLC/3D DNR/HLC

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Evento

Evento Básico

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Evento inteligente

Line crossing detection, intrusion detection, face detection

Detección de rostro

Yes

Interfaz

Audio

1 input (line in/mic.in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound

Alarma

1 input, 1 output (max. 12 VDC, 30 mA), terminal block

Almacenamiento a bordo

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Restablecimiento de hardware

Yes

Interfaz de comunicación

1 RJ45 10M/100M self-adaptive Ethernet port

Salida de Vídeo

1 Vp-p Composite Output(75Ω) (For adjustment only)

General

Método de enlace

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email

Versión del firmware

5.6.3

Idioma del cliente web

32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Función general

Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Condiciones de inicio y funcionamiento

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Fuente de alimentación

12 VDC ± 25%, terminal block,PoE (802.3af, class 3)

Consumo de energía y corriente

12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12W

Dimensión de la cámara

Φ 153.4 × 133.1 mm (Φ 6.0" × 5.2")

Peso de la cámara

Camera: Approx. 1330 g (2.9 lb.),With Package: Approx. 1800 g (4.0 lb.)
