DS-2CD2527G2-LS

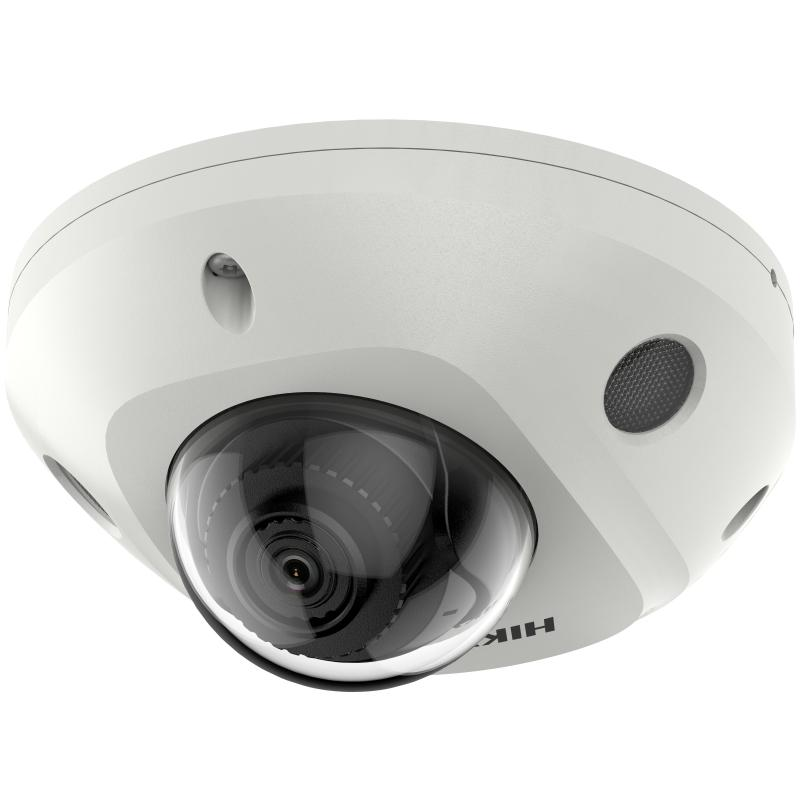

2 MP ColorVu Fixed Mini Dome Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB WDR technology
24/7 colorful imaging
Focus on human and vehicle classification based on deep learning
-S: audio and alarm interface available
Water and dust resistant (IP67) and vandal resistant (IK08)

View Less

DS-2CD2527G2-LS (C)

Modelos disponibles:

DS-2CD2527G2-LS(4mm)(C)

DS-2CD2527G2-LS(2.8mm)(C)

Cámara
Sensor de imagen 1/2.8" Progressive Scan CMOS
Max. Resolución 1920 × 1080
Iluminación mínima Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Tiempo de obturación 1/3 s to 1/100,000 s
Día y Noche 24/7 Color imaging
Ajuste de ángulo Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lente
Lente Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 105°, vertical FOV 57°, diagonal FOV 125° 4 mm, horizontal FOV 84°, vertical FOV 46°, diagonal FOV 98°
Montura del lente M12
Iris Type Fixed
Apertura F1.0
Depth of Field 2.8 mm: 1.6 m to ∞ 4 mm: 2.1 m to ∞

DORI
DORI 2.8 mm: D: 47 m O: 19 m R: 9 m I: 5 m 4 mm: D: 57 m O: 22 m R: 11 m I: 6 m

Iluminador
Tipo de luz suplementaria White Light
Rango de luz suplementaria Up to 30 m
Luz de suplemento inteligente Yes

Vídeo
Main stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Compresión de video Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
Vídeo bitrate 32 Kbps to 8 Mbps
Tipo H.264 Baseline Profile/Main Profile/High Profile
Tipo H.265 Main Profile
Bit Rate Control CBR/VBR
Codificación de video escalable (SVC) H.264 and H.265 encoding
Región de interés (ROI) 1 fixed region for main stream and sub-stream

Audio
Filtro de ruido ambiental Yes
Frecuencia de muestreo de audio 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Compresión de audio G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Velocidad de bits de audio 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Red
Vista en vivo simultánea Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Usuario/operador Up to 32 users. 3 user levels: administrator, operator and user
Seguridad Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Almacenamiento en red NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Cliente iVMS-4200, Hik-Connect, Hik-Central
Navegador web Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Interruptor día/noche Day, Night, Auto, Schedule
Mejora de la imagen BLC, HLC, 3D DNR
Interruptor de parámetros de imagen Yes
Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 512 GB
Micrófono incorporado Yes
Audio -LS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarma -LS: 1 input, 1 output (max. 12 VDC, 20 mA)
Reset Key Yes

Evento
Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email
Evento inteligente Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection

Deep Learning Function
Captura de la cara Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General
alimentación 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
Material Base: aluminum, cover: plastic
Dimensión Ø110 mm × 57.4 mm (Ø4.3" × 2.3")
Dimensión del paquete 134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Approx. 375 g (0.8 lb.)
Con peso del paquete Approx. 620 g (1.4 lb.)
Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Función general Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Certificaciones
EMC FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)
Seguridad UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) LOA (IEC/EN 60950-1)
Ambiente CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
Protección IP67: IEC 60529-2013,IK08: IEC 62262:2002

Especificación

Cámara

Sensor de imagen

1/2.8" Progressive Scan CMOS

Max. Resolución

1920 × 1080

Iluminación mínima

Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light

Tiempo de obturación

1/3 s to 1/100,000 s

Día y Noche

24/7 Color imaging

Ajuste de ángulo

Pan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lente

Fixed focal lens, 2.8 and 4 mm optional

Focal Length & FOV

2.8 mm, horizontal FOV 105°, vertical FOV 57°, diagonal FOV 125° 4 mm, horizontal FOV 84°, vertical FOV 46°, diagonal FOV 98°

Montura del lente

M12

Iris Type

Fixed

Apertura

F1.0

Depth of Field

2.8 mm: 1.6 m to ∞ 4 mm: 2.1 m to ∞

DORI

2.8 mm: D: 47 m O: 19 m R: 9 m I: 5 m 4 mm: D: 57 m O: 22 m R: 11 m I: 6 m

Iluminador

Tipo de luz suplementaria

White Light

Rango de luz suplementaria

Up to 30 m

Luz de suplemento inteligente

Yes

Vídeo

Main stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.

Compresión de video

Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.

Vídeo bitrate

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR/VBR

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

1 fixed region for main stream and sub-stream

Audio

Filtro de ruido ambiental

Yes

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Compresión de audio

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

Velocidad de bits de audio

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Red

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator and user

Seguridad

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Almacenamiento en red

NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Imagen

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 52 dB

Interruptor día/noche

Day, Night, Auto, Schedule

Mejora de la imagen

BLC, HLC, 3D DNR

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD card, up to 512 GB

Micrófono incorporado

Yes

Audio

-LS: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Alarma

-LS: 1 input, 1 output (max. 12 VDC, 20 mA)

Reset Key

Yes

Evento

Evento Básico

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email

Evento inteligente

Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection

Deep Learning Function

Captura de la cara

Yes

Perimeter Protection

Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General

alimentación

12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W

Material

Base: aluminum, cover: plastic

Dimensión

Ø110 mm × 57.4 mm (Ø4.3" × 2.3")

Dimensión del paquete

134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")

Approx. 375 g (0.8 lb.)

Con peso del paquete

Approx. 620 g (1.4 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Función general

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Certificaciones

EMC

FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015)

Seguridad

UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) LOA (IEC/EN 60950-1)

Ambiente

CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)

Protección

IP67: IEC 60529-2013,IK08: IEC 62262:2002
