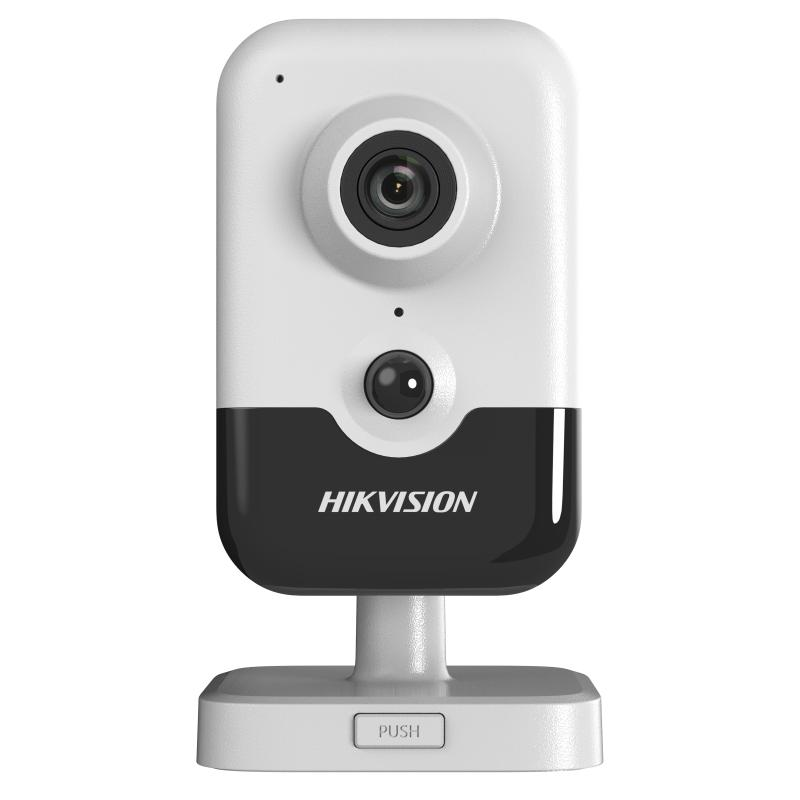

2MP PIR Cube Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Provide real-time security via built-in two-way audio
Detect human body through passive infrared which is sensitive to body temperature (PIR)

View Less

Modelos disponibles:

DS-2CD2421G0-I(2.8mm)

DS-2CD2421G0-I(2.0mm)

DS-2CD2421G0-I(4mm)

DS-2CD2421G0-I(D)(W)

EOL

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/2.7" Progressive Scan CMOS
Max. Resolución1920 × 1080
Iluminación mínima2 mm: Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR 2.8 mm and 4 mm: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Tiempo de obturación1/3 s to 1/100, 000 s
Día y NocheIR cut filter
Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lente
LenteFixed focal length, 2, 2.8, and 4 mm optional
Focal Length & FOV2 mm, horizontal FOV 137.2°, vertical FOV 80.1°, diagonal FOV 157.4° 2.8 mm, horizontal FOV 113.4°, vertical FOV 59.8°, diagonal FOV 135.6° 4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°
Apertura2 mm: F2.25 2.8 mm: F1.6 4 mm: F1.6
Iris TypeFixed
Montura del lenteM12

DORI
DORI2 mm: D: 30.3 m, O: 12.0 m, R: 6.1 m, I: 3.0 m 2.8 mm: D: 37.3 m, O: 14.8 m, R: 7.5 m, I: 3.7 m 4 mm: D: 52.9 m, O: 21.0 m, R: 10.6 m, I: 5.3 m

Iluminador
Rango de luz suplementariaUp to 10 m
IR Wavelength850 nm
Luz de suplemento inteligenteYes

Vídeo
Main stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR/VBR
Codificación de video escalable (SVC)Yes
Región de interés (ROI)1 fixed region for main stream

Audio
Filtro de ruido ambientalYes
Frecuencia de muestreo de audio8 kHz/16 kHz
Compresión de audioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Velocidad de bits de audio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Red
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface, ISAPI
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X(-W model does not support), QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, SNMP, PPPoE
Usuario/operadorUp to 32 users. 3 levels: administrator, operator and user
SeguridadPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
ClienteiVMS-4200, Hik-Connect
Navegador webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Wi-Fi
Modo de encriptación-IW: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK
Protocolo de Wi-Fi-IW: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Rango de frecuencia-IW: 2.412 GHz - 2.472 GHz
Canal de ancho de banda-IW: 20/40 MHz
Modulación-IW: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM
Ratio de transferencia-IW: 11b/g: 54 Mbps 11n: up to 150 Mbps
Alcance inalámbrico-IW: Up to 50 m (The performance varies based on actual environment)

Imagen
Wide Dynamic Range (WDR)120 dB
Interruptor día/nocheDay, Night, Auto, Schedule
Mejora de la imagenBLC, 3D DNR
Configuración de imagenSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.

Transducer
Ángulo PIRHorizontal: 90°, vertical: 80°
Rango PIRUp to 8 m

Interfaz
Micrófono incorporadoYes
Altavoz incorporadoPower: 1 W. Max. sound pressure level: 10 cm: 91 dB.
On-Board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Reset KeyYes
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Evento
Evento BásicoMotion detection, video tampering alarm, exception
Evento inteligenteLine crossing detection, intrusion detection
LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning

General
alimentación-I: 12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W -IW: 12 VDC ± 25%, 0.66 A, max. 7.9 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 8.9 W
Idioma33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Función generalAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Condiciones de almacenaje-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Dimensión2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6" × 1.1") 2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Dimensión del paquete150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Approx. 115 g (0.3 lb.)
Con peso del paqueteApprox. 330 g (0.7 lb.)

Certificaciones
EMCFCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)
RF-IW: FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
SeguridadCB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Cámara

Sensor de imagen

1/2.7" Progressive Scan CMOS

Max. Resolución

1920 × 1080

Iluminación mínima

2 mm: Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR 2.8 mm and 4 mm: Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Tiempo de obturación

1/3 s to 1/100, 000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lente

Fixed focal length, 2, 2.8, and 4 mm optional

Focal Length & FOV

2 mm, horizontal FOV 137.2°, vertical FOV 80.1°, diagonal FOV 157.4° 2.8 mm, horizontal FOV 113.4°, vertical FOV 59.8°, diagonal FOV 135.6° 4 mm, horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°

Apertura

2 mm: F2.25 2.8 mm: F1.6 4 mm: F1.6

Iris Type

Fixed

Montura del lente

M12

DORI

2 mm: D: 30.3 m, O: 12.0 m, R: 6.1 m, I: 3.0 m 2.8 mm: D: 37.3 m, O: 14.8 m, R: 7.5 m, I: 3.7 m 4 mm: D: 52.9 m, O: 21.0 m, R: 10.6 m, I: 5.3 m

Iluminador

Rango de luz suplementaria

Up to 10 m

IR Wavelength

850 nm

Luz de suplemento inteligente

Yes

Vídeo

Main stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR/VBR

Codificación de video escalable (SVC)

Yes

Región de interés (ROI)

1 fixed region for main stream

Audio

Filtro de ruido ambiental

Yes

Frecuencia de muestreo de audio

8 kHz/16 kHz

Compresión de audio

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Velocidad de bits de audio

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)

Red

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface, ISAPI

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X(-W model does not support), QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS, SNMP, PPPoE

Usuario/operador

Up to 32 users. 3 levels: administrator, operator and user

Seguridad

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Cliente

iVMS-4200, Hik-Connect

Navegador web

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Wi-Fi

Modo de encriptación

-IW: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK

Protocolo de Wi-Fi

-IW: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM

Rango de frecuencia

-IW: 2.412 GHz - 2.472 GHz

Canal de ancho de banda

-IW: 20/40 MHz

Modulación

-IW: 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM

Ratio de transferencia

-IW: 11b/g: 54 Mbps 11n: up to 150 Mbps

Alcance inalámbrico

-IW: Up to 50 m (The performance varies based on actual environment)

Imagen

Wide Dynamic Range (WDR)

120 dB

Interruptor día/noche

Day, Night, Auto, Schedule

Mejora de la imagen

BLC, 3D DNR

Configuración de imagen

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.

Transducer

Ángulo PIR

Horizontal: 90°, vertical: 80°

Rango PIR

Up to 8 m

Interfaz

Micrófono incorporado

Yes

Altavoz incorporado

Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.

On-Board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB

Reset Key

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Evento

Evento Básico

Motion detection, video tampering alarm, exception

Evento inteligente

Line crossing detection, intrusion detection

Linkage

Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning

General

alimentación

-I: 12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W -IW: 12 VDC ± 25%, 0.66 A, max. 7.9 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 8.9 W

Idioma

33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Función general

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Condiciones de almacenaje

-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)

Dimensión

2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6" × 1.1") 2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")

Dimensión del paquete

150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")

Approx. 115 g (0.3 lb.)

Con peso del paquete

Approx. 330 g (0.7 lb.)

Certificaciones

EMC

FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014)

-IW: FCC ID (FCC Part 15.247(BT or 2.4G)); CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G))
