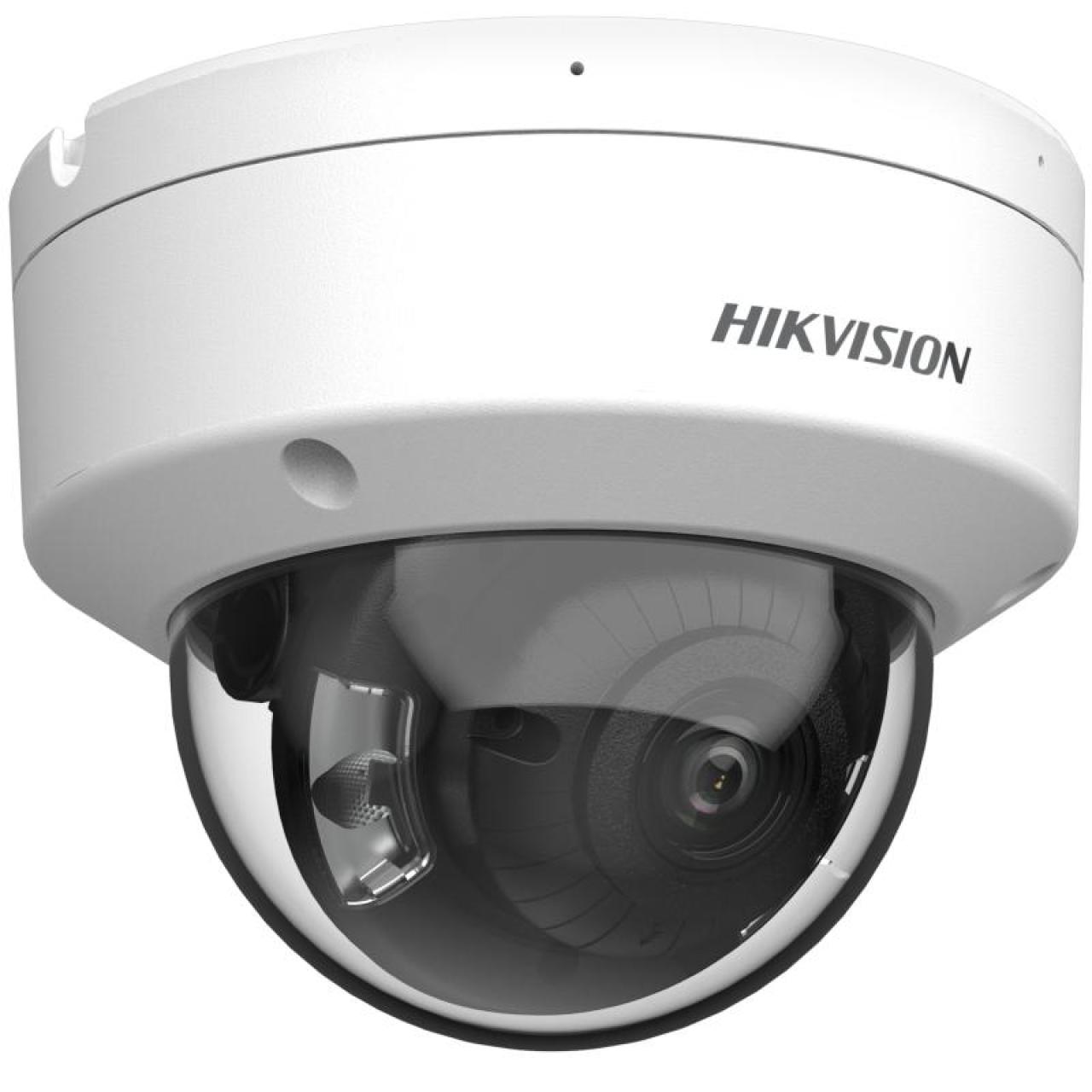

4K ColorVu Fixed Dome Network Camera

  • High quality imaging with 8 MP resolution
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • -SU: Built-in microphone for real-time audio security, audio and alarm interface available
  • Water and dust resistant (IP67) and vandal resistant (IK10)

View Less
View more
DS-2CD2187G2-LSU (C) (Black)
DS-2CD2187G2-LSU (C)
DS-2CD2187G2-L (C)
Ficha Técnica
Sales Inquiry

Modelos disponibles:

DS-2CD2187G2-LSU(2.8mm)(C)(BLACK)

Modelos disponibles:

DS-2CD2187G2-LSU(2.8mm)(C)
DS-2CD2187G2-LSU(4mm)(C)

Modelos disponibles:

DS-2CD2187G2-L(2.8mm)(C)
DS-2CD2187G2-L(4mm)(C)
DS-2CD2187G2-L(SU)
Ficha Técnica

Especificación

  • Cámara
  • Sensor de imagen 1/1.8" Progressive Scan CMOS
  • Max. Resolución 3840 × 2160
  • Iluminación mínima Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
  • Tiempo de obturación 1/3 s to 1/100,000 s
  • Día y Noche 24/7 color imaging
  • Ajuste de ángulo Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
  • Lente
  • Lente Fixed focal lens, 2.8 and 4 mm optional
  • Focal Length & FOV 2.8 mm, horizontal FOV 109°, vertical FOV 59°, diagonal FOV 130° 4 mm, horizontal FOV 93°, vertical FOV 49°, diagonal FOV 111°
  • Montura del lente M16
  • Iris Type Fixed
  • Apertura F1.0
  • Depth of Field 2.8 mm: 3.1 m to ∞ 4 mm: 3.5 m to ∞
  • DORI
  • DORI 2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
  • Iluminador
  • Tipo de luz suplementaria White Light
  • Rango de luz suplementaria Up to 30 m
  • Luz de suplemento inteligente Yes
  • Vídeo
  • Main stream 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
  • Vídeo bitrate 32 Kbps to 16 Mbps
  • Tipo H.264 Baseline Profile,Main Profile,High Profile
  • Tipo H.265 Main Profile
  • Bit Rate Control CBR,VBR
  • Codificación de video escalable (SVC) H.264 and H.265 encoding
  • Región de interés (ROI) 1 fixed region(s) for main stream and sub-stream
  • Audio
  • Tipo de audio -SU: Mono sound
  • Compresión de audio -SU: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Velocidad de bits de audio -SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Frecuencia de muestreo de audio -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Filtro de ruido ambiental -SU: Yes
  • Red
  • Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
  • Vista en vivo simultánea Up to 6 channels
  • API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
  • Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
  • Seguridad Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
  • Almacenamiento en red NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • Cliente iVMS-4200,iVMS-5200,Hik-Connect
  • Navegador web Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
  • Imagen
  • Interruptor de parámetros de imagen Yes
  • Configuración de imagen Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Interruptor día/noche Day,Night,Auto,Schedule
  • Wide Dynamic Range (WDR) 130 dB
  • SNR ≥ 52 dB
  • Mejora de la imagen BLC,HLC,3D DNR
  • Máscara de privacidad 4 regions of privacy mask
  • Interfaz
  • Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
  • Micrófono incorporado -SU: Yes
  • Audio -SU: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
  • Alarma -SU: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
  • Reset Key Yes
  • Evento
  • Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Evento inteligente Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
  • Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning (-SU), trigger alarm output (-SU), supplement light
  • Deep Learning Function
  • Captura de la cara Yes
  • General
  • alimentación 12 VDC ± 25%, 0.6 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 8.5 W
  • Material Metal
  • Dimensión Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")
  • Dimensión del paquete 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
  • Approx. 540 g (1.2 lb.)
  • Con peso del paquete Approx. 735 g (1.6 lb.)
  • Idioma 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Función general Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams
  • Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Certificaciones
  • EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
  • Seguridad UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
  • Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • Protección IP67: IEC 60529-2013,IK10: IEC 62262:2002
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Cámara
Sensor de imagen
1/1.8" Progressive Scan CMOS
Max. Resolución
3840 × 2160
Iluminación mínima
Color: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
Tiempo de obturación
1/3 s to 1/100,000 s
Día y Noche
24/7 color imaging
Ajuste de ángulo
Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lente
Lente
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 109°, vertical FOV 59°, diagonal FOV 130° 4 mm, horizontal FOV 93°, vertical FOV 49°, diagonal FOV 111°
Montura del lente
M16
Iris Type
Fixed
Apertura
F1.0
Depth of Field
2.8 mm: 3.1 m to ∞ 4 mm: 3.5 m to ∞
DORI
DORI
2.8 mm, D: 84 m, O: 33 m, R: 16 m, I: 8 m 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
Iluminador
Tipo de luz suplementaria
White Light
Rango de luz suplementaria
Up to 30 m
Luz de suplemento inteligente
Yes
Vídeo
Main stream
50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Compresión de video
Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264
Vídeo bitrate
32 Kbps to 16 Mbps
Tipo H.264
Baseline Profile,Main Profile,High Profile
Tipo H.265
Main Profile
Bit Rate Control
CBR,VBR
Codificación de video escalable (SVC)
H.264 and H.265 encoding
Región de interés (ROI)
1 fixed region(s) for main stream and sub-stream
Audio
Tipo de audio
-SU: Mono sound
Compresión de audio
-SU: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Velocidad de bits de audio
-SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Frecuencia de muestreo de audio
-SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtro de ruido ambiental
-SU: Yes
Red
Protocolos
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Vista en vivo simultánea
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
Usuario/operador
Up to 32 users 3 user levels: administrator, operator, and user
Seguridad
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Almacenamiento en red
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Cliente
iVMS-4200,iVMS-5200,Hik-Connect
Navegador web
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Imagen
Interruptor de parámetros de imagen
Yes
Configuración de imagen
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/noche
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)
130 dB
SNR
≥ 52 dB
Mejora de la imagen
BLC,HLC,3D DNR
Máscara de privacidad
4 regions of privacy mask
Interfaz
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Micrófono incorporado
-SU: Yes
Audio
-SU: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarma
-SU: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA)
Reset Key
Yes
Evento
Evento Básico
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Evento inteligente
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), scene change detection
Linkage
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,audible warning (-SU), trigger alarm output (-SU), supplement light
Deep Learning Function
Captura de la cara
Yes
General
alimentación
12 VDC ± 25%, 0.6 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3af, Class 3, max. 8.5 W
Material
Metal
Dimensión
Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")
Dimensión del paquete
150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Approx. 540 g (1.2 lb.)
Con peso del paquete
Approx. 735 g (1.6 lb.)
Idioma
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Condiciones de almacenaje
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Función general
Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams
Condiciones de inicio y funcionamiento
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Certificaciones
EMC
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Seguridad
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1
Ambiente
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección
IP67: IEC 60529-2013,IK10: IEC 62262:2002
