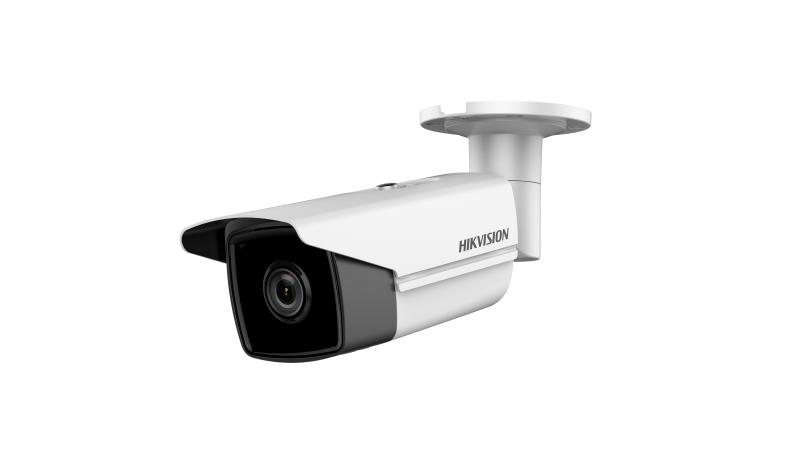

DS-2CD2T45FWD-I5/I8

4 MP Powered-by-DarkFighter Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Robust structure design with full metal materials.

View Less

Modelos disponibles:

DS-2CD2T45FWD-I8(4mm)

DS-2CD2T45FWD-I8(2.8mm)

DS-2CD2T45FWD-I8(6mm)

DS-2CD2T45FWD-I8(8mm)

DS-2CD2T45FWD-I8(12mm)

Cámara
Sensor de imagen 1/2.5" Progressive Scan CMOS
Iluminación mínima Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Velocidad de obturación 1/3 s to 1/100,000 s
Obturador lento Yes
Wide dynamic range 120dB
Día y Noche IR Cut Filter
Ajuste de ángulo Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Lente
Enfoque Fixed
Lente 2.8, 4, 6, 8, 12 mm
FOV 2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°,4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°,6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°,8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°,12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
Apertura F1.6
Montura del lente M12
Tipo de apertura Fixed

Iluminador
Rango IR I5: Up to 50 m,I8: Up to 80 m
Longitud de onda 850nm

Vídeo
Max. Resolución 2688 × 1520
Main stream 50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream 50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream 50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)
Compresión de video Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Vídeo bitrate 32 Kbps to 16 Mbps
Tipo H.264 Main Profile/High Profile
Tipo H.265 Main Profile
H.264 + Main stream supports
H.265 + Main stream supports
Codificación de video escalable (SVC) H.264 and H.265 encoding support
Región de interés (ROI) Support 1 fixed region for main stream and sub-stream

Red
Vista en vivo simultánea Up to 6 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
Protocolos TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets
Usuario/operador Up to 32 users,3 levels: Administrator, Operator and User
Almacenamiento en red Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Cliente iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Navegador web Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
Activador de alarma Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Imagen
Interruptor día/noche Day/Night/Auto/Schedule
Recorte objetivo No
DNR 3D DNR
Mejora de la imagen BLC/3D DNR/HLC
Configuración de imagen Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interfaz
Almacenamiento a bordo Built-in microSD/SDHC/SDXC slot, up to 128 GB
Restablecimiento de hardware Yes
Interfaz de comunicación 1 RJ45 10M/100M self-adaptive Ethernet port

Evento
Evento inteligente Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
Detección de rostro Yes
Detección de excepciones Scene change detection

General
Versión del firmware V5.5.80
Función general One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Condiciones de inicio y funcionamiento -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Fuente de alimentación 12 VDC ± 25%, Φ 5.5 mm coaxial plug power,PoE(802.3af, class 3)
Consumo de energía y corriente I5:,12 VDC, 0.7 A, max. 7.5 W,PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 9.5 W,I8:,12 VDC, 1 A, max: 11.5 W,PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W
Dimensión de la cámara Camera: Φ104.8 mm × 299.7 mm (Φ4.1" × 11.8"),Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Peso de la cámara Camera: 1200 g (2.7 lb.)

Certificaciones
Protección IP67

Especificación

Cámara

Sensor de imagen

1/2.5" Progressive Scan CMOS

Iluminación mínima

Color: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR

Velocidad de obturación

1/3 s to 1/100,000 s

Obturador lento

Yes

Wide dynamic range

120dB

Día y Noche

IR Cut Filter

Ajuste de ángulo

Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Lente

Enfoque

Fixed

Lente

2.8, 4, 6, 8, 12 mm

FOV

2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°,4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°,6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°,8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°,12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°

Apertura

F1.6

Montura del lente

M12

Tipo de apertura

Fixed

Iluminador

Rango IR

I5: Up to 50 m,I8: Up to 80 m

Longitud de onda

850nm

Vídeo

Max. Resolución

2688 × 1520

Main stream

50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50Hz: 25 fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30 fps (1280 × 720, 640 × 360, 352 × 240)

Compresión de video

Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Main Profile/High Profile

Tipo H.265

Main Profile

H.264 +

Main stream supports

H.265 +

Main stream supports

Codificación de video escalable (SVC)

H.264 and H.265 encoding support

Región de interés (ROI)

Support 1 fixed region for main stream and sub-stream

Red

Vista en vivo simultánea

Up to 6 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets

Usuario/operador

Up to 32 users,3 levels: Administrator, Operator and User

Almacenamiento en red

Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Cliente

iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500

Navegador web

Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+

Activador de alarma

Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Imagen

Interruptor día/noche

Day/Night/Auto/Schedule

Recorte objetivo

DNR

3D DNR

Mejora de la imagen

BLC/3D DNR/HLC

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interfaz

Almacenamiento a bordo

Built-in microSD/SDHC/SDXC slot, up to 128 GB

Restablecimiento de hardware

Yes

Interfaz de comunicación

1 RJ45 10M/100M self-adaptive Ethernet port

Evento

Evento inteligente

Line crossing detection, intrusion detection, object removal detection, unattended baggage detection

Detección de rostro

Yes

Detección de excepciones

Scene change detection

General

Versión del firmware

V5.5.80

Función general

One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Condiciones de inicio y funcionamiento

-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)

Fuente de alimentación

12 VDC ± 25%, Φ 5.5 mm coaxial plug power,PoE(802.3af, class 3)

Consumo de energía y corriente

I5:,12 VDC, 0.7 A, max. 7.5 W,PoE (802.3af, 36V to 57V), 0.3 A to 0.1 A, max. 9.5 W,I8:,12 VDC, 1 A, max: 11.5 W,PoE (802.3af, 36V to 57V), 0.4 A to 0.2 A, max. 12.9 W

Dimensión de la cámara

Camera: Φ104.8 mm × 299.7 mm (Φ4.1" × 11.8"),Package: 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")

Peso de la cámara

Camera: 1200 g (2.7 lb.)

Certificaciones

Protección

IP67
