EOL

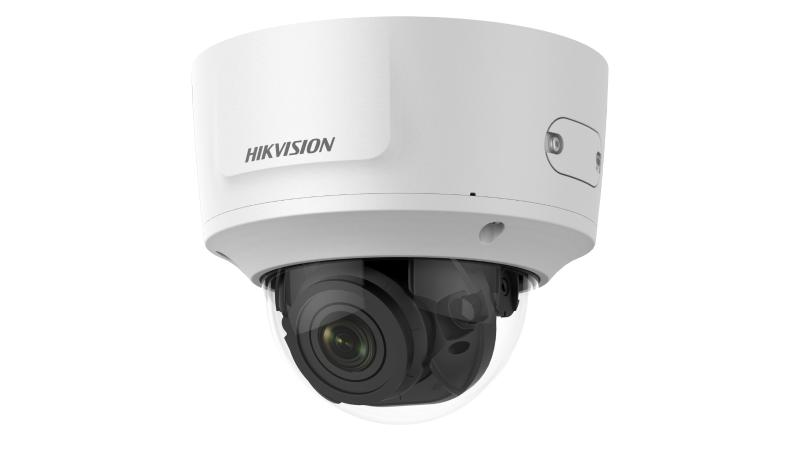

4K Outdoor WDR Motorized Varifocal Dome Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Motorized vari-focal lens for easy installation and monitoring
  • Robust structure design with full metal materials.
View Less
View more

Modelos disponibles:

DS-2CD2783G0-IZS(2.8-12mm)
Especificación
  • Cámara
  • Sensor de imagen 1/2.5" Progressive Scan CMOS
  • Iluminación mínima Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Velocidad de obturación 1/3 s to 1/100,000 s
  • Obturador lento Yes
  • Día y noche IR Cut Filter
  • Wide dynamic range 120dB
  • Ajuste de ángulo Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • DNR 3D DNR
  • Lente
  • Lente 2.8 to 12 mm
  • Auto-Iris No
  • Apertura F1.6
  • Enfoque Auto
  • FOV Horizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
  • Montura del lente Φ14
  • Lente Motorized
  • Iluminador
  • Rango IR Up to 30 m
  • Longitud de onda 850nm
  • Descodificación
  • Audio compression G722.1/G.711/G726/MP2L2/PCM/MP3
  • Vídeo
  • Max. Resolución 3840 × 2160
  • Main stream 50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Compresión de vídeo Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Tipo H.264 Main Profile/High Profile
  • Tipo H.265 Main Profile
  • Vídeo bitrate 32 Kbps to 16 Mbps
  • SVC H.264 and H.265 encoding support
  • Audio
  • Compresión de audio G.711/G.722.1/G.726/MP2L2/PCM
  • Velocidad de bits de audio 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Filtro de ruido ambiental Yes
  • Frecuencia de muestreo de audio 8kHz/16kHz/32kHz/44.1kHZ/48kHz
  • Conjunto de funciones inteligentes
  • Evento inteligente Line crossing detection, intrusion detection, face detection
  • Evento Básico Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Método de enlace Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Imagen
  • Mejora de la imagen BLC/3D DNR/HLC
  • Ajuste de imagen Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interruptor día/noche Day/Night/Auto/Schedule/Triggered by Alarm In
  • Wi-Fi
  • Seguridad Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Red
  • Almacenamiento en red Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • Protocolos TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • Seguridad Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Vista en vivo simultánea Up to 6 channels
  • Usuario/operador Up to 32 users ,3 levels: Administrator, Operator and User
  • Cliente iVMS-4200, Hik-Connect, Hik-Central
  • Navegador web Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Activador de alarma Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Versión del firmware 5.6.3
  • Interfaz
  • Interfaz de comunicación 1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio 1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
  • Alarma 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Salida de Vídeo 1Vp-p composite output (75 Ω) (For adjustment only)
  • Almacenamiento a bordo Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Certificaciones
  • Protección contra impactos IK10
  • Compresión estándar
  • H.264 + Main stream supports
  • H.265 + Main stream supports
  • Smart Feature-set
  • Detección de rostro Yes
  • General
  • Idioma del cliente web 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • Función general Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Reiniciar Yes
  • Condiciones de inicio y funcionamiento -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Fuente de alimentación 12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Consumo de energía y corriente 12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W
  • Material Metal
  • Dimensiones Φ153.4 × 133.1 mm (Φ6" × 5.2")
  • Camera: 1287 g (2.8 lb.)
  • Protección de la interfaz IP66
