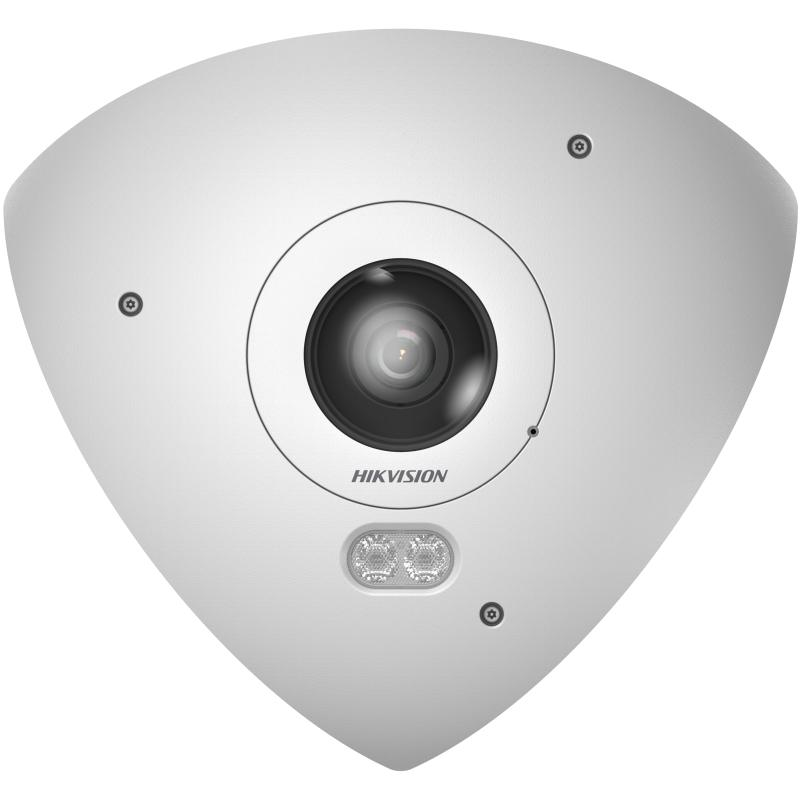

DS-2CD6W45G0-IVS

High quality imaging
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
3D DNR technology delivers clean and sharp images
Water and dust resistant (IP67) and vandal resistant (IK10+)

View Less

Ficha Técnica

Modelos disponibles:

DS-2CD6W45G0-IVS(2mm)

DS-2CD6W45G0-IVS ^Discontinued

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen1/1.8" Progressive Scan CMOS
Max. ResoluciónFisheye view: 3072 × 2048, panorama view: 2400 × 1800
Iluminación mínimaColor: 0.082 Lux @ (F2.4, AGC ON),B/W: 0.016 Lux @ (F2.4, AGC ON),0 Lux with IR
Tiempo de obturación1 s to 1/100,000 s
Día y NocheIR cut filter

Lente
LenteFixed focal lens, 2 mm
Focal Length & FOV2mm, horizontal FOV 135° (corner mount)
Iris TypeFixed
AperturaF2.4

DORI
DORID: 43.2 m (141.7 ft), O: 17.2 m (56.4 ft), R: 8.6 m (28.2 ft), I: 4.3 m (14.1 ft)

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaUp to 10 m
Luz de suplemento inteligenteYes
IR Wavelength940 nm

Vídeo
Main streamFisheye view: 50 Hz: 25 fps (3072 × 2048) 60 Hz: 25 fps (3072 × 2048) Panorama view: 50 Hz: 25 fps (2400 × 1800) 60 Hz: 25 fps (2400 × 1800)
Sub-streamFisheye view: 50 Hz: 25 fps (1920 × 1080, 720 × 720, 720 × 480) 60 Hz: 25 fps (1920 × 1080, 720 × 720, 720 × 480) Panorama view: 50 Hz: 25 fps (1920 × 1080, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 25 fps (1920 × 1080, 640 × 480, 640 × 360, 320 × 240)
Third StreamFisheye view: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Panorama view: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile,Main Profile,High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR,VBR
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)4 fixed region(s) for main stream and sub-stream

Audio
Tipo de audioMono sound
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Frecuencia de muestreo de audio8 kHz/16 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI
Usuario/operadorUp to 32 users 3 user levels: administrator, operator, and user
SeguridadPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Almacenamiento en redSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
ClienteiVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
Navegador web IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagensaturation,brightness,contrast,sharpness,AGC,adjustable by client software or web browser,white balance
Interruptor día/nocheDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)120 dB
Mejora de la imagenBLC,HLC,3D DNR,defog
Máscara de privacidad4 programmable polygon privacy masks
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Micrófono incorporado1 built-in microphone(s)
Audio 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
Alarma1 input, 1 output (max. 24 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
indicadorYes

Evento
Evento BásicoMotion detection,video tampering alarm,alarm input and output,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Evento inteligenteLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection

General
alimentación12 VDC ± 20%, 0.9 A, max. 11 W, 2-core terminal block, PoE: 802.3af, Class 0, 36 V to 57 V, 0.3 A to 0.2 A, max. 12 W
Dimensión213.73 mm × 199.67 mm × 137.57 mm (8.4" × 7.86" × 5.42")
Dimensión del paquete255 mm × 255 mm × 190 mm (10.04" × 10.04" × 7.48")
Approx. 1.338 kg (2.95 lb.)
Con peso del paquete Approx. 2.054 kg (4.53 lb.)
Condiciones de almacenaje-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
Idioma 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función generalone-key reset,anti-flicker,Heartbeat,mirror,password protection,privacy mask, watermark, IP address filter
Longitud del cable0.15 m (0.49 ft.)
DemistaYes

Certificaciones
EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
SeguridadUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005, LOA: IEC/EN 60950-1
AmbienteCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtecciónIP67: IEC 60529-2013,IK10+: IEC 62262:2002
Protección anticorrosivaNEMA 4X (NEMA 250-2018)

Cámara

Sensor de imagen

1/1.8" Progressive Scan CMOS

Max. Resolución

Fisheye view: 3072 × 2048, panorama view: 2400 × 1800

Iluminación mínima

Color: 0.082 Lux @ (F2.4, AGC ON),B/W: 0.016 Lux @ (F2.4, AGC ON),0 Lux with IR

Tiempo de obturación

1 s to 1/100,000 s

Día y Noche

IR cut filter

Lente

Fixed focal lens, 2 mm

Focal Length & FOV

2mm, horizontal FOV 135° (corner mount)

Iris Type

Fixed

Apertura

F2.4

DORI

D: 43.2 m (141.7 ft), O: 17.2 m (56.4 ft), R: 8.6 m (28.2 ft), I: 4.3 m (14.1 ft)

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

Up to 10 m

Luz de suplemento inteligente

Yes

IR Wavelength

940 nm

Vídeo

Main stream

Fisheye view: 50 Hz: 25 fps (3072 × 2048) 60 Hz: 25 fps (3072 × 2048) Panorama view: 50 Hz: 25 fps (2400 × 1800) 60 Hz: 25 fps (2400 × 1800)

Sub-stream

Fisheye view: 50 Hz: 25 fps (1920 × 1080, 720 × 720, 720 × 480) 60 Hz: 25 fps (1920 × 1080, 720 × 720, 720 × 480) Panorama view: 50 Hz: 25 fps (1920 × 1080, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 25 fps (1920 × 1080, 640 × 480, 640 × 360, 320 × 240)

Third Stream

Fisheye view: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Panorama view: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile,Main Profile,High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR,VBR

Codificación de video escalable (SVC)

H.264 and H.265 encoding

Región de interés (ROI)

4 fixed region(s) for main stream and sub-stream

Audio

Tipo de audio

Mono sound

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM

Velocidad de bits de audio

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)

Frecuencia de muestreo de audio

8 kHz/16 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP

Vista en vivo simultánea

Up to 20 channels

API

Open Network Video Interface (PROFILE S, PROFILE G), ISAPI

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Seguridad

Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF

Almacenamiento en red

Support microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR

Cliente

iVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect

Navegador web

IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

saturation,brightness,contrast,sharpness,AGC,adjustable by client software or web browser,white balance

Interruptor día/noche

Day,Night,Auto,Schedule,Alarm Trigger

Wide Dynamic Range (WDR)

120 dB

Mejora de la imagen

BLC,HLC,3D DNR,defog

Máscara de privacidad

4 programmable polygon privacy masks

Superposición de imagen

LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Micrófono incorporado

1 built-in microphone(s)

Audio

1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)

Alarma

1 input, 1 output (max. 24 VDC, 1 A)

RS-485

1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Reset Key

Yes

indicador

Yes

Evento

Evento Básico

Motion detection,video tampering alarm,alarm input and output,network disconnected,IP address conflict,illegal login,HDD full,HDD error

Evento inteligente

Line crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection

General

alimentación

12 VDC ± 20%, 0.9 A, max. 11 W, 2-core terminal block, PoE: 802.3af, Class 0, 36 V to 57 V, 0.3 A to 0.2 A, max. 12 W

Dimensión

213.73 mm × 199.67 mm × 137.57 mm (8.4" × 7.86" × 5.42")

Dimensión del paquete

255 mm × 255 mm × 190 mm (10.04" × 10.04" × 7.48")

Approx. 1.338 kg (2.95 lb.)

Con peso del paquete

Approx. 2.054 kg (4.53 lb.)

Condiciones de almacenaje

-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)

Idioma

32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

Función general

one-key reset,anti-flicker,Heartbeat,mirror,password protection,privacy mask, watermark, IP address filter

Longitud del cable

0.15 m (0.49 ft.)

Demista

Yes

Certificaciones

EMC

FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015

Seguridad

UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005, LOA: IEC/EN 60950-1

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013,IK10+: IEC 62262:2002

Protección anticorrosiva

NEMA 4X (NEMA 250-2018)

Cámara

Sensor de imagen1/1.8" Progressive Scan CMOS
Max. ResoluciónFisheye view: 3072 × 2048, panorama view: 2400 × 1800
Iluminación mínimaColor: 0.082 Lux @ (F2.4, AGC ON),B/W: 0.016 Lux @ (F2.4, AGC ON),0 Lux with IR
Tiempo de obturación1 s to 1/100,000 s
Día y NocheIR cut filter

Lente

LenteFixed focal lens, 2 mm
Focal Length & FOV2mm, horizontal FOV 135° (corner mount)
Iris TypeFixed
AperturaF2.4

DORI

DORID: 43.2 m (141.7 ft), O: 17.2 m (56.4 ft), R: 8.6 m (28.2 ft), I: 4.3 m (14.1 ft)

Iluminador

Tipo de luz suplementariaIR
Rango de luz suplementariaUp to 10 m
Luz de suplemento inteligenteYes
IR Wavelength940 nm

Vídeo

Main streamFisheye view: 50 Hz: 25 fps (3072 × 2048) 60 Hz: 25 fps (3072 × 2048) Panorama view: 50 Hz: 25 fps (2400 × 1800) 60 Hz: 25 fps (2400 × 1800)
Sub-streamFisheye view: 50 Hz: 25 fps (1920 × 1080, 720 × 720, 720 × 480) 60 Hz: 25 fps (1920 × 1080, 720 × 720, 720 × 480) Panorama view: 50 Hz: 25 fps (1920 × 1080, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 25 fps (1920 × 1080, 640 × 480, 640 × 360, 320 × 240)
Third StreamFisheye view: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Panorama view: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile,Main Profile,High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR,VBR
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)4 fixed region(s) for main stream and sub-stream

Audio

Tipo de audioMono sound
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Frecuencia de muestreo de audio8 kHz/16 kHz
Filtro de ruido ambientalYes

Red

ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G), ISAPI
Usuario/operadorUp to 32 users 3 user levels: administrator, operator, and user
SeguridadPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Almacenamiento en redSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
ClienteiVMS-4200,iVMS-4500,iVMS-5200,Hik-Connect
Navegador web IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Imagen

Interruptor de parámetros de imagenYes
Configuración de imagensaturation,brightness,contrast,sharpness,AGC,adjustable by client software or web browser,white balance
Interruptor día/nocheDay,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)120 dB
Mejora de la imagenBLC,HLC,3D DNR,defog
Máscara de privacidad4 programmable polygon privacy masks
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interfaz

Ethernet Interface 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Micrófono incorporado1 built-in microphone(s)
Audio 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
Alarma1 input, 1 output (max. 24 VDC, 1 A)
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
indicadorYes

Evento

Evento BásicoMotion detection,video tampering alarm,alarm input and output,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Evento inteligenteLine crossing detection,intrusion detection,region entrance detection,region exiting detection,unattended baggage detection,object removal detection

General

alimentación12 VDC ± 20%, 0.9 A, max. 11 W, 2-core terminal block, PoE: 802.3af, Class 0, 36 V to 57 V, 0.3 A to 0.2 A, max. 12 W
Dimensión213.73 mm × 199.67 mm × 137.57 mm (8.4" × 7.86" × 5.42")
Dimensión del paquete255 mm × 255 mm × 190 mm (10.04" × 10.04" × 7.48")
Approx. 1.338 kg (2.95 lb.)
Con peso del paquete Approx. 2.054 kg (4.53 lb.)
Condiciones de almacenaje-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
Idioma 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Función generalone-key reset,anti-flicker,Heartbeat,mirror,password protection,privacy mask, watermark, IP address filter
Longitud del cable0.15 m (0.49 ft.)
DemistaYes

Certificaciones

EMCFCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
SeguridadUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005, LOA: IEC/EN 60950-1
AmbienteCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ProtecciónIP67: IEC 60529-2013,IK10+: IEC 62262:2002
Protección anticorrosivaNEMA 4X (NEMA 250-2018)
