DS-2CD63C5G0-I(V)(S)

EOL

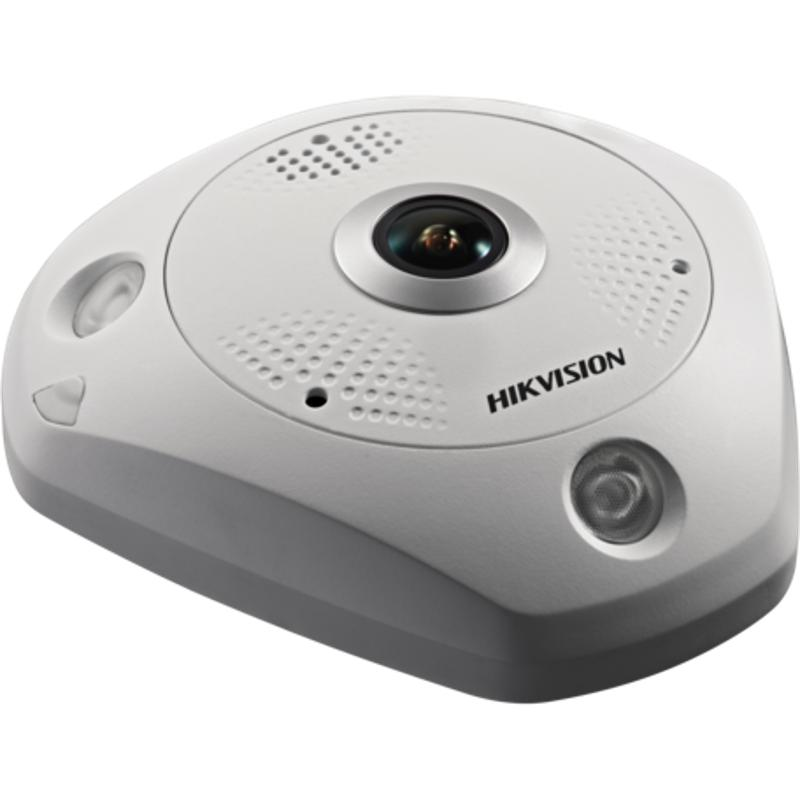

12 MP DeepinView Immervision Lens Fisheye Network Camera

Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
High resolution 12 MP: capturing clear images even when dewarped into 4-image PTZ mode
Each image is clear and detailed

View Less

Modelos disponibles:

DS-2CD63C5G0-IVS(1.29mm)

DS-2CD63C5G0-IS(1.29mm)

DS-2CD63C5G0-IVS(1.29mm)/Retail

Cámara
Sensor de imagen1/1.7″ Progressive Scan CMOS
Max. Resolución4000 × 3000
Iluminación mínimaColor: 0.05 Lux @ (F2.2, AGC ON), B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR
Tiempo de obturación1 s to 1/100,000 s
Día y NocheIR Cut Filter

Lente
Focal Length & FOV1.29 mm, Horizontal FOV: 180°, vertical FOV: 180°
Montura del lenteM12
AperturaF2.2

Iluminador
Tipo de luz suplementaria3 IR LEDs, each LED is independently controlled
Rango de luz suplementariaUp to 15 m
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 20 fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560) 60 Hz: 20 fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)
Sub-stream50 Hz: 20 fps (720 × 720, 640 × 480) 60 Hz: 20 fps (720 × 720, 640 × 480)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/ Main Profile /High Profile
Tipo H.265Main Profile
Codificación de video escalable (SVC)H.265 and H.264 support
Región de interés (ROI)4 fixed regions for main stream

Fisheye Display
Tipo de montajeSupport table, wall, and ceiling mounting
Modo de decodificaciónSupport hardware decoding and software decoding
Modo de visualización18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Audio
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-160 Kbps(MP2L2)
Frecuencia de muestreo de audio8 kHz/16 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Vista en vivo simultáneaUp to 20 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
Usuario/operadorUp to 32 users. 3 user levels, administrator, operator and user
SeguridadPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
Almacenamiento en redMicroSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
ClienteiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200, Hik-Central
Navegador webIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Imagen
Configuración de imagenSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
Interruptor día/nocheDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Wide Dynamic Range (WDR)Digital WDR
Mejora de la imagenBLC, HLC, defog, 3D DNR
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interfaz
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Audio2 built-in microphones, 1 built-in speaker, mono sound -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
Alarma1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
Reset KeyYes

Evento
Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflicted, illegal login, HDD full, HDD error)
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection

Deep Learning Function
Conteo de personasCounts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
Mapa de calorA graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart
Análisis de intersecciónDetects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

General
alimentación12 VDC±20%, 1 A, max. 12.5 W -S model: two-core terminal block Without –S model: Φ 5.5 × 2.1 mm coaxial power plug PoE (802.3at, class 4, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W
DimensiónWithout –V model: 167.4 × 152.8 × 46.8 mm (6. 6" × 6" × 1.8") With –V model: 167 × 152.8 × 55 mm (6. 6" × 6" × 2.2")
Approx. 1400 g (3.09 lbs)
Condiciones de inicio y funcionamiento-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
Función generalOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
CalentadorYes

Certificaciones
ProtecciónIP67, IK10

Especificación

Cámara

Sensor de imagen

1/1.7″ Progressive Scan CMOS

Max. Resolución

4000 × 3000

Iluminación mínima

Color: 0.05 Lux @ (F2.2, AGC ON), B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR

Tiempo de obturación

1 s to 1/100,000 s

Día y Noche

IR Cut Filter

Lente

Focal Length & FOV

1.29 mm, Horizontal FOV: 180°, vertical FOV: 180°

Montura del lente

M12

Apertura

F2.2

Iluminador

Tipo de luz suplementaria

3 IR LEDs, each LED is independently controlled

Rango de luz suplementaria

Up to 15 m

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 20 fps (4000 × 3000), 25fps (3000 × 3000, 2560 × 2560) 60 Hz: 20 fps (4000 × 3000), 30fps (3000 × 3000, 2560 × 2560)

Sub-stream

50 Hz: 20 fps (720 × 720, 640 × 480) 60 Hz: 20 fps (720 × 720, 640 × 480)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile/ Main Profile /High Profile

Tipo H.265

Main Profile

Codificación de video escalable (SVC)

H.265 and H.264 support

Región de interés (ROI)

4 fixed regions for main stream

Fisheye Display

Tipo de montaje

Support table, wall, and ceiling mounting

Modo de decodificación

Support hardware decoding and software decoding

Modo de visualización

18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, hemisphere, AR hemisphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion

Audio

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM

Velocidad de bits de audio

64 Kbps(G.711)/16 Kbps(G.722.1)/16 Kbps(G.726)/32-160 Kbps(MP2L2)

Frecuencia de muestreo de audio

8 kHz/16 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Vista en vivo simultánea

Up to 20 channels

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Usuario/operador

Up to 32 users. 3 user levels, administrator, operator and user

Seguridad

Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF

Almacenamiento en red

MicroSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR

Cliente

iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200, Hik-Central

Navegador web

IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+

Imagen

Configuración de imagen

Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser

Interruptor día/noche

Day/Night/Auto/Schedule/Triggered by Alarm In (-S)

Wide Dynamic Range (WDR)

Digital WDR

Mejora de la imagen

BLC, HLC, defog, 3D DNR

Superposición de imagen

LOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

On-Board Storage

Built-in micro SD/SDHC/SDXC slot, up to 256 GB

Audio

2 built-in microphones, 1 built-in speaker, mono sound -S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)

Alarma

1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A

Reset Key

Yes

Evento

Evento Básico

Motion detection, video tampering alarm, exception (network disconnected, IP address conflicted, illegal login, HDD full, HDD error)

Evento inteligente

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection

Deep Learning Function

Conteo de personas

Counts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height

Mapa de calor

A graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart

Análisis de intersección

Detects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways

General

alimentación

12 VDC±20%, 1 A, max. 12.5 W -S model: two-core terminal block Without –S model: Φ 5.5 × 2.1 mm coaxial power plug PoE (802.3at, class 4, 42.5 to 57 V), 0.4 A to 0.3 A, max. 15 W

Dimensión

Without –V model: 167.4 × 152.8 × 46.8 mm (6. 6" × 6" × 1.8") With –V model: 167 × 152.8 × 55 mm (6. 6" × 6" × 2.2")

Approx. 1400 g (3.09 lbs)

Condiciones de inicio y funcionamiento

-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)

Función general

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Calentador

Yes

Certificaciones

Protección

IP67, IK10
