DS-2XC6685G0

EOL

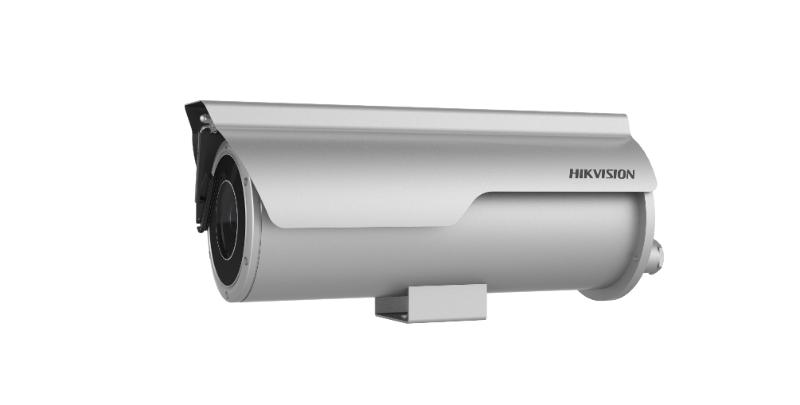

EXIR Motorized Varifocal Bullet Anti-Corrosion Network Camera

316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras
A built-in wiper removes water and dust on the screen and ensures clear images when the camera is used in dusty or damp environments
IP67 water resistant, preventing water ingress for outdoor use
H.265+/H.265/H.264+/H.264 encoding: efficient compression technology saves storage space and reduces bandwidth requirements

View Less

Modelos disponibles:

DS-2XC6685G0-IZHRS(2.8-12mm)

DS-2XC6685G0-IZHRS(8-32mm)

Cámara
Sensor de imagen1/2″ Progressive Scan CMOS
Max. Resolución3840 × 2160
Iluminación mínimaColor: 0.002 Lux @(F1.2, AGC ON) B/W: 0.0002 Lux @(F1.2, AGC ON), 0 Lux with IR
Tiempo de obturación1/3 s to 1/100,000 s
Día y NocheIR cut filter

Lente
LenteMotorized focal length, 2.8 to 12 mm, 8 to 32 mm
Focal Length & FOV2.8 to 12 mm, F1.4: horizontal field of view, 94.8° to 38.2° 8 to 32 mm, F1.4: horizontal field of view, 41.8° to 14.9°
EnfoqueAuto, semi-auto, manual

Iluminador
Rango de luz suplementaria2.8~12 mm: 80 m, 8~32 mm: 150 m
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520, 1920 × 1080, 1280 × 720） 60 Hz: 20fps (3840 × 2160, 3072 × 1728), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Vídeo bitrate32 Kbps~8Mbps
Tipo H.264BaseLine Profile/Main Profile/High Profile
Tipo H.265Main Profile
Bit Rate ControlCBR, VBR
Codificación de video escalable (SVC)H.265 and H.264 support
Región de interés (ROI)1 fixed regions for main stream and sub-stream
Recorte objetivoYes

Audio
Tipo de audioMono sound
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface, ISAPI, SDK, Ehome
Usuario/operadorUp to 32 users. 3 user levels: administrator, operator and user
Almacenamiento en redMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect, Hik-Central
Navegador webPlug-in required live view: IE8+, Chrome41.0~44, Firefox30.0~51, Safari8.0~11 Plug-in free live view: Chrome45.0+, Firefox52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)120 dB
SNR≥ 50 dB
Mejora de la imagenBLC, HLC, 3D DNR, Defog, EIS
Máscara de privacidadYes

Interfaz
Salida de Vídeo1Vp-p composite output (75 Ω/BNC)
Ethernet InterfaceRJ45 10M/100M self-adaptive Ethernet port
On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Alarma1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA)
Reset KeyYes

Evento
Evento BásicoException (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, defocus detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

General
alimentación24 VAC± 20%, 1.7A, 50/60 Hz, 40 W PoE: 802.3at, 42.5 V to 57 V, 0.57 A to 0.43 A, Max: 24 W
Dimensión179.9 mm × 203.2 mm × 472 mm (7.08" × 8" × 18.58")
10.95 kg (24.14 lb.)
Condiciones de inicio y funcionamiento-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)
Función generalAnti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Certificaciones
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SeguridadUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Ambiente2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtecciónIP67
Protección anticorrosivaNEMA 4X C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.

Especificación

Cámara

Sensor de imagen

1/2″ Progressive Scan CMOS

Max. Resolución

3840 × 2160

Iluminación mínima

Color: 0.002 Lux @(F1.2, AGC ON) B/W: 0.0002 Lux @(F1.2, AGC ON), 0 Lux with IR

Tiempo de obturación

1/3 s to 1/100,000 s

Día y Noche

IR cut filter

Lente

Motorized focal length, 2.8 to 12 mm, 8 to 32 mm

Focal Length & FOV

2.8 to 12 mm, F1.4: horizontal field of view, 94.8° to 38.2° 8 to 32 mm, F1.4: horizontal field of view, 41.8° to 14.9°

Enfoque

Auto, semi-auto, manual

Iluminador

Rango de luz suplementaria

2.8~12 mm: 80 m, 8~32 mm: 150 m

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520, 1920 × 1080, 1280 × 720） 60 Hz: 20fps (3840 × 2160, 3072 × 1728), 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264

Vídeo bitrate

32 Kbps~8Mbps

Tipo H.264

BaseLine Profile/Main Profile/High Profile

Tipo H.265

Main Profile

Bit Rate Control

CBR, VBR

Codificación de video escalable (SVC)

H.265 and H.264 support

Región de interés (ROI)

1 fixed regions for main stream and sub-stream

Recorte objetivo

Yes

Audio

Tipo de audio

Mono sound

Compresión de audio

G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3

Velocidad de bits de audio

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

Frecuencia de muestreo de audio

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Filtro de ruido ambiental

Yes

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface, ISAPI, SDK, Ehome

Usuario/operador

Up to 32 users. 3 user levels: administrator, operator and user

Almacenamiento en red

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Cliente

iVMS-4200, Hik-Connect, Hik-Central

Navegador web

Plug-in required live view: IE8+, Chrome41.0~44, Firefox30.0~51, Safari8.0~11 Plug-in free live view: Chrome45.0+, Firefox52.0+ Local service: Chrome 57.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge

Imagen

Interruptor de parámetros de imagen

Yes

Configuración de imagen

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Interruptor día/noche

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

≥ 50 dB

Mejora de la imagen

BLC, HLC, 3D DNR, Defog, EIS

Máscara de privacidad

Yes

Interfaz

Salida de Vídeo

1Vp-p composite output (75 Ω/BNC)

Ethernet Interface

RJ45 10M/100M self-adaptive Ethernet port

On-Board Storage

Built-in microSD/SDHC/SDXC slot, up to 256 GB *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.

Alarma

1 input, 1 output (max. 24 VDC, 1 A or 110 VAC, 500 mA)

Reset Key

Yes

Evento

Evento Básico

Exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Evento inteligente

Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, defocus detection

Linkage

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

General

alimentación

24 VAC± 20%, 1.7A, 50/60 Hz, 40 W PoE: 802.3at, 42.5 V to 57 V, 0.57 A to 0.43 A, Max: 24 W

Dimensión

179.9 mm × 203.2 mm × 472 mm (7.08" × 8" × 18.58")

10.95 kg (24.14 lb.)

Condiciones de inicio y funcionamiento

-40 °C to +60 °C (-40 °F to +140 °F), Humidity 95% or less (non-condensing)

Función general

Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Certificaciones

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Seguridad

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Ambiente

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protección

IP67

Protección anticorrosiva

NEMA 4X C5-M: 720H neutral salt spray, 480H water condensation; Exterior environments: industrial areas with high humidity and aggressive atmosphere and coastal areas with high salinity; Interior environments: buildings or areas with almost permanent condensation and with high pollution.
