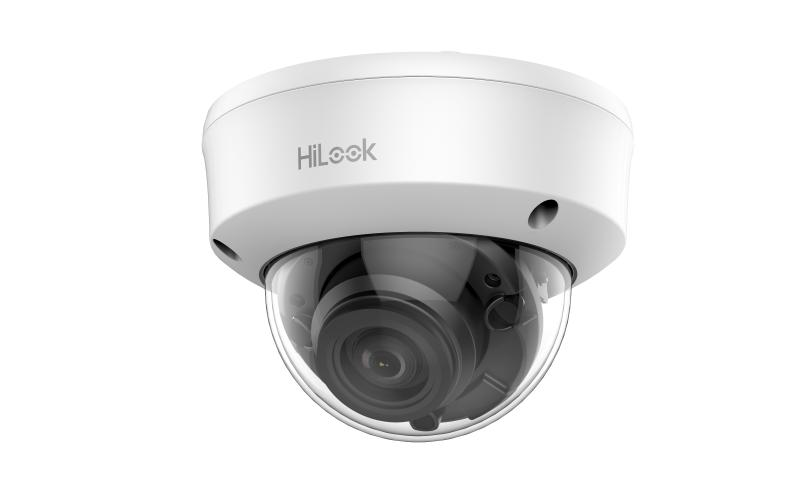

4 MP Manual Varifocal Dome Camera

  • 4 MP vari-focal dome camera
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • Water and dust resistant (IP66)
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Especificación
  • Cámara
  • Lente2.8 mm to 12 mm
  • Horizontal Field of View108.4° to 32.6°
  • Montura del lenteΦ14
  • Día y NocheIR cut filter
  • SynchronizationInternal synchronization
  • Ajuste de ánguloPan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
  • Sensor de imagen2 MP CMOS image sensor
  • Señal del sistemaPAL/NTSC
  • Frame RatePAL: 4 MP@25fps, 1080p@25fps NTSC: 4 MP@30fps, 1080p@30fps
  • Resolución2560 (H) × 1440 (V)
  • Min. illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Tiempo de obturación1/25 (1/30) s to 1/50,000 s
  • Menú
  • AGCHigh/Medium/Low/Off
  • Modo día/nocheAuto/Color/BW (Black and White)
  • Backlight CompensationSupport
  • DWDR (Digital Wide Dynamic Range)Support
  • IdiomaEnglish
  • FunctionsBrightness, Sharpness, DNR, Mirror, Smart IR
  • Interfaz
  • Salida de Vídeo1 HD analog output
  • Switch ButtonTVI/AHD/CVI/CVBS
  • General
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
  • Fuente de alimentación12 VDC ± 15%
  • Consumo de energíaMax. 4 W
  • MaterialMetal
  • Rango IRUp to 40 m
  • DimensionesØ 143 mm × 106.7 mm ( Ø 5.62" × 4.19")
  • 630 g (1.39 lb.)
  • Protección de ingresoIP66,IK10
Especificación
