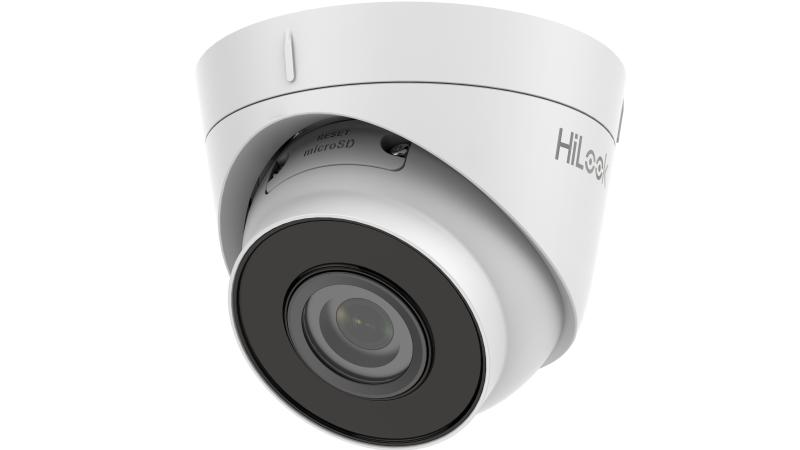

IPC-T241H-F

4 MP Fixed Turret Network Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to DWDR technology
Water and dust resistant (IP67)
Built-in micro SD card slot with up to 256 GB for storage
Easy installation with Power over Ethernet (PoE) technology

View Less

Cámara
Sensor de imagen1/3" Progressive Scan CMOS
Iluminación mínimaColor: 0.028 Lux @ (F2.0, AGC ON)
Velocidad de obturación1/3 s to 1/100,000 s
Obturador lentoYes
Día y nocheIR Cut Filter
Wide dynamic rangeDigital WDR
Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lente
LenteFixed lens, 2.8/4 mm
AperturaF2.0
FOV2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
Montura del lenteM12

Iluminador
Rango IRUp to 30 m
Longitud de onda850nm

Red
Almacenamiento en redmicroSD/SDHC/SDXC card (256GB) (supports image and logs storage only), local storage and ANR
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
APIONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Vista en vivo simultáneaPassword protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)
Usuario/operadorUp to 6 channels
ClienteHiLookVision PC Client, HiLookVision App
Navegador webUp to 32 users,3 levels: Administrator, Operator and User

Vídeo
Max. Resolución2560 × 1440
Main stream50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 20fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
Compresión de vídeoMain stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Tipo H.264Baseline Profile/Main Profile
Tipo H.265Main Profile
H.264 +Main stream supports
H.265 +Main stream supports
Vídeo bitrate32 Kbps to 8 Mbps

Conjunto de funciones inteligentes
Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Región de interés1 fixed region for main stream
Método de enlaceUpload to FTP/memory card, notify surveillance center, send email

Imagen
Mejora de la imagenBLC, HLC, 3D DNR
Ajuste de imagenSaturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Interruptor día/nocheDay/Night/Auto/Schedule
S/N Ratio> 50dB

Interfaz
Interfaz de comunicación1 RJ45 10M/100M self-adaptive Ethernet port
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 256GB (supports image and logs storage only)

General
Función generalAnti-flicker, heartbeat, mirror, privacy mask, flash log
ReiniciarReset via reset button on camera body, web browser and client software
Condiciones de inicio y funcionamiento-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Fuente de alimentación12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)
Consumo de energía y corriente12 VDC, 0.38 A, max. 4.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 5.5 W
MaterialCamera body: metal, bottom base: plastic
DimensionesCamera: Φ110 mm × 94.4 mm (Φ4.3" × 3.7") With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Camera: approx. 365 g (0.8 lb.) With package: approx. 626 g (1.4 lb.)

Certificaciones
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SeguridadUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1
Química2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtecciónIngress protection: IP67 (IEC 60529-2013)

Especificación

Cámara

Sensor de imagen

1/3" Progressive Scan CMOS

Iluminación mínima

Color: 0.028 Lux @ (F2.0, AGC ON)

Velocidad de obturación

1/3 s to 1/100,000 s

Obturador lento

Yes

Día y noche

IR Cut Filter

Wide dynamic range

Digital WDR

Ajuste de ángulo

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lente

Fixed lens, 2.8/4 mm

Apertura

F2.0

FOV

2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117° 4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°

Montura del lente

M12

Iluminador

Rango IR

Up to 30 m

Longitud de onda

850nm

Red

Almacenamiento en red

microSD/SDHC/SDXC card (256GB) (supports image and logs storage only), local storage and ANR

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

API

ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Vista en vivo simultánea

Password protection, complicated password, IP address filter, Watermark, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, 802.1X authentication (EAP-MD5)

Usuario/operador

Up to 6 channels

Cliente

HiLookVision PC Client, HiLookVision App

Navegador web

Up to 32 users,3 levels: Administrator, Operator and User

Vídeo

Max. Resolución

2560 × 1440

Main stream

50Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 20fps (2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)

Sub Stream

50Hz: 20fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)

Compresión de vídeo

Main stream: H.265+/H.264+/H.265/H.264 Sub-stream: H.265/H.264/MJPEG

Tipo H.264

Baseline Profile/Main Profile

Tipo H.265

Main Profile

H.264 +

Main stream supports

H.265 +

Main stream supports

Vídeo bitrate

32 Kbps to 8 Mbps

Conjunto de funciones inteligentes

Evento Básico

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Región de interés

1 fixed region for main stream

Método de enlace

Upload to FTP/memory card, notify surveillance center, send email

Imagen

Mejora de la imagen

BLC, HLC, 3D DNR

Ajuste de imagen

Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Interruptor día/noche

Day/Night/Auto/Schedule

S/N Ratio

> 50dB

Interfaz

Interfaz de comunicación

1 RJ45 10M/100M self-adaptive Ethernet port

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 256GB (supports image and logs storage only)

General

Función general

Anti-flicker, heartbeat, mirror, privacy mask, flash log

Reiniciar

Reset via reset button on camera body, web browser and client software

Condiciones de inicio y funcionamiento

-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Fuente de alimentación

12 VDC ± 25%, Φ 5.5 mm coaxial power plug, reverse polarity protection; PoE (802.3af, class 3)

Consumo de energía y corriente

12 VDC, 0.38 A, max. 4.5 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 5.5 W

Material

Camera body: metal, bottom base: plastic

Dimensiones

Camera: Φ110 mm × 94.4 mm (Φ4.3" × 3.7") With package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")

Camera: approx. 365 g (0.8 lb.) With package: approx. 626 g (1.4 lb.)

Certificaciones

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Seguridad

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015, IEC/EN 60950-1

Química

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protección

Ingress protection: IP67 (IEC 60529-2013)
