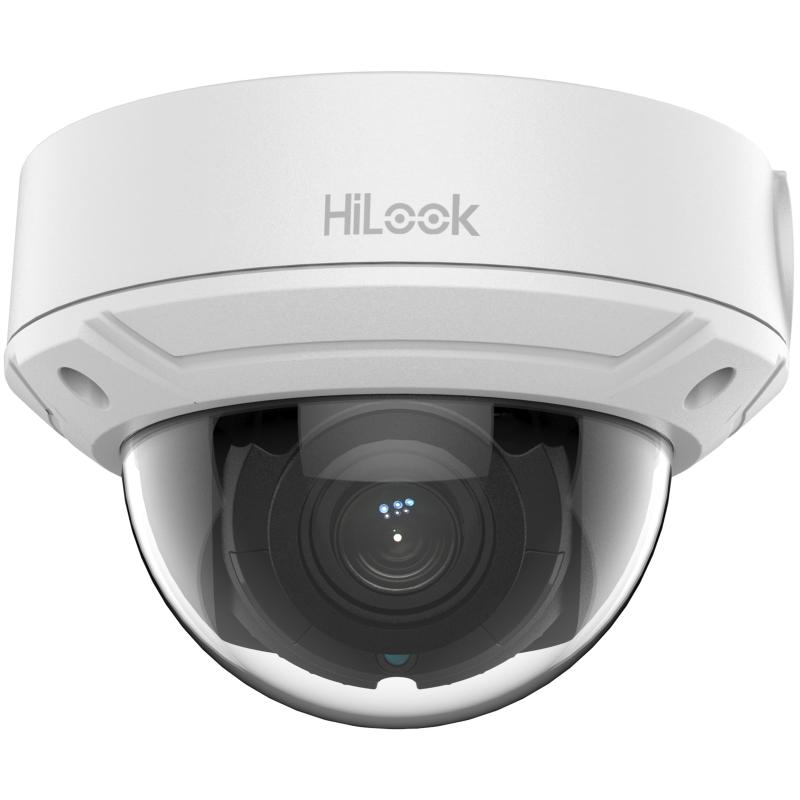

5 MP Varifocal Dome Network Camera

High quality imaging with 5 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized varifocal lens for easy installation and monitoring

View Less

Modelos disponibles:

IPC-D650H-Z(2.8-12mm)(C)(HiLookSTD)

IPC-D650H-Z

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/2.7" progressive scan CMOS
Max. Resolución2560 × 1920
Iluminación mínimaColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Velocidad de obturación1/3 s to 1/100,000 s
Día y NocheIR cut filter
Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°

Lente
LenteVarifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37°
Montura del lenteØ14
Iris TypeFixed
AperturaF1.6

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementariaUp to 30 m
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Compresión de videoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate32 Kbps to 16 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Main profile
Región de interés (ROI)1 fixed region for main stream

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Vista en vivo simultáneaUp to 6 channels
APIOpen Network Video Interface, ISAPI
Usuario/operadorUp to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user
ClienteiVMS-4200, Hik-Connect
Navegador webPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen
Configuración de imagenSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Interruptor día/nocheAuto, Schedule, Day, Night
Wide Dynamic Range (WDR)120 dB
Mejora de la imagenBLC, 3D DNR

Interfaz
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Reset KeyYes

Evento
Evento BásicoMotion detection, video tampering alarm, exception
LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General
alimentación12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
DimensiónØ141 mm × 99.9 mm (Ø5.6" × 3.9")
Dimensión del paquete140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
Approx. 810 g (1.8 lb.)
Con peso del paqueteApprox. 1100 g (2.4 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
IdiomaEnglish, Ukrainian
Función generalAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Certificaciones
EMCFCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015
SeguridadUL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005
AmbienteCE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
ProtecciónIP67: IEC 60529-2013, IK10: IEC 62262:2002

Cámara

Sensor de imagen

1/2.7" progressive scan CMOS

Max. Resolución

2560 × 1920

Iluminación mínima

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Velocidad de obturación

1/3 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°

Lente

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm: horizontal FOV 96° to 29°, vertical FOV 69° to 22°, diagonal FOV 131° to 37°

Montura del lente

Ø14

Iris Type

Fixed

Apertura

F1.6

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

Up to 30 m

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 20 fps (2560 × 1920) 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1920) 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 16 Mbps

Tipo H.264

Baseline Profile/Main Profile/High Profile

Tipo H.265

Main profile

Región de interés (ROI)

1 fixed region for main stream

Red

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface, ISAPI

Usuario/operador

Up to 32 users. 3 levels: administrator, operator and user 3 user levels: administrator, operator, and user

Cliente

iVMS-4200, Hik-Connect

Navegador web

Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Imagen

Configuración de imagen

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Interruptor día/noche

Auto, Schedule, Day, Night

Wide Dynamic Range (WDR)

120 dB

Mejora de la imagen

BLC, 3D DNR

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD card, up to 256 GB

Reset Key

Yes

Evento

Evento Básico

Motion detection, video tampering alarm, exception

Linkage

Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

General

alimentación

12 VDC ± 25%, 0.8 A, max. 10 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W

Dimensión

Ø141 mm × 99.9 mm (Ø5.6" × 3.9")

Dimensión del paquete

140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")

Approx. 810 g (1.8 lb.)

Con peso del paquete

Approx. 1100 g (2.4 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

English, Ukrainian

Función general

Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Certificaciones

EMC

FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 7; KC: KN 32: 2015, KN 35: 2015

Seguridad

UL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252(Part 1):2010/ IEC 60950-1: 2005

Ambiente

CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013, IK10: IEC 62262:2002
