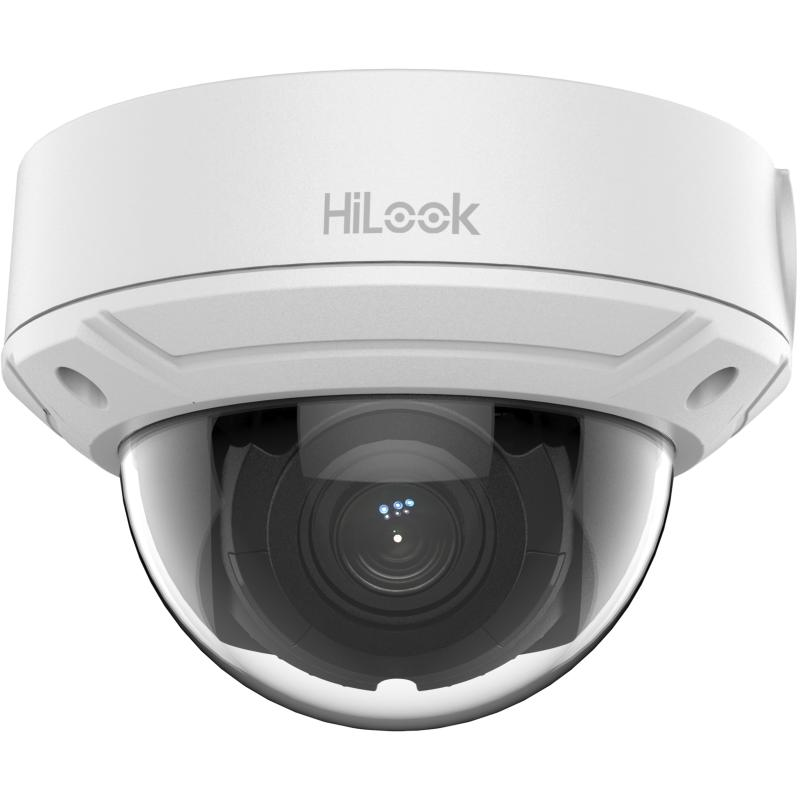

2 MP MD 2.0 Varifocal Dome Network Camera

High quality imaging with 2 MP resolution
Support Human and Vehicle Detection
2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
Up to 256 GB SD card slot for storage
Water and dust resistant (IP67), vandal proof (IK10)
EXIR 2.0: advanced infrared technology with long IR range
Clear imaging even with strong back lighting due to DWDR technology
Efficient H.265+ compression technology

View Less

Ficha Técnica

Modelos disponibles:

IPC-D620HA-Z(2.8-12mm)(HiLookSTD)

IPC-D620HA-Z

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen 1/2.9" Progressive Scan CMOS
Max. Resolución 1920 × 1080
Iluminación mínima Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Tiempo de obturación 1/3 s to 1/100,000 s
Día y Noche IR cut filter
Ajuste de ángulo Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°

Lente
Lente Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°
Montura del lente Ø14
Iris Type Fixed
Apertura F1.6

Iluminador
Tipo de luz suplementaria IR
Rango de luz suplementaria Up to 30 m
Luz de suplemento inteligente Yes
IR Wavelength 850 nm

Vídeo
Main stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Compresión de video Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
Vídeo bitrate 32 Kbps to 8 Mbps
Tipo H.264 Baseline Profile,Main Profile,High Profile
Tipo H.265 Main Profile
Región de interés (ROI) 1 fixed region(s) for main stream

Red
Protocolos TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Vista en vivo simultánea Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
Seguridad Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Usuario/operador Up to 32 users 3 user levels: administrator, operator, and user
Cliente iVMS-4200,HiLookVision
Navegador web Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Imagen
Configuración de imagen Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Interruptor día/noche Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) Digital WDR
Mejora de la imagen BLC,HLC,3D DNR

Interfaz
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Reset Key Yes

Evento
Evento Básico Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

General
alimentación 12 VDC ± 25%, 0.8 A, max. 9.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W
Material Metal
Dimensión Ø141 mm × 99.9 mm (Ø5.6" × 3.9")
Dimensión del paquete 140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")
Approx. 820 g (1.8 lb.)
Con peso del paquete Approx. 1200 g (2.6 lb.)
Condiciones de almacenaje -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Idioma English, Ukrainian
Función general Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark

Certificaciones
EMC FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
Seguridad CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Ambiente CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protección IP67: IEC 60529-2013,IK10: IEC 62262:2002

Cámara

Sensor de imagen

1/2.9" Progressive Scan CMOS

Max. Resolución

1920 × 1080

Iluminación mínima

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Tiempo de obturación

1/3 s to 1/100,000 s

Día y Noche

IR cut filter

Ajuste de ángulo

Pan: 0° to 355°,tilt: 0° to 70°,rotate: 0° to 355°

Lente

Varifocal lens, motorized lens, 2.8 to 12 mm

Focal Length & FOV

2.8 to 12 mm, horizontal FOV 102.4° to 31.2°, vertical FOV 54.4° to 17.5°, diagonal FOV 121.8° to 35.7°

Montura del lente

Ø14

Iris Type

Fixed

Apertura

F1.6

Iluminador

Tipo de luz suplementaria

Rango de luz suplementaria

Up to 30 m

Luz de suplemento inteligente

Yes

IR Wavelength

850 nm

Vídeo

Main stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-stream

50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)

Compresión de video

Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG

Vídeo bitrate

32 Kbps to 8 Mbps

Tipo H.264

Baseline Profile,Main Profile,High Profile

Tipo H.265

Main Profile

Región de interés (ROI)

1 fixed region(s) for main stream

Red

Protocolos

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Vista en vivo simultánea

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK

Seguridad

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Usuario/operador

Up to 32 users 3 user levels: administrator, operator, and user

Cliente

iVMS-4200,HiLookVision

Navegador web

Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+

Imagen

Configuración de imagen

Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Interruptor día/noche

Day,Night,Auto,Schedule

Wide Dynamic Range (WDR)

Digital WDR

Mejora de la imagen

BLC,HLC,3D DNR

Interfaz

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB

Reset Key

Yes

Evento

Evento Básico

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

Linkage

Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture

General

alimentación

12 VDC ± 25%, 0.8 A, max. 9.6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.32 A to 0.2 A, max. 11.5 W

Material

Metal

Dimensión

Ø141 mm × 99.9 mm (Ø5.6" × 3.9")

Dimensión del paquete

140 mm × 140 mm × 154 mm (5.5" × 5.5" × 6.1")

Approx. 820 g (1.8 lb.)

Con peso del paquete

Approx. 1200 g (2.6 lb.)

Condiciones de almacenaje

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Idioma

English, Ukrainian

Función general

Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark

Certificaciones

EMC

FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Seguridad

CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017

Ambiente

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006

Protección

IP67: IEC 60529-2013,IK10: IEC 62262:2002
