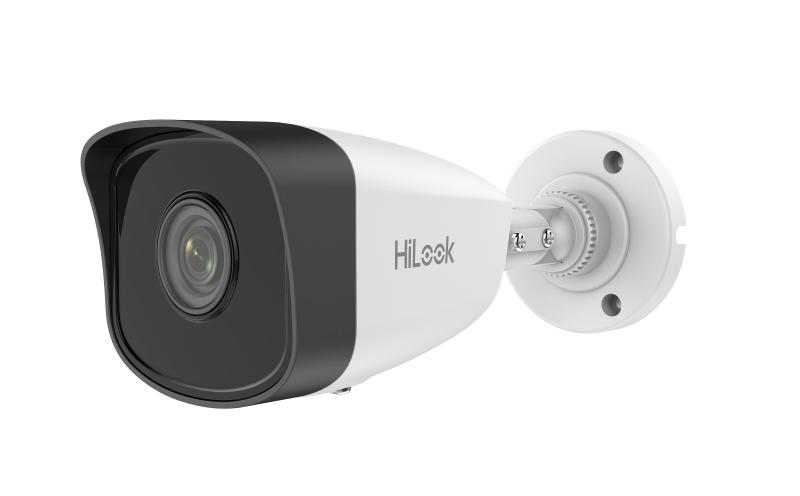

IPC-B120H-F

2 MP Fixed Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light by DWDR technology
Water and dust resistant (IP67)
Built-in micro SD/SDHC/SDXC slot, up to 128 GB (supports image and logs storage only).

View Less

Cámara
Sensor de imagen1/2.8" Progressive Scan CMOS
Iluminación mínimaColor: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Velocidad de obturación1/3 s to 1/100,000 s
Obturador lentoYes
Día y nocheIR cut filter
Wide dynamic rangeDigital WDR
Ajuste de ánguloPan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lente
LenteFixed lens, 2.8/4 mm
AperturaF2.0
FOV2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
Montura del lenteM12

Iluminador
Rango IRUp to 30 m
Longitud de onda850 nm

Red
Almacenamiento en redmicroSD/SDHC/SDXC card (128 GB) (supports image and logs storage only), local storage
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
APIONVIF (PROFILE S, PROFILE G), ISAPI
Vista en vivo simultáneaUp to 6 channels
Usuario/operadorUp to 32 users,3 levels: Administrator, Operator and User
ClienteHiLookVision PC Client, HiLookVision App
Navegador webIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Vídeo
Max. Resolución1920 × 1080
Main stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Compresión de vídeoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Tipo H.264Baseline Profile/Main Profile/High Profile
H.264 +Main stream supports
Tipo H.265Main Profile
Vídeo bitrate32 Kbps to 8 Mbps
H.265 +Main stream supports

Conjunto de funciones inteligentes
Evento BásicoMotion detection, video tampering alarm, exception (illegal login, HDD full, HDD error)
Método de enlaceUpload to FTP/memory card, notify surveillance center, send email, trigger capture
Región de interés1 fixed region for main stream and sub-stream

Imagen
Mejora de la imagenBLC, 3D DNR
Ajuste de imagenRotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser
Interruptor día/nocheDay/Night/Auto/Schedule

Interfaz
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB (supports image and logs storage only)
Interfaz de comunicación1 RJ45 self-adaptive Ethernet port

General
Versión del firmware5.5.83
Función generalOne-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
ReiniciarReset via web browser and client software
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Fuente de alimentación12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)
Consumo de energía y corriente12 VDC, 0.3 A, max.3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.0 W
MaterialFront cover: metal, back cover : plastic
DimensionesCamera: 71.4 × 67.2 × 186.4 mm (2.8" × 2.6" × 7.3") ;With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")
Camera: Approx. 270 g (0.6 lb.) With package: Approx. 470 g (1 lb.)

Certificaciones
EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
SeguridadUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC/EN 60950-1
Química2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
ProtecciónIngress protection: IP67 (IEC 60529-2013)

Especificación

Cámara

Sensor de imagen

1/2.8" Progressive Scan CMOS

Iluminación mínima

Color: 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Velocidad de obturación

1/3 s to 1/100,000 s

Obturador lento

Yes

Día y noche

IR cut filter

Wide dynamic range

Digital WDR

Ajuste de ángulo

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lente

Fixed lens, 2.8/4 mm

Apertura

F2.0

FOV

2.8mm: Horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135° 4 mm: Horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°

Montura del lente

M12

Iluminador

Rango IR

Up to 30 m

Longitud de onda

850 nm

Red

Almacenamiento en red

microSD/SDHC/SDXC card (128 GB) (supports image and logs storage only), local storage

Protocolos

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP

API

ONVIF (PROFILE S, PROFILE G), ISAPI

Vista en vivo simultánea

Up to 6 channels

Usuario/operador

Up to 32 users,3 levels: Administrator, Operator and User

Cliente

HiLookVision PC Client, HiLookVision App

Navegador web

IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11

Vídeo

Max. Resolución

1920 × 1080

Main stream

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Compresión de vídeo

Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG

Tipo H.264

Baseline Profile/Main Profile/High Profile

H.264 +

Main stream supports

Tipo H.265

Main Profile

Vídeo bitrate

32 Kbps to 8 Mbps

H.265 +

Main stream supports

Conjunto de funciones inteligentes

Evento Básico

Motion detection, video tampering alarm, exception (illegal login, HDD full, HDD error)

Método de enlace

Upload to FTP/memory card, notify surveillance center, send email, trigger capture

Región de interés

1 fixed region for main stream and sub-stream

Imagen

Mejora de la imagen

BLC, 3D DNR

Ajuste de imagen

Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Interruptor día/noche

Day/Night/Auto/Schedule

Interfaz

On-board storage

Built-in micro SD/SDHC/SDXC slot, up to 128 GB (supports image and logs storage only)

Interfaz de comunicación

1 RJ45 self-adaptive Ethernet port

General

Versión del firmware

5.5.83

Función general

One-key reset, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Reiniciar

Reset via web browser and client software

Condiciones de inicio y funcionamiento

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Fuente de alimentación

12 VDC ± 25%, Φ 5.5 mm coaxial power plug; PoE (802.3af, class 0)

Consumo de energía y corriente

12 VDC, 0.3 A, max.3.6 W; PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 4.0 W

Material

Front cover: metal, back cover : plastic

Dimensiones

Camera: 71.4 × 67.2 × 186.4 mm (2.8" × 2.6" × 7.3") ;With package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.6")

Camera: Approx. 270 g (0.6 lb.) With package: Approx. 470 g (1 lb.)

Certificaciones

EMC

47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Seguridad

UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC/EN 60950-1

Química

2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006

Protección

Ingress protection: IP67 (IEC 60529-2013)
