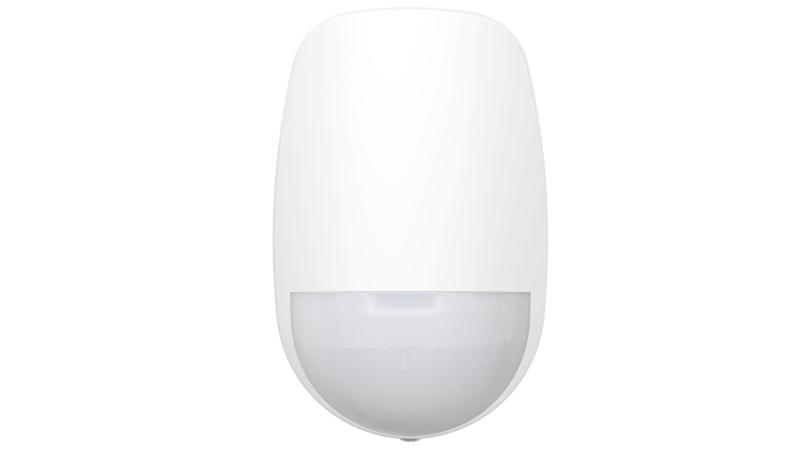

Wireless PIR Detector

  • Detection Range: 15m / 85.9°
  • Up to 30KG pet immunity
  • SEC (Smart Environmental Control) - Advanced digital signal processing and 3D optics
  • Fully remote configurable through App
  • Multiple enrollment method and easy installation design
  • Easy replaceable battery with PCB protected
  • Frequency hopping against jamming for reliable transmission
View Less
View more
Ficha Técnica
Sales Inquiry
DS-PDP15P-EG2-WB
Ficha Técnica

Especificación

  • Detection Performance
  • Detection MethodPassive Infrared
  • Rango de detección15m
  • Detection Angle85.9°
  • Detection Zones52
  • Detectable Speed0.3～2m/s
  • SensibilidadHigh;Auto;Pet
  • Inmunidad a mascotas30Kg
  • White Light Filter6500lux
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
  • Característica
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Interfaz
  • Interruptor de alimentaciónPower Up Enrolling
  • Indicador LEDBlue(Alarm)
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Frecuencia de transmisión433MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.2Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery LifeUp to 5 years (standby time)
  • Fuente de alimentaciónBattery Powered
  • Tipo de bateríaCR123A × 1
  • Typical Voltage3V
  • General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Temperatura de almacenamiento-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)65.5mm × 103mm × 48.5mm
  • 128g
  • Mounting Height1.8 to 2.4m
  • Mounting MethodWall
  • Escenarios de aplicaciónIndoor
  • soporteOptional Wall & Ceiling Accessory
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Detection Performance
Detection Method
Passive Infrared
Rango de detección
15m
Detection Angle
85.9°
Detection Zones
52
Detectable Speed
0.3～2m/s
Sensibilidad
High;Auto;Pet
Inmunidad a mascotas
30Kg
White Light Filter
6500lux
Digital Temperature Compensation
Support
Creep Zone Protection
Support
Característica
Digital Processing
Support
Sealed Optics
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interfaz
Interruptor de alimentación
Power Up Enrolling
Indicador LED
Blue(Alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Frecuencia de transmisión
433MHz
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1.2Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 5 years (standby time)
Fuente de alimentación
Battery Powered
Tipo de batería
CR123A × 1
Typical Voltage
3V
General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Temperatura de almacenamiento
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
65.5mm × 103mm × 48.5mm
128g
Mounting Height
1.8 to 2.4m
Mounting Method
Wall
Escenarios de aplicación
Indoor
soporte
Optional Wall & Ceiling Accessory
Para una mejor experiencia de usuario, le recomendamos encarecidamente que actualice su dispositivo al más reciente firmware lo antes posible.
Especificación
Detection Performance
  • Detection MethodPassive Infrared
  • Rango de detección15m
  • Detection Angle85.9°
  • Detection Zones52
  • Detectable Speed0.3～2m/s
  • SensibilidadHigh;Auto;Pet
  • Inmunidad a mascotas30Kg
  • White Light Filter6500lux
  • Digital Temperature CompensationSupport
  • Creep Zone ProtectionSupport
Característica
  • Digital ProcessingSupport
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
Interfaz
  • Interruptor de alimentaciónPower Up Enrolling
  • Indicador LEDBlue(Alarm)
Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Frecuencia de transmisión433MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.2Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
Electrical Characteristics
  • Standard Battery LifeUp to 5 years (standby time)
  • Fuente de alimentaciónBattery Powered
  • Tipo de bateríaCR123A × 1
  • Typical Voltage3V
General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Temperatura de almacenamiento-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)65.5mm × 103mm × 48.5mm
  • 128g
  • Mounting Height1.8 to 2.4m
  • Mounting MethodWall
  • Escenarios de aplicaciónIndoor
  • soporteOptional Wall & Ceiling Accessory
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
