DS-PDMCS-EG2-WB

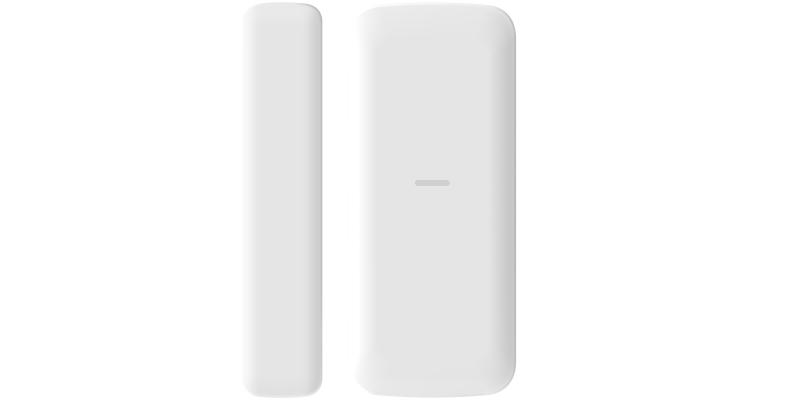

Wireless Slim Magnet Detector

  • Slim design for an unobtrusive (unnoticeable) installation
  • Fully remote configurable through App
  • Multiple enrollment methods and easy installation design
  • Frequency hopping against jamming for reliable transmission
View Less
View more
Ficha Técnica
Sales Inquiry

Modelos disponibles:

DS-PDMCS-EG2-WB
DS-PDMCS-EG2-WB
Ficha Técnica

Especificación

  • Detection Performance
  • Detection MethodOpening Contact
  • Detection Gap52mm Max
  • Característica
  • Digital ProcessingSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Interfaz
  • Interruptor de alimentaciónPower Up Enrolling
  • Indicador LEDBlue (Alarm)
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Frecuencia de transmisión433MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery LifeUp to 3 years (standby time)
  • Fuente de alimentaciónBattery Powered
  • Tipo de bateríaCR2450 x 1
  • Typical Voltage3V
  • General
  • Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Temperatura de almacenamiento-20 °C to 60 °C (-4 °F to 140 °F)
  • Operation Humidity10% to 90%
  • Dimension(WxHxD)29mm × 69mm × 10mm 14mm × 69mm × 10mm
  • 38g
  • Mounting MethodWall-mount(The device only supports wooden structure installation and cannot be installed on metal surface)
  • Escenarios de aplicaciónIndoor
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Especificación

Detection Performance
Detection Method
Opening Contact
Detection Gap
52mm Max
Característica
Digital Processing
Support
Tamper Protection
Front;Rear
Environment Temperature Indicator
Support
Signal Strength Indicator
Support
Interfaz
Interruptor de alimentación
Power Up Enrolling
Indicador LED
Blue (Alarm)
Transmission
Transmission Technology
Tri-X Wireless
Transmission Method
Two-Way RF Wireless
Frecuencia de transmisión
433MHz
Transmission Security
AES-128 Encryption
Transmission Range(Free Space)
1Km
Frequency Hopping
Support
Enrolling Method
Power up;Remote ID;QR Code
Electrical Characteristics
Standard Battery Life
Up to 3 years (standby time)
Fuente de alimentación
Battery Powered
Tipo de batería
CR2450 x 1
Typical Voltage
3V
General
Operation Temperature
-10 °C to 55 °C (14 °F to 131 °F)
Temperatura de almacenamiento
-20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity
10% to 90%
Dimension(WxHxD)
29mm × 69mm × 10mm 14mm × 69mm × 10mm
38g
Mounting Method
Wall-mount(The device only supports wooden structure installation and cannot be installed on metal surface)
Escenarios de aplicación
Indoor
