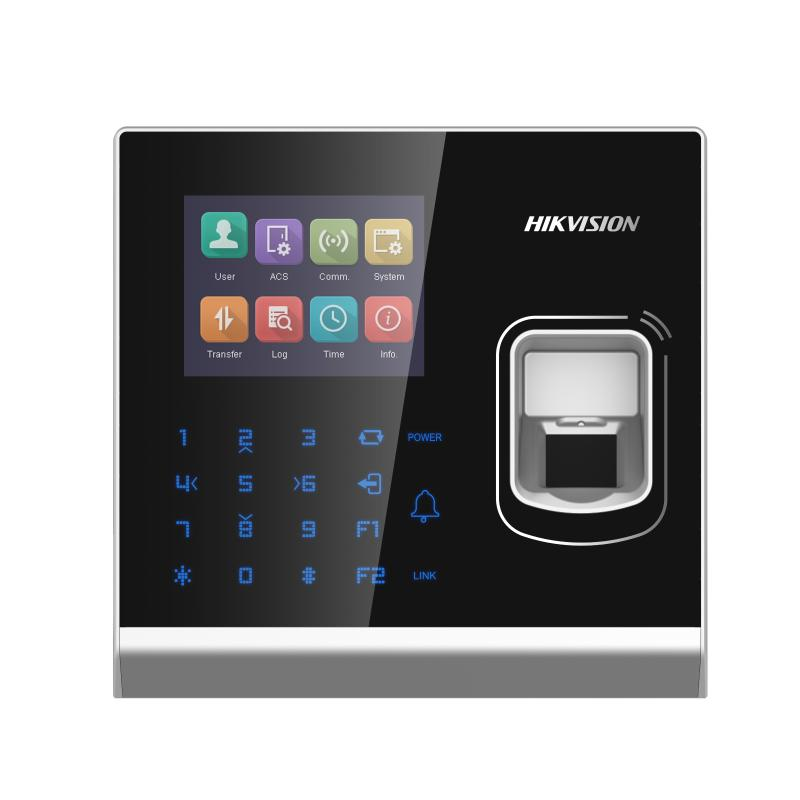

Pro Series Fingerprint Terminal

  • IP addresses conflicted alarm
  • Supports uploading real-time events
  • Gets offline events: Avoids events losing
  • Touch mode and blue light display technique for keypad
  • Stand-alone settings for the terminal
  • 2.8-inch LCD display screen to display the time, the date, etc.
  • Max. 100,000 valid card capacity, Max. 5000 fingerprint capacity, and Max. 300,000 access control events capacity
  • Communication via wired network (TCP/TP) and Wi-Fi
  • Supports ISUP5.0 protocol for public network communication
  • Supports multiple door opening modes (card, card + password, fingerprint, exit button, etc.)
  • Supports RS-485 and Wiegand (26/34) communication for connecting the external card reader
  • Applies authentications from the client to the device
  • Supports Wiegand (26/34) interface and RS-485 interface for accessing the controller
  • Tampering detection, unlocking overtime alarm, invalid card swiping over times alarm, forced opening door alarm, and duress card alarm
  • Creates dismiss code for dismiss alarm
  • Accurate data and time display provided by built-in electronic clock and watchdog program to ensure the basic function of the terminal
  • Data can be permanently saved after power-off
  • Supports EM card reading

Especificación
  • Sistema
  • Sistema operativoLinux
  • pantalla
  • Tamaño2.8-inch
  • Resolución320 × 240
  • TipoDisplay screen
  • Audio
  • Salida de audioLoudspeaker
  • Red
  • Red cableada100 M/1000 M self-adaptive
  • Wi-FiSupport
  • Protocolo de comunicaciónTCP/IP
  • Interfaz
  • Interfaz de red1
  • RS-4851
  • Wiegand1
  • Salida de cerradura1
  • Botón de salida1
  • Entrada de contacto de puerta1
  • Entrada I/O2
  • Salida I/O1
  • Tamper1
  • USB1
  • Capacidad
  • Capacidad de tarjetas100,000
  • Capacidad de huella digital5000
  • Capacidad de eventos300,000
  • Autenticación
  • Tipo de tarjetaEM card
  • Frecuencia de lectura de tarjeta125 KHz
  • Distancia de lectura de tarjeta< 1 s
  • Duración de lectura de tarjeta0 to 5 cm
  • General
  • Fuente de alimentación12 VDC/2 A
  • Temperatura de trabajo-30 °C to 60 °C (-22 °F to 140 °F)
  • Humedad de trabajo10% to 90%
  • Dimensiones137 mm x 142 mm x 35 mm (5.4" × 5.6" × 1.4")
Especificación
