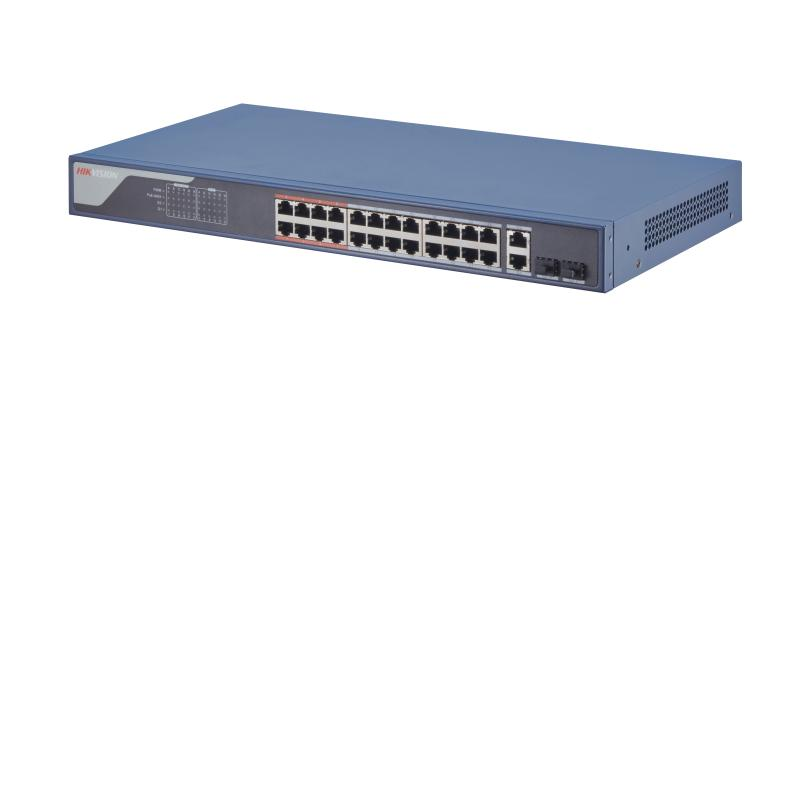

24 Port Fast Ethernet Smart POE Switch

24 × 100 Mbps PoE RJ45 port, 2 × gigabit combo.
IEEE 802.3at/af standard for PoE ports.
Network topology management, alarm push, network health monitor.
6 KV surge protection for PoE ports.
AF/AT camera can reach up to 300 m in extend mode.

View Less

Ficha Técnica

Modelos disponibles:

DS-3E1326P-SI

EOL

Especificación
Resources
Accesorios

Ficha Técnica

General
CarcasaMetal material
Peso neto2.83 kg (6.24 lb)
Peso bruto3.33 kg (7.34 lb)
Dimensiones (W x H x D)440.00 mm × 44.00 mm × 221.00 mm (17.32'' × 1.73'' × 8.70'')
Temperatura de funcionamiento0 °C to 45 °C (0 °F to 113 °F)
Temperatura de almacenamiento-40 °C to 85 °C (-40 °F to 185 °F)
Condiciones de humedad5% to 95% (no condensation)
Humedad relativa5% to 95% (no condensation)
Fuente de alimentación100-240 VAC, 50/60 Hz, Max. 6.5 A
Modo de instalaciónRack (equipped with mounting ears)
Max. El consumo de energía400 W
Consumo de energía en inactivo10 W
Surge Protection6 KV

Parámetros de red
Puertos24 × 10/100 Mbps PoE port,2 × Gigabit combo
Tabla de direcciones MAC16 K
Capacidad de conmutación14.8 Gbps
Tasa de reenvío de paquetes11.01 Mpps
Caché interna4 Mbits

Fuente de alimentación PoE
PoE StandardIEEE 802.3af,IEEE 802.3at
Pin de alimentación PoE8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-);
Puerto PoEPoE: Ports 1 to 24
Max. Puerto de alimentación30 W
PoE Power Budget370 W

Función de software
Largo alcancePorts 1 to 24: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port IsolationPorts 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE WatchdogPorts 1 to 24: auto detect and restart the cameras that do not respond.
QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode.
Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device.
System MaintenanceRemote upgrade, default parameters recovery, logs viewing, basic network parameters configuration, import and export configuration, time sync
Port Rate-Limiting Port rate-limiting is used for port bandwidth adjustment to prevent network congestion.
Storm ControlStorm control is used to prevent switch ports from being blocked by broadcast or multicast storms in the LAN, which may affect network communication. Support port rate limiting based on broadcast, multicast, and unknown unicast packets.

Certificaciones
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015)
SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
QuímicaCE-RoHS (201165EU); WEEE (201219EU); Reach (Regulation (EC) No.19072006)
