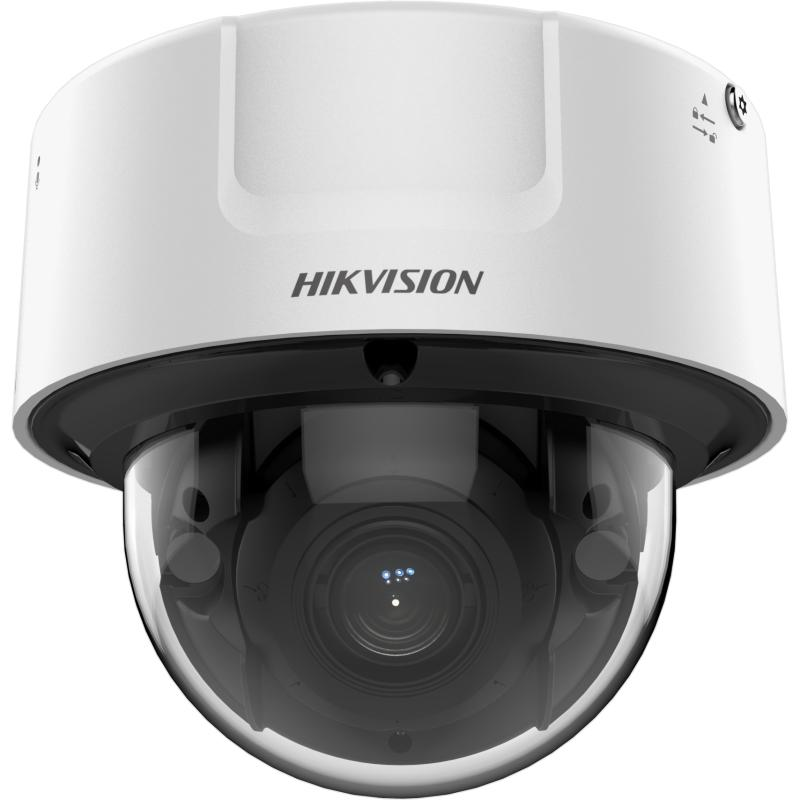

4MP DeepinView Indoor Moto Varifocal Dome Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via DarkFighter technology
Clear imaging against strong back light due to 140 dB WDR technology
Efficient H.265+ compression technology to save bandwidth and storage
5 streams to meet a wide variety of applications
Vandal proof (IK10)

View Less

Modelos disponibles:

iDS-2CD7146G0-IZS(2.8-12mm)/Retail

iDS-2CD7146G0-IZS(Retail)

EOL

Especificación
Resources
Accesorios

Cámara
Sensor de imagen1/1.8" Progressive Scan CMOS
Max. Resolución2560 × 1440
Iluminación mínimaColor: 0.0005 Lux @ (F1.2, AGC ON); B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
Tiempo de obturación1 s to 1/100,000 s
Día y NocheIR cut filter Blue glass module to reduce ghost phenomenon
Ajuste de ánguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lente
Focal Length & FOV2.8 to 12 mm, horizontal FOV: 114.5° to 41.8°, vertical FOV: 59.3° to 23.6°, diagonal FOV: 141.1° to 48° 8 to 32 mm, horizontal FOV: 42.5° to 15.1°, vertical FOV: 23.3° to 8.64°, diagonal FOV: 49.6° to 17.3°
EnfoqueAuto, semi-auto, manual
Iris TypeP-iris
Apertura2.8 to 12 mm: F1.2 to 2.5 8 to 32 mm: F1.7 to F1.73

DORI
DORIWide: 2.8 to 12 mm: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m 8 to 32 mm: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15 m Tele: 2.8 to 12 mm: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 m 8 to 32 mm: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Iluminador
Tipo de luz suplementariaIR
Rango de luz suplementaria2.8 to 12 mm: 30 m 8 to 32 mm: 50 m
Luz de suplemento inteligenteYes
IR Wavelength850 nm

Vídeo
Main stream50 Hz: 50 fps (2560 × 1440, 1920 × 1080, 1280× 720) 60 Hz: 60 fps (2560 × 1440, 1920 × 1080, 1280× 720)
Sub-stream50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Fourth Stream50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Fifth Stream50 Hz: 25 fps (704 × 480, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
Compresión de videoH.265+/H.265/H.264+/H.264/MJPEG
Vídeo bitrate32 Kbps to 8 Mbps
Tipo H.264Baseline Profile/Main Profile/High Profile
Tipo H.265Baseline Profile/Main Profile/High Profile
Bit Rate ControlCBR/VBR
Codificación de video escalable (SVC)H.264 and H.265 encoding
Región de interés (ROI)4 fixed regions for main stream, sub-stream, third stream, fourth stream and fifth stream
Recorte objetivoYes

Audio
Tipo de audioMono sound
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
Velocidad de bits de audio64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC) /8 to 320 Kbps (MP3)
Frecuencia de muestreo de audio8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Filtro de ruido ambientalYes

Red
ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Vista en vivo simultáneaUp to 20 channels
APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Usuario/operadorUp to 32 users 3 user levels: administrator, operator, and user
SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Almacenamiento en redNAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ClienteiVMS-4200, Hik-Connect
Navegador webPlug-in required live view: IE9+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+ Not recommended: Safari 11+, Edge

Imagen
Interruptor de parámetros de imagenYes
Configuración de imagenSaturation, brightness, contrast, sharpness, white balance, and AGC adjustable by client software or web browser
Interruptor día/nocheDay, Night, Auto, Schedule, Alarm Trigger
Wide Dynamic Range (WDR)140 dB
Mejora de la imagenBLC, HLC, Defog, 3D DNR
SNR≥ 52 dB
Máscara de privacidad8 programmable polygon privacy masks, mask color or mosaic configurable
Image StabilizationEIS
Superposición de imagenLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interfaz
Salida de Vídeo1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio1 input (line in), 1 output (line out), 3.5 mm connector,1 built-in microphone
Alarma1 input, 1 output (max. 24 VDC, 1 A)
RS-4851 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset KeyYes
Salida de alimentación12 VDC, max. 100 mA

Evento
Evento BásicoMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis
Evento inteligenteLine crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection
LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture

Deep Learning Function
Detección de tipo multi-objetivoSupports simultaneous detection and capture of human body, face and vehicle;Gets 7 face features, 13 human body features and 2 vehicle features
Captura de la cara1. Detects up to 60 faces simultaneously 2. Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30° 3. Uploads face with background and closed-up face pictures
Comparación de rostrosUp to 10 face libraries. Up to 30,000 faces for each library. 150,000 faces in total. Supports face library encryption
Protección perimetralLine crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General
alimentación12 VDC± 20%, 1.02 A, max. 12.4 W, two-core terminal block 24 VAC± 20%, 0.49 A, max. 11.8 W, two-core terminal block PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.22 A to 0.29 A, max. 12.5 W
DimensiónØ140.5 × 122.6 mm (Ø5.5" × 4.8")
Dimensión del paquete244 × 174 × 173 mm (9.6" × 6.9" × 6.8")
Approx. 875 g (1.93 lb.)
Con peso del paqueteApprox. 1415 g (3.11 lb.)
Condiciones de almacenaje-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
Condiciones de inicio y funcionamiento-30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing)
Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Función generalHeartbeat, mirror, password protection, watermark, privacy mask, IP address filter, one-key reset, five streams

Certificaciones
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
SeguridadUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)
AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtecciónIK10 (IEC 62262:2002)
OtrosPVC FREE
