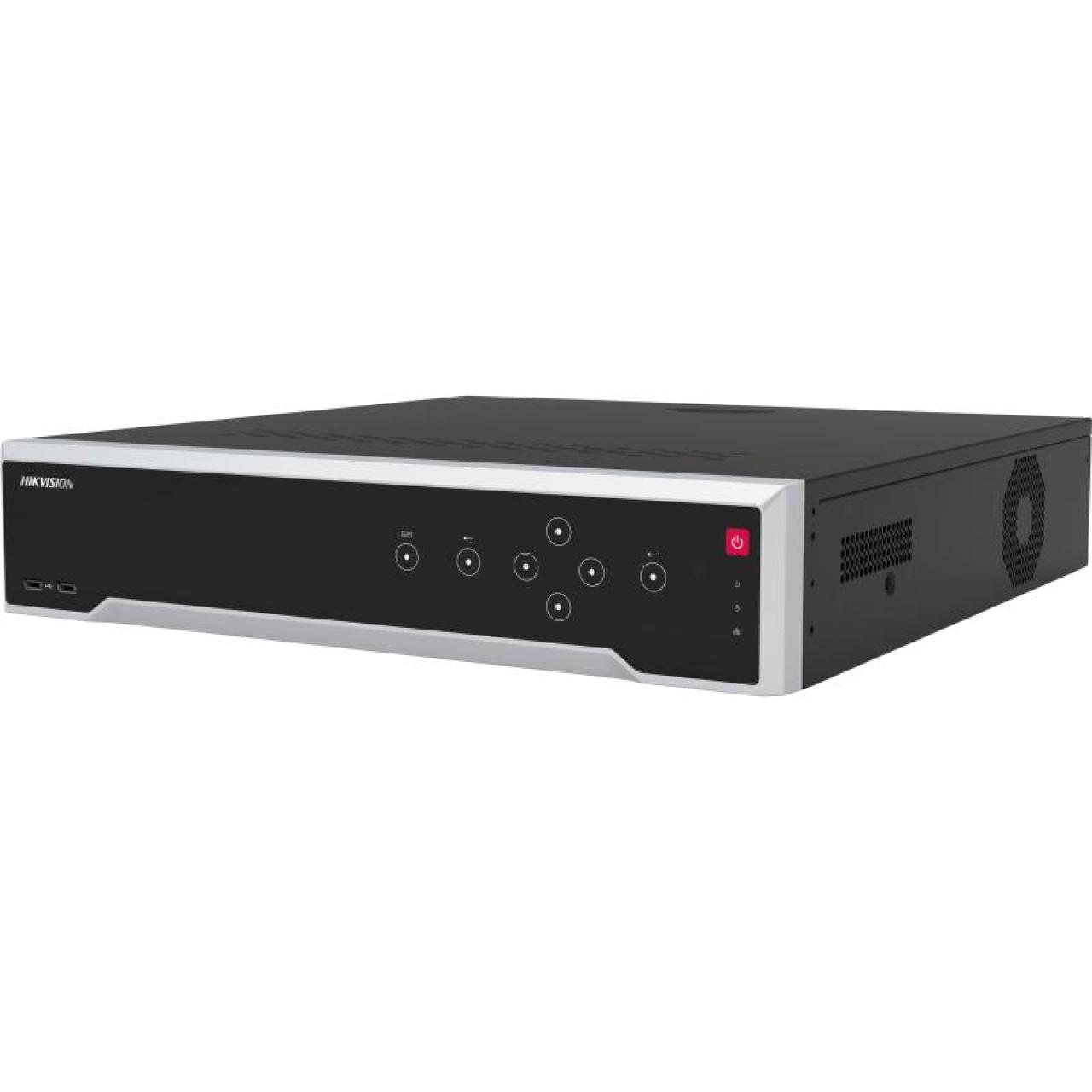

16-ch 2U 4K NVR

Up to 16 channel IP cameras can be connected
Up to 12 MP high-definition live view, storage and playback
Up to 256 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected
2 HDMI (different source) and 2 VGA (different source) interfaces
8 HDD can be used for continuous video recording
Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage, effectively avoids data loss risks

View Less

Ficha Técnica

DS-8616NI-I8(B)

Especificación
Resources
Accesorios

Ficha Técnica

Video and Audio
Entrada de vídeo IP16-ch, Up to 12 MP resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Incoming Bandwidth256 Mbps
Incoming Bandwidth (RAID Mode)200 Mbps
Outgoing Bandwidth256 Mbps
Outgoing Bandwidth (RAID mode)200 Mbps
HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz,VGA1: 2K (2560 × 1440)/60Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI 2 Output1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, 2-ch, RCA (2.0Vp-p, 1 KΩ)
VGA 1 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA 2 Output1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Video Output ModeHDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Salida de audio2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω)
Video Monitoring SoftwarePre-Loaded Hikvision Software

Descodificación
Formato de decodificaciónH.265+/H.265/H.264+/H.264/MPEG4
Resolución de grabación32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
Reproducción síncrona16-ch
Decodificación1-ch@32 MP (30 fps)/2-ch@12 MP (20 fps)/4-ch@8 MP (25 fps)/8-ch@4 MP (30 fps)/16-ch@1080p (30 fps)
Dual-Stream RecordingYes
Stream TypeVideo, Video & Audio
Compresión de audioG.711ulaw/G.711alaw/G.722/G.726

Red
Protocolo de redTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTP, RTSP, RTCP, SADP, SNTP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Conexión remota128
Interfaz de red2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

RAID
RAID TypeRAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

Auxiliary Interface
Interfaz de serieRS-232; RS-485; Keyboard
SATA8 SATA interfaces
eSATA1 eSATA interface
CapacidadUp to 10 TB capacity for each disk
Alarma E/S16/4
Interfaz USBFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General
Fuente de alimentación100 to 240 VAC, 50 to 60 Hz 200 W
Consumo≤ 30 W
Temperatura de trabajo-10 °C to 55 °C (14 °F to 131 °F)
Condiciones de Humedad10 to 90 %
Chassis2U
Dimensión (W × D × H)445 × 470 ×90 mm (17.5"× 18.5" × 3.5")
≤ 8 kg (17.6 lb)
