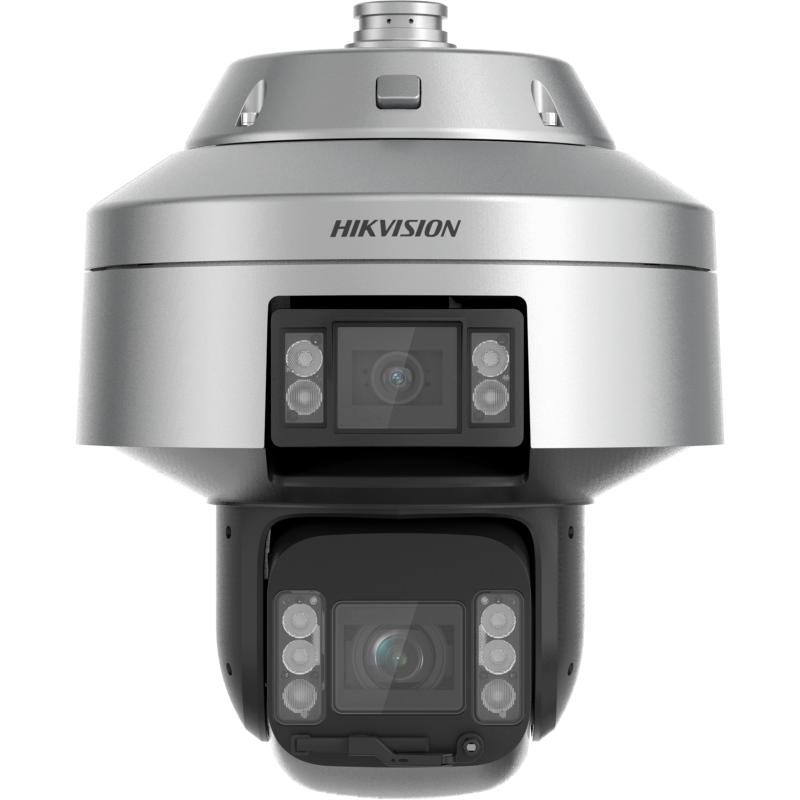

7-inch 4K 5X DarkFighter IR Network Speed

Multi-target-type detection: support automatic person detection and quick capture for face comparison, and link face and human body
Smart events: The panoramic channel arms the detection area and links the PTZ channel to track targets and output alarms
Face capture: The PTZ channel locks onto and captures detected face
Tracking takeover: In smart events, when the target moves out of the panoramic view, the PTZ channel continues to track the target in a larger area
Support simultaneous capture, linked output, and feature abstraction of face and human body
Adjustable pan and tilt position for both channels. Panoramic channel: pan 0 to 360° endless, tilt 0 to 30°. PTZ channel: pan 0 to 330°, tilt -10° to 90°
Auto calibration: Once calibrated, no need for calibration at other PTZ positions
Built-in memory card slot
Easy-to-install all-in-one design with one IP address, one network cable, one power supply, and no server

View Less

Ficha Técnica

Modelos disponibles:

iDS-2SK7184MXS-D(C5F2)(T2)

iDS-2SK7184MXS-D

EOL

Especificación
Resources
Accesorios

Ficha Técnica

Cámara
Sensor de imagen[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.2" progressive scan CMOS
Iluminación mínima[Panoramic channel]: Color: 0.0005 Lux @(F1.0, AGC ON), B/W: 0.0001 Lux @(F1.0, AGC ON); [PTZ channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON), 0 lux with IR
Velocidad de obturación1 to 1/30000 s
Obturador lentoyes
Día y NocheICR
Zoom[panoramic channel] no; [PTZ channel] 16x
Zoom óptico[panoramic channel] no; [PTZ channel] 5 ×
Ganar controlauto;manual
Max. Resolución[panoramic channel] 2560 × 1440, [PTZ channel] 3840 × 2160

Lente
Enfoquesemi-auto,manual,auto
Longitud focal[Panoramic channel] 6 mm; [PTZ channel] 10 to 50 mm
Velocidad del Zoom[PTZ channel] Approx. 1.1 s
FOV[Panoramic channel] horizontal field of view: 58.4°, vertical field of view: 31°, Diagonal field of view: 68.7°; [PTZ channel] horizontal field of view: 36° to 13.1°, vertical field of view: 20.3° to 7.3°, diagonal field of view: 41° to 14.85°
Apertura[panoramic channel] F1.0; [PTZ channel] F1.6

Iluminador
Distancia de luz blanca[panoramic channel] up to 50 m [PTZ channel] up to 20 m
Rango de luz suplementaria[PTZ channel] up to 200 m
Luz de suplemento inteligenteyes

PTZ
Rango de movimiento (pan)[panoramic channel] 0 to 360°, [PTZ channel] 0 to 330°
Rango de movimiento (tilt)[panoramic channel] 0 to 30°, [PTZ channel] -10° to 90°
Velocidad de movimiento horizontal (pan)[panoramic channel] pan speed: configurable from 0.1° to 100°/s; [PTZ channel] pan speed: configurable from 0.1° to 210°/s
Velocidad de vertical (tilt)[panoramic channel] tilt speed: configurable from 0.1° to 25°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s
Proportional Pan[panoramic channel]: no; [PTZ channel]: yes
Preajustes300
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans
Memoria de apagadoyes
Acción del parquepreset,patrol scan,auto scan,pattern scan
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Congelación preestablecidayes
Tarea programadadome reboot,preset,patrol scan,dome adjust,pattern scan,aux output,auto scan
Detección de excepcionesIP address conflict;HDD full;illegal login;network disconnected;存储器错误

Vídeo
Stream Typemain stream, sub-stream, third stream
Main stream[panoramic channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz：30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream[panoramic channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[panoramic channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoH.265,H.264,MJPEG
Vídeo bitrate32 to 16384 kbps
Tipo H.264baseline profile, main profile, high profile
Tipo H.265main profile
Codificación de video escalable (SVC)yes
Región de interés (ROI)fixed region
Recorte objetivono

Audio
Compresión de audioG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audioMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Frecuencia de muestreo de audioMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Filtro de ruido ambientalyes

Características inteligentes
Abstracción de funcionesface feature abstraction, human body feature abstraction, vehicle feature abstraction
Registro inteligenteANR;Dual-VCA
Codificación InteligenteH.265+;H.264+;ROI;SVC

Red
Almacenamiento en redNAS (NFS, SMB/ CIFS),ANR
ProtocolosTCP/IP,SMTP,RTSP,FTP,IGMP,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
APIOpen-ended API,Open Network Video Interface, ISAPI,ISUP,Hik-Connect,Hikvision SDK,Third-party management platform
Vista en vivo simultáneaUp to 20 channels
Usuario/operadorUp to 32 users. 3 levels: Administrator, Operator and User
Seguridad802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
ClienteiVMS-4200
Navegador webIE10+, Chrome57+, Firefox52+, Safari12+

Imagen
Interruptor día/nocheday,night,auto,scheduled-switch
Mejora de la imagenBLC,HLC,3D DNR
Wide Dynamic Range (WDR)120 dB WDR
Desempañaryes
Image Stabilizationyes
Exposición regionalyes
Enfoque regionalyes
Configuración de imagensaturation, brightness, contrast, sharpness
Interruptor de parámetros de imagenyes
Máscara de privacidadpolygon region ,mosaic mask ,up to 24 masks,mask color configurable
SNR≥52dB

Interfaz
Ethernet Interfaceself-adaptive,1000 M Ethernet Interface,RJ45
Almacenamiento a bordosupport microSD/microSDHC/microSDXC cards, up to 256 GB
Alarma2 alarm inputs
Salida de alarma1 alarm output
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Salida de audio1 audio output, line level, impedance: 600 Ω
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Reiniciaryes

Evento
Evento Básicoalarm input,audio exception,exception,video tampering alarm,motion detection,alarm output
Evento inteligenteregion entrance detection,line crossing detection,intrusion detection,region exiting detection
Seguimiento inteligenteevent tracking,panorama tracking
Linkage upload to FTP,sending email,notify surveillance center,patrol scan,preset,pattern scan,memory card video recording,alarm output

Deep Learning Function
Multi-Target-Type DetectionSupport face, human body, and vehicle capture, track and grade the target, and output the best capture picture; support face and human body feature analysis, modeling and comparison
Comparación de rostrosyes

General
Función generalpassword protection,mirror,watermark,IP address filter
alimentación36 VDC ± 25%
Consumo de energía y corrienteMax. 70 W
Operating Condition-40℃ to 70℃, humidity lower than 95%RH
Limpiador de lente[panoramic channel]: no; [PTZ channel]: yes
Demistayes
MaterialADC12, PC+10%GF
DimensiónØ 320 mm × 393 mm (Ø 12.6" × 15.47")
Approx. 10.6 kg (23.37 lb.)
Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones
ProtecciónIP66

Cámara

Sensor de imagen

[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.2" progressive scan CMOS

Iluminación mínima

[Panoramic channel]: Color: 0.0005 Lux @(F1.0, AGC ON), B/W: 0.0001 Lux @(F1.0, AGC ON); [PTZ channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON), 0 lux with IR

Velocidad de obturación

1 to 1/30000 s

Obturador lento

yes

Día y Noche

ICR

Zoom

[panoramic channel] no; [PTZ channel] 16x

Zoom óptico

[panoramic channel] no; [PTZ channel] 5 ×

Ganar control

auto;manual

Max. Resolución

[panoramic channel] 2560 × 1440, [PTZ channel] 3840 × 2160

Lente

Enfoque

semi-auto,manual,auto

Longitud focal

[Panoramic channel] 6 mm; [PTZ channel] 10 to 50 mm

Velocidad del Zoom

[PTZ channel] Approx. 1.1 s

FOV

[Panoramic channel] horizontal field of view: 58.4°, vertical field of view: 31°, Diagonal field of view: 68.7°; [PTZ channel] horizontal field of view: 36° to 13.1°, vertical field of view: 20.3° to 7.3°, diagonal field of view: 41° to 14.85°

Apertura

[panoramic channel] F1.0; [PTZ channel] F1.6

Iluminador

Distancia de luz blanca

[panoramic channel] up to 50 m [PTZ channel] up to 20 m

Rango de luz suplementaria

[PTZ channel] up to 200 m

Luz de suplemento inteligente

yes

PTZ

Rango de movimiento (pan)

[panoramic channel] 0 to 360°, [PTZ channel] 0 to 330°

Rango de movimiento (tilt)

[panoramic channel] 0 to 30°, [PTZ channel] -10° to 90°

Velocidad de movimiento horizontal (pan)

[panoramic channel] pan speed: configurable from 0.1° to 100°/s; [PTZ channel] pan speed: configurable from 0.1° to 210°/s

Velocidad de vertical (tilt)

[panoramic channel] tilt speed: configurable from 0.1° to 25°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s

Proportional Pan

[panoramic channel]: no; [PTZ channel]: yes

Preajustes

300

Escaneo de patrulla

8 patrols, up to 32 presets for each patrol

Patrón de escaneo

4 pattern scans

Memoria de apagado

yes

Acción del parque

preset,patrol scan,auto scan,pattern scan

Posicionamiento 3D

yes

Pantalla de estado de PTZ

yes

Congelación preestablecida

yes

Tarea programada

dome reboot,preset,patrol scan,dome adjust,pattern scan,aux output,auto scan

Detección de excepciones

IP address conflict;HDD full;illegal login;network disconnected;存储器错误

Vídeo

Stream Type

main stream, sub-stream, third stream

Main stream

[panoramic channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz：30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)

Sub-stream

[panoramic channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)

Third Stream

[panoramic channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Compresión de vídeo

H.265,H.264,MJPEG

Vídeo bitrate

32 to 16384 kbps

Tipo H.264

baseline profile, main profile, high profile

Tipo H.265

main profile

Codificación de video escalable (SVC)

yes

Región de interés (ROI)

fixed region

Recorte objetivo

Audio

Compresión de audio

G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM

Velocidad de bits de audio

MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps

Frecuencia de muestreo de audio

MP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz

Filtro de ruido ambiental

yes

Características inteligentes

Abstracción de funciones

face feature abstraction, human body feature abstraction, vehicle feature abstraction

Registro inteligente

ANR;Dual-VCA

Codificación Inteligente

H.265+;H.264+;ROI;SVC

Red

Almacenamiento en red

NAS (NFS, SMB/ CIFS),ANR

Protocolos

TCP/IP,SMTP,RTSP,FTP,IGMP,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP

API

Open-ended API,Open Network Video Interface, ISAPI,ISUP,Hik-Connect,Hikvision SDK,Third-party management platform

Vista en vivo simultánea

Up to 20 channels

Usuario/operador

Up to 32 users. 3 levels: Administrator, Operator and User

Seguridad

802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption

Cliente

iVMS-4200

Navegador web

IE10+, Chrome57+, Firefox52+, Safari12+

Imagen

Interruptor día/noche

day,night,auto,scheduled-switch

Mejora de la imagen

BLC,HLC,3D DNR

Wide Dynamic Range (WDR)

120 dB WDR

Desempañar

yes

Image Stabilization

yes

Exposición regional

yes

Enfoque regional

yes

Configuración de imagen

saturation, brightness, contrast, sharpness

Interruptor de parámetros de imagen

yes

Máscara de privacidad

polygon region ,mosaic mask ,up to 24 masks,mask color configurable

SNR

≥52dB

Interfaz

Ethernet Interface

self-adaptive,1000 M Ethernet Interface,RJ45

Almacenamiento a bordo

support microSD/microSDHC/microSDXC cards, up to 256 GB

Alarma

2 alarm inputs

Salida de alarma

1 alarm output

Audio

1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%

Salida de audio

1 audio output, line level, impedance: 600 Ω

RS-485

Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Reiniciar

yes

Evento

Evento Básico

alarm input,audio exception,exception,video tampering alarm,motion detection,alarm output

Evento inteligente

region entrance detection,line crossing detection,intrusion detection,region exiting detection

Seguimiento inteligente

event tracking,panorama tracking

Linkage

upload to FTP,sending email,notify surveillance center,patrol scan,preset,pattern scan,memory card video recording,alarm output

Deep Learning Function

Multi-Target-Type Detection

Support face, human body, and vehicle capture, track and grade the target, and output the best capture picture; support face and human body feature analysis, modeling and comparison

Comparación de rostros

yes

General

Función general

password protection,mirror,watermark,IP address filter

alimentación

36 VDC ± 25%

Consumo de energía y corriente

Max. 70 W

Operating Condition

-40℃ to 70℃, humidity lower than 95%RH

Limpiador de lente

[panoramic channel]: no; [PTZ channel]: yes

Demista

yes

Material

ADC12, PC+10%GF

Dimensión

Ø 320 mm × 393 mm (Ø 12.6" × 15.47")

Approx. 10.6 kg (23.37 lb.)

Idioma

33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

Certificaciones

Protección

IP66

Cámara

Sensor de imagen[Panoramic channel]: 1/1.8" progressive scan CMOS, [PTZ channel]: 1/1.2" progressive scan CMOS
Iluminación mínima[Panoramic channel]: Color: 0.0005 Lux @(F1.0, AGC ON), B/W: 0.0001 Lux @(F1.0, AGC ON); [PTZ channel] Color: 0.0005 Lux @(F1.6, AGC ON), B/W: 0.0001 Lux @(F1.6, AGC ON), 0 lux with IR
Velocidad de obturación1 to 1/30000 s
Obturador lentoyes
Día y NocheICR
Zoom[panoramic channel] no; [PTZ channel] 16x
Zoom óptico[panoramic channel] no; [PTZ channel] 5 ×
Ganar controlauto;manual
Max. Resolución[panoramic channel] 2560 × 1440, [PTZ channel] 3840 × 2160

Lente

Enfoquesemi-auto,manual,auto
Longitud focal[Panoramic channel] 6 mm; [PTZ channel] 10 to 50 mm
Velocidad del Zoom[PTZ channel] Approx. 1.1 s
FOV[Panoramic channel] horizontal field of view: 58.4°, vertical field of view: 31°, Diagonal field of view: 68.7°; [PTZ channel] horizontal field of view: 36° to 13.1°, vertical field of view: 20.3° to 7.3°, diagonal field of view: 41° to 14.85°
Apertura[panoramic channel] F1.0; [PTZ channel] F1.6

Iluminador

Distancia de luz blanca[panoramic channel] up to 50 m [PTZ channel] up to 20 m
Rango de luz suplementaria[PTZ channel] up to 200 m
Luz de suplemento inteligenteyes

PTZ

Rango de movimiento (pan)[panoramic channel] 0 to 360°, [PTZ channel] 0 to 330°
Rango de movimiento (tilt)[panoramic channel] 0 to 30°, [PTZ channel] -10° to 90°
Velocidad de movimiento horizontal (pan)[panoramic channel] pan speed: configurable from 0.1° to 100°/s; [PTZ channel] pan speed: configurable from 0.1° to 210°/s
Velocidad de vertical (tilt)[panoramic channel] tilt speed: configurable from 0.1° to 25°/s; [PTZ channel] tilt speed: configurable from 0.1° to 150°/s
Proportional Pan[panoramic channel]: no; [PTZ channel]: yes
Preajustes300
Escaneo de patrulla8 patrols, up to 32 presets for each patrol
Patrón de escaneo4 pattern scans
Memoria de apagadoyes
Acción del parquepreset,patrol scan,auto scan,pattern scan
Posicionamiento 3Dyes
Pantalla de estado de PTZyes
Congelación preestablecidayes
Tarea programadadome reboot,preset,patrol scan,dome adjust,pattern scan,aux output,auto scan
Detección de excepcionesIP address conflict;HDD full;illegal login;network disconnected;存储器错误

Vídeo

Stream Typemain stream, sub-stream, third stream
Main stream[panoramic channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz：30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) [PTZ channel] 50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-stream[panoramic channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream[panoramic channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Compresión de vídeoH.265,H.264,MJPEG
Vídeo bitrate32 to 16384 kbps
Tipo H.264baseline profile, main profile, high profile
Tipo H.265main profile
Codificación de video escalable (SVC)yes
Región de interés (ROI)fixed region
Recorte objetivono

Audio

Compresión de audioG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audioMP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Frecuencia de muestreo de audioMP2L2: 16 kHz, 32 kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Filtro de ruido ambientalyes

Características inteligentes

Abstracción de funcionesface feature abstraction, human body feature abstraction, vehicle feature abstraction
Registro inteligenteANR;Dual-VCA
Codificación InteligenteH.265+;H.264+;ROI;SVC

Red

Almacenamiento en redNAS (NFS, SMB/ CIFS),ANR
ProtocolosTCP/IP,SMTP,RTSP,FTP,IGMP,Qos,RTCP,HTTPS,PPPoE,SNMP,NTP,RTP,UDP,DNS,HTTP,DHCP,Bonjour,802.1x,IPv4/IPv6,DDNS,ICMP,UPnP
APIOpen-ended API,Open Network Video Interface, ISAPI,ISUP,Hik-Connect,Hikvision SDK,Third-party management platform
Vista en vivo simultáneaUp to 20 channels
Usuario/operadorUp to 32 users. 3 levels: Administrator, Operator and User
Seguridad802.1X authenticated access,MAC address binding,Authenticated username and password,IP address filter,HTTPS encryption
ClienteiVMS-4200
Navegador webIE10+, Chrome57+, Firefox52+, Safari12+

Imagen

Interruptor día/nocheday,night,auto,scheduled-switch
Mejora de la imagenBLC,HLC,3D DNR
Wide Dynamic Range (WDR)120 dB WDR
Desempañaryes
Image Stabilizationyes
Exposición regionalyes
Enfoque regionalyes
Configuración de imagensaturation, brightness, contrast, sharpness
Interruptor de parámetros de imagenyes
Máscara de privacidadpolygon region ,mosaic mask ,up to 24 masks,mask color configurable
SNR≥52dB

Interfaz

Ethernet Interfaceself-adaptive,1000 M Ethernet Interface,RJ45
Almacenamiento a bordosupport microSD/microSDHC/microSDXC cards, up to 256 GB
Alarma2 alarm inputs
Salida de alarma1 alarm output
Audio1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Salida de audio1 audio output, line level, impedance: 600 Ω
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
Reiniciaryes

Evento

Evento Básicoalarm input,audio exception,exception,video tampering alarm,motion detection,alarm output
Evento inteligenteregion entrance detection,line crossing detection,intrusion detection,region exiting detection
Seguimiento inteligenteevent tracking,panorama tracking
Linkage upload to FTP,sending email,notify surveillance center,patrol scan,preset,pattern scan,memory card video recording,alarm output

Deep Learning Function

Multi-Target-Type DetectionSupport face, human body, and vehicle capture, track and grade the target, and output the best capture picture; support face and human body feature analysis, modeling and comparison
Comparación de rostrosyes

General

Función generalpassword protection,mirror,watermark,IP address filter
alimentación36 VDC ± 25%
Consumo de energía y corrienteMax. 70 W
Operating Condition-40℃ to 70℃, humidity lower than 95%RH
Limpiador de lente[panoramic channel]: no; [PTZ channel]: yes
Demistayes
MaterialADC12, PC+10%GF
DimensiónØ 320 mm × 393 mm (Ø 12.6" × 15.47")
Approx. 10.6 kg (23.37 lb.)
Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
