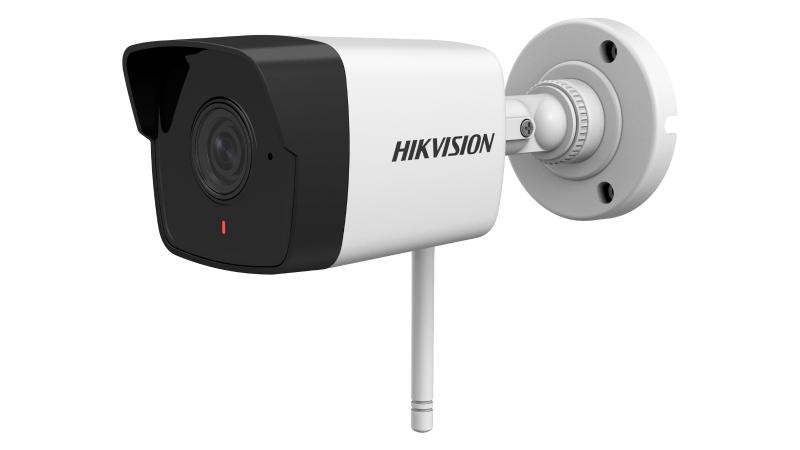

2 MP Outdoor Fixed Bullet Network Camera with Build-in Mic

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to DWDR technology
Up to 128 GB SD card slot for storage
Wi-Fi connection with Hik-Connect directly is not possible
Water and dust resistant (IP66)

View Less

Modelos disponibles:

DS-2CV1021G0-IDW1(2.8mm)(D)

DS-2CV1021G0-IDW1(4mm)(D)

DS-2CV1021G0-IDW

EOL

Especificación
Resources
Accesorios

Características inteligentes
Activador de alarmaMotion detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Cámara
Sensor de imagen1/2.7" Progressive Scan CMOS
Iluminación mínimaColor: 0.028 Lux @ (F2.0, AGC ON)
Velocidad de obturación1/3 s to 1/100,000 s
Obturador lentoYes
Ajuste de ánguloPan: 0° to 360°, tilt: -90° to 90°, rotate: 0° to 90°
WDRDWDR
Día y NocheIR Cut Filter

Lente
AperturaF2.0
EnfoqueFixed
FOV2.8 mm, horizontal FOV: 114.5°, vertical FOV: 62°, diagonal FOV: 135.5° 4 mm, horizontal FOV: 86°, vertical FOV: 46.5°, diagonal FOV: 102.5°
Montura del lenteM12
Longitud focal2.8/4 mm

Red
Almacenamiento en redSupport micro SD/SDHC/SDXC card (max. 256 GB), local storage and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Activador de alarmaMotion detection, illegal login
ProtocolosTCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, RTP, RTSP, NTP, UPnP, IGMP, IPv6, UDP, QoS, Bonjour
APIISAPI
Vista en vivo simultáneaUp to 6 channels
Usuario/operadorUp to 32 users 3 levels: Administrator, Operator and User
ClienteWired network: Hik-Connect, iVMS-4200 Wi-Fi: iVMS-4200 *Wi-Fi connection with Hik-Connect directly is not possible.
Navegador webPlug-in required live view: IE8, IE9, IE10, IE11 Local service: Chrome 57.0+, Firefox 52.0+
Función generalAnti-flicker, heartbeat, mirror, password protection, password reset via e-mail
Versión del firmwareV5.5.101

Vídeo
Max. Resolución1920 × 1080

Audio
Filtro de ruido ambientalYes
Frecuencia de muestreo de audio8 kHz/16 kHz

Interfaz
Botón de reinicioYes
On-board storageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Interfaz de comunicación1 RJ45 10M/100M self-adaptive Ethernet port
Audio1 Built-in mic, mono sound

Imagen
Max. Resolución1920 × 1080
Main stream50Hz: 25 fps (1920 × 1080, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-stream50Hz: 25 fps (640 × 360) 60Hz: 30 fps (640 × 360)
Mejora de la imagenBLC, HLC, 3D DNR
Interruptor día/nocheDay, night, auto, scheduled
Configuración de imagenSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

General
Condiciones de operación-30 °C to +60 °C (-22°F to +140 °F), humidity 95% or less (non-condensing)
Fuente de alimentación12 VDC ± 25%, Ø5.5 mm coaxial power plug
Power Consumption and Current12 VDC, 0.4 A, max. 5 W
MaterialFront cover: metal, back cover: plastic
DimensionesCamera: 177.6 mm × 67.8 mm × 66.2 mm (7" × 2.7" × 2.6") With package: 264 mm × 129 mm × 120 mm (10.4" × 5.1" × 4.7")
Camera: approx. 270 g (0.6 lb.) With package: approx. 470 g (1 lb.)

Certificaciones
Protección Ingress protection: IP66 (IEC 60529-2013)

Compresión estándar
Compresión de vídeoMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264
H.264 +Main stream supports
H.265 +Main stream supports
Tipo H.264Baseline Profile/Main Profile
Tipo H.265Baseline Profile
Vídeo bitrate32 Kbps to 8 Mbps
Compresión de audioG.711/G.722.1/G.726/MP2L2/PCM
Velocidad de bits de audio64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32 to 160Kbps(MP2L2)

IR
Rango IRUp to 30 m
Longitud de onda850 nm

Wi-Fi (-W)
Wireless StandardsIEEE 802.11b/g/n
Rango de frecuencia2.4 GHz to 2.4835 GHz
Tasas de transferencia11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
Seguridad64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Channel Bandwidth20 MHz/40 MHz
Alcance inalámbricoUp to 80 m (The performance varies based on actual environment.)
Protocolos802.11b: CCK, DQPSK, DBPSK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK
